Ranger RCI-2950
Documentation Project

CBTricks.com

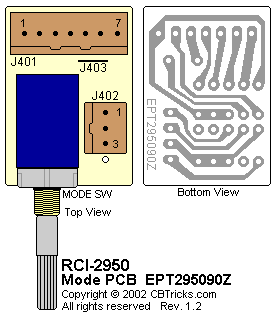

MODE PCB (EPT295090Z)
Schematic Diagram

Switch

Ref#

Description

MFR. Part No.



ROTARY SW, 6N

EWRT32053S

Connectors

Ref#

Description

MFR. Part No.

 J401

PCB CONN. SOCKET, 7P

EX07N41261

 J402

PCB CONN. SOCKET, 3P

EX07N41216

Jumper Wire

Ref#

Description

MFR. Part No.

J403

JUMPER WIRE 7x6x7mm

WX01070706
