Ranger RCI-2950
Documentation Project

CBTricks.com

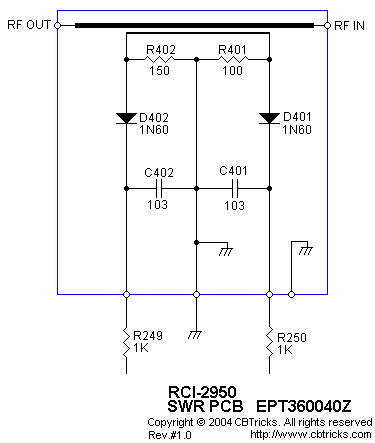

RCI-2950 VSWR P.C. BOARD EPT360040Z
Schematic Diagram




Copyright © 1998, 1999, 2000, 2001, 2002, 2003, 2004 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
