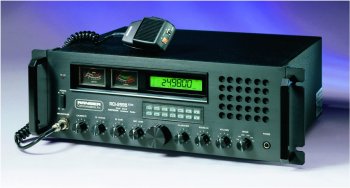

Picture Tour Of Radio

Factory Service Manual

Radio Modifications
     Clarifier Unlock

Diagrams
     Schematic Diagram (Courtesy of Rick Jackson Euro Radio Co)

Mic Wiring Info

Stock Mic Wiring
1. Ground Shield
2. Audio Yellow
3. Transmit Red
4. Receive Black
5. CH. Up White
6. CH. Down Blue

Turner 4-Wire MIC. Wiring
1. Ground Shield
2. Audio White
3. Transmit Black
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

Turner 6-Wire MIC. Wiring
1. Ground Shield & Red
2. Audio White
3. Transmit Blue
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

Astatic 4-Wire MIC. Wiring
1. Ground Shield
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

Astatic 6-Wire MIC. Wiring
1. Ground Shield & Blue
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C
