Ranger
(Texas Ranger) TR-966
Documentation Project
CBTricks.com
Clarifier
Mod Method 2
Also SEE:
Method
#1
| Method 2: | |
|
1.
|
First, remove power to the radio. Remove the bottom chassis cover of the radio. |
|
2.
|

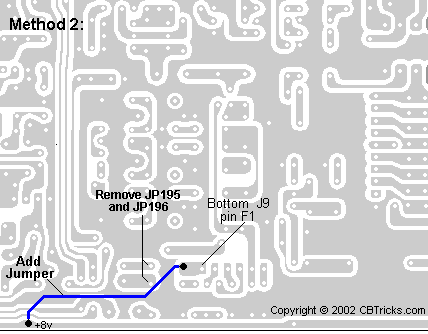

Remove JP195 and JP196. |
|
3.
|
Connect a jumper wire between +8V and J9 pin F1. |
|
4.
|
Perform an PLL alignment as shown below. |
| AM Frequency: Set radio to CH 1 AM RX mode. Clarifier control to center detent. |
Connect frequency counter to TP3. |
L20
|
16.27000 MHz ± 20 Hz |
| USB
Freq: Set radio to CH 1 USB mode. Clarifier control to center detent. |
Connect frequency counter to TP3. |
L21 |
16.27250 MHz ± 20 Hz |
| LSB Freq: Set radio to CH 1 LSB mode. Clarifier control to center detent. |
Connect frequency counter to TP3. |
L22
|
16.26750 MHz ± 20 Hz |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
