Realistic TRC-30/A (21-143) Navaho
Documentation Project

CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.

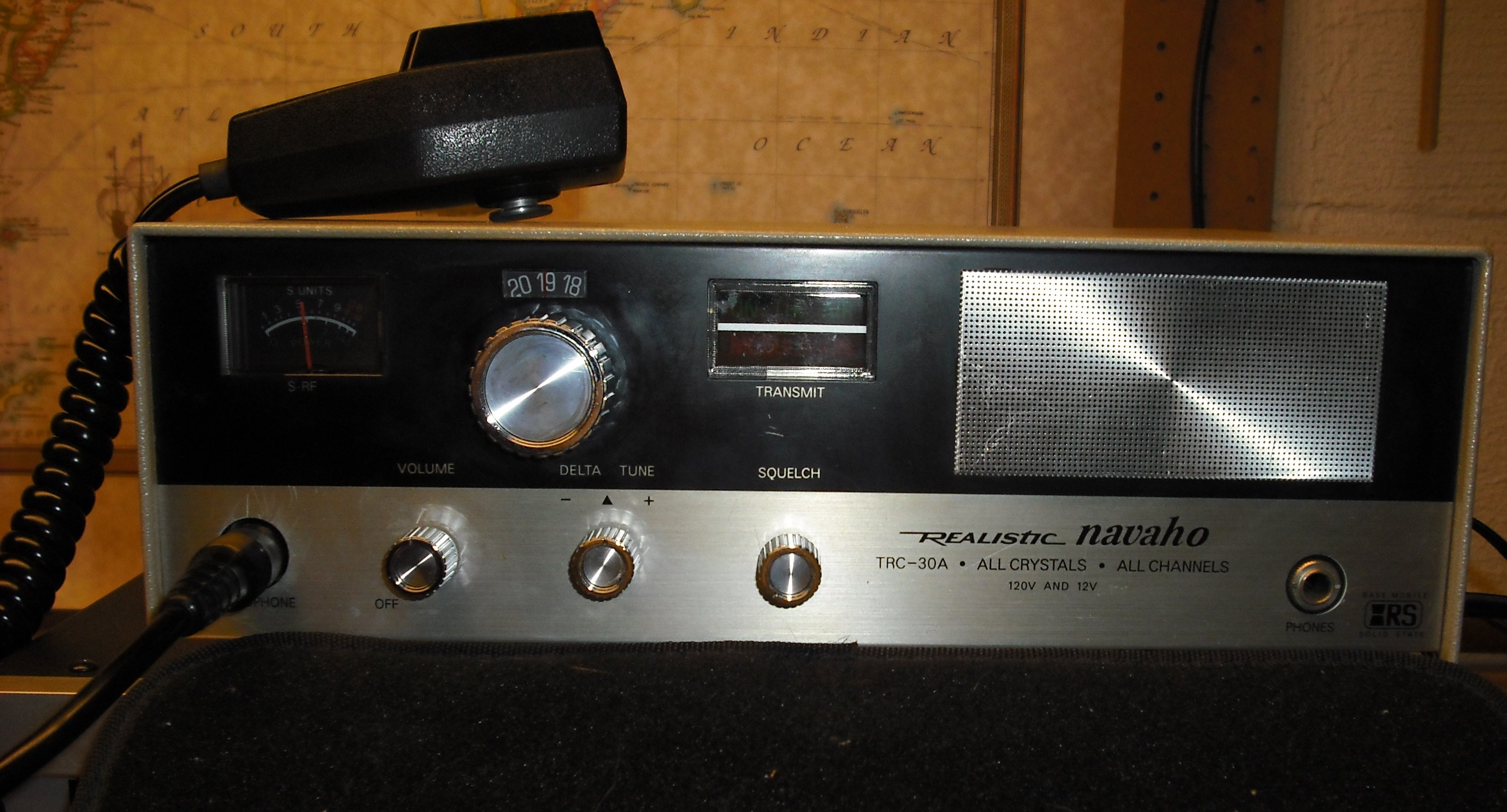

Click Picture to see close-up
(Courtesy of Jeff Novak)

Service Manual

Diagrams
     Schematic Diagram
     Schematic Diagram
     Chassis Wiring Diagram



Mic Wiring

Stock
1- Shield
2- N/C
3- Transmit
4- Audio
5- Receive

Astatic (4 wire)
1- Shield
2- N/C
3- Red
4- White
5- Black

Astatic (6 wire)
1- Shield & Blue
2- N/C
3- Red
4- White
5- Black
Yellow NC

Daiwa EM-500
Cobra CA Series

1- Shield & Black
2- N/C
3- White
4- Red
5- Blue

Galaxy DC-521S (4 wire)
1- Shield
2- N/C
3- Red
4- Yellow
5- Black

Galaxy CB-660EI
1- Shield & Black
2- N/C
3- Red
4- White
5- Blue

Sadelta
1- Shield
2- N/C
3- Brown
4- White
5- Green

Turner
1- Shield & Red
2- N/C
3- Blue
4- White
5- Black
Yellow NC
