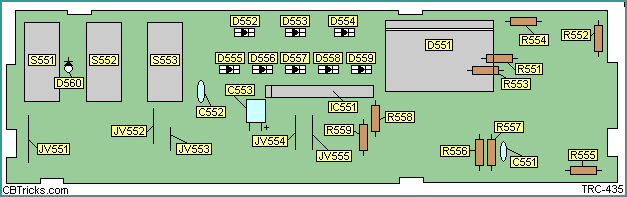

FRONT PCB ASSEMBLY
ASSEMBLY, PCB, FRONT AT336ZPBEB
CAPACITORS
The following
codes indicate variations of capacitors against temperatures;
YA- ± 5%,YB= ± l0%,YD= +20-30%,YE= +20-50%(-25--+85°C),ZF= +30-80%(-10---+70°C)
CH=0 + 0ppm/°C,RH=220ppm/°C ± 60ppm/°C,TH= -47oppm/°C ± 60ppm/°C,SL=
+350ppm/°C--lOOOppm/°C,UJ= -750ppm/°C ± l20ppm/°C
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
C551 |
Semi-Conductor (SR) 0.01uF 25V ± 10% |
BCGC511035Z |
C552 |
Semi-Conductor (SR) 0.0082uF 25V ± 10% |
BCGCS18225Z |
C553 |
Electrolytic 10uF 16V ±20% |
BCER311006Z |
DIODES
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
D551 |
LED Display LDR204AL |
BDAY0202001 |
D552 |
LED GL8PR2lT (B) |
BDAY0489002 |
D553 |
LED GL8PR21T (B) |
BDAY0489002 |
D554 |
LED GL8PR2lT (B) |
BDAY0489002 |
D555 |
LED GL8PR21T (B) |
BDAY0489002 |
D556 |
LED GL8PR21T (B) |
BDAY0489002 |
D557 |
LED GL8PR2lT (B) |
BDAY0489002 |
D558 |
LED GL8PR21T (B) |
BDAY0489002 |
D559 |
LED GL8PR21T (B) |
BDAY0489002 |
D560 |
Silicon 1N4148 |
BDAY0246001 |
RESISTORS
NOTE: All resistors are Carbon AX TS 26 Type, 1/6 watt +5% unless otherwise specified.
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
R551 |
680 ohm |
BRPA616814Z |
R552 |
680 ohm |
BRPA616814Z |
R553 |
680 ohm |
BRPA616814Z |
R554 |
680 ohm |
BRPA616814Z |
RSSS |
680 ohm |
BRPA616814Z |
R556 |
10k ohm |
BRPA611034Z |
R557 |
15k ohm |
BRPA611534Z |
R558 |
1.8k ohm |
BRPA611824Z |
R559 |
820 ohm |
BRPA618214Z |
SWITCHES
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
S551 |
Slide 3 points SW-672 |
B5WY0672001 |
S552 |
Slide SW-430 55FU22-145K |
BSWY0430001 |
S553 |
Slide SW-430 SSFU22-145K |
BSWY0430001 |
INTEGRATED CIRCUIT
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
IC551 |
Bipolar LB1423N |
BDEY0430001 |
