Realisitic
TRC-435
Documentation Project
CBTricks.com

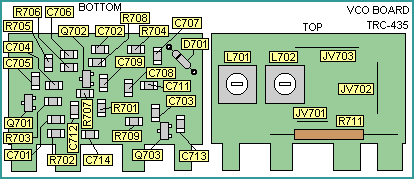

VCO PCB ASSEMBLY
ASSEMBLY, PCB, VCO AT336ZPBEC
NOTE: All capacitors are Ceramic MIL (3216) Type unless otherwise specified.
The following
codes indicate variations of capacitors against temperatures;
VA- ± 5% YB= + l0%,YD=
+20-30%,YE= +20-50%(-25---+85°C),B= + 10-30%,ZF=
+30-80%(-10--+70°C) CH=0 + 60ppm/°C,RH=220ppm/°C ± 60ppm/°C,CG=0
± 60ppm/°C, TH=
-470ppm/°C ± 60ppm/°C,SL= +350ppm/°C--1000ppm/°C,UJ= -750ppm/°C
± 120ppm/°C
CAPACITORS
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
C701 |
39pF 50V ±5% SL |
BCXQ813904Z |
C702 |
0.01uF 50V ±10% B |
BCXS811035Z |
C703 |
0.01uF 50V ±10% B |
BCXS811035Z |
C704 |
0.01uF 50V ±10% B |
BCXS811035Z |
C705 |
39pF 50V ±5% SL |
BCXQ813904Z |
C706 |
15pF 50V ±5% CG |
BCXD811504Z |
C707 |
47pF 50V ±5% UJ |
BCXP814704Z |
C708 |
100pF 50V ±10% UJ |
BCXP811015Z |
C709 |
330pF 50V ±10% UJ |
BCXP813315Z |
C710 |
-Not Used- |
|
C711 |
39pF 50V ±5% CG |
BCXD813904Z |
C712 |
68pF 50V ±5% SL |
BCXQ816804Z |
C713 |
0.01uF 50V ±10% B |
BCXS811035Z |
C714 |
0.01uF 50V ±10% B |
BCXS811035Z |
DIODE
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
D701 |
Silicon 1SV73-EB |
BDAY0220001 |
COILS
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
L701 |
LB-724 |
BLBY0724001 |
L702 |
LB-723 |
BLBY0723001 |
TRANSISTORS
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
Q701 |
Silicon NPN DB-744 2SC2814-F5 |
BDBC2814641 |
Q702 |
Silicon NPN DB-744 2SC2814-F5 |
BDBC2814641 |
Q703 |
Silicon NPN DB-744 2SC2814-F5 |
BDBC2814641 |
RESISTORS
NOTE: All resistors are Carbon Fixed Chip Type, 1/8 watt, ± 5% unless otherwise specified.
REF. NO. |
DESCRIPTION |
MFR'S PART NO. |
R701 |
33k ohm |
BRFC183334Z |
R702 |
100 ohm |
BRFC181014Z |
R703 |
390 ohm |
BRFC183914Z |
R704 |
10k ohm |
BRFC181034Z |
R705 |
39k ohm |
BRFC183934Z |
R706 |
100 ohm |
BRFC181014Z |
R707 |
15k ohm |
BRFC181534Z |
R708 |
330 ohm |
BRFC183314Z |
R709 |
56k ohm |
BRFC185634Z |
R710 |
-Not Used- |
|
R711 |
Carbon Axial Lead 1k ohm 1/8W ±5% |
BRFT181024Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
