Tour of Radio
Magnum S6 Off The Record Features: ================================= |
|

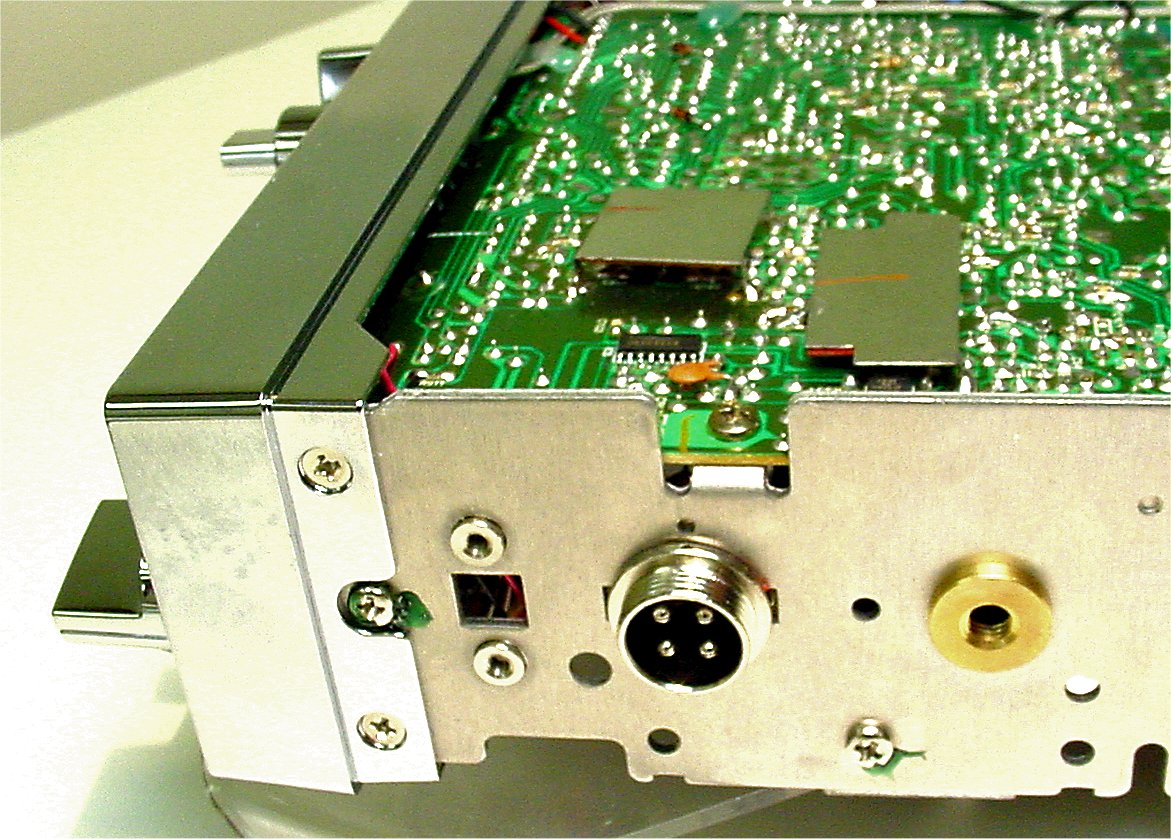

| * (2 Mic Jacks) Front Panel and Side Microphone Jacks | * Large Ferrite Power Line Filter |
| * Blue LEDs for Frequency Counter and Channel Display | * High quality S0239 - Does not slip loose like Export models |
| * Dimmer Control for Display and F-Counter Prevents eye fatigue from long term use |

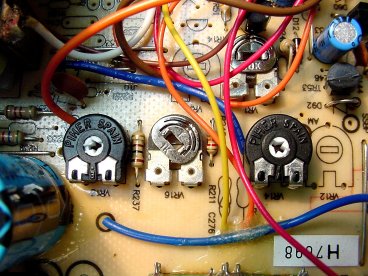

* High quality PIHER pots on frequently used adjustments Unlike cheaper tin pots on other exports |

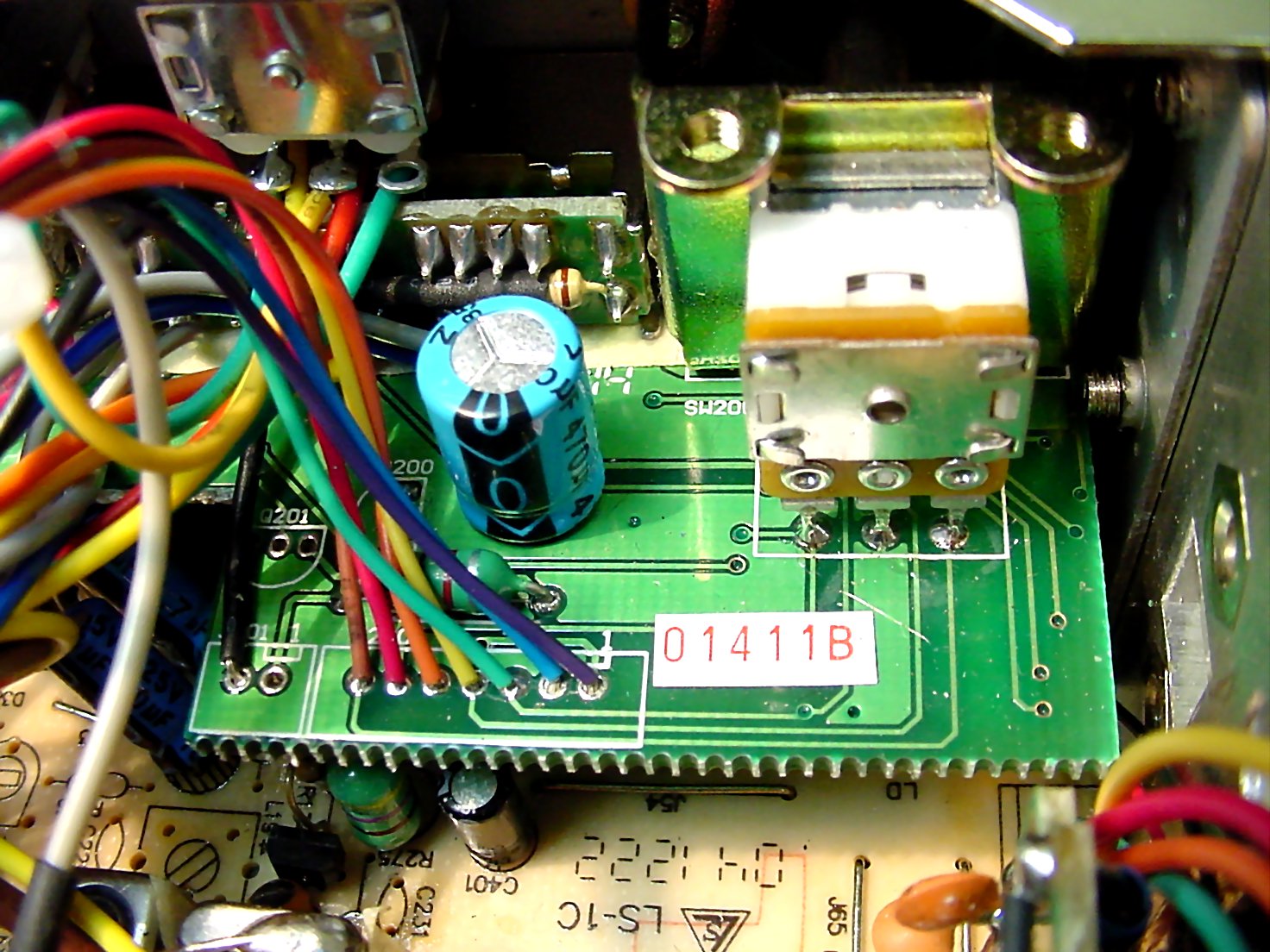

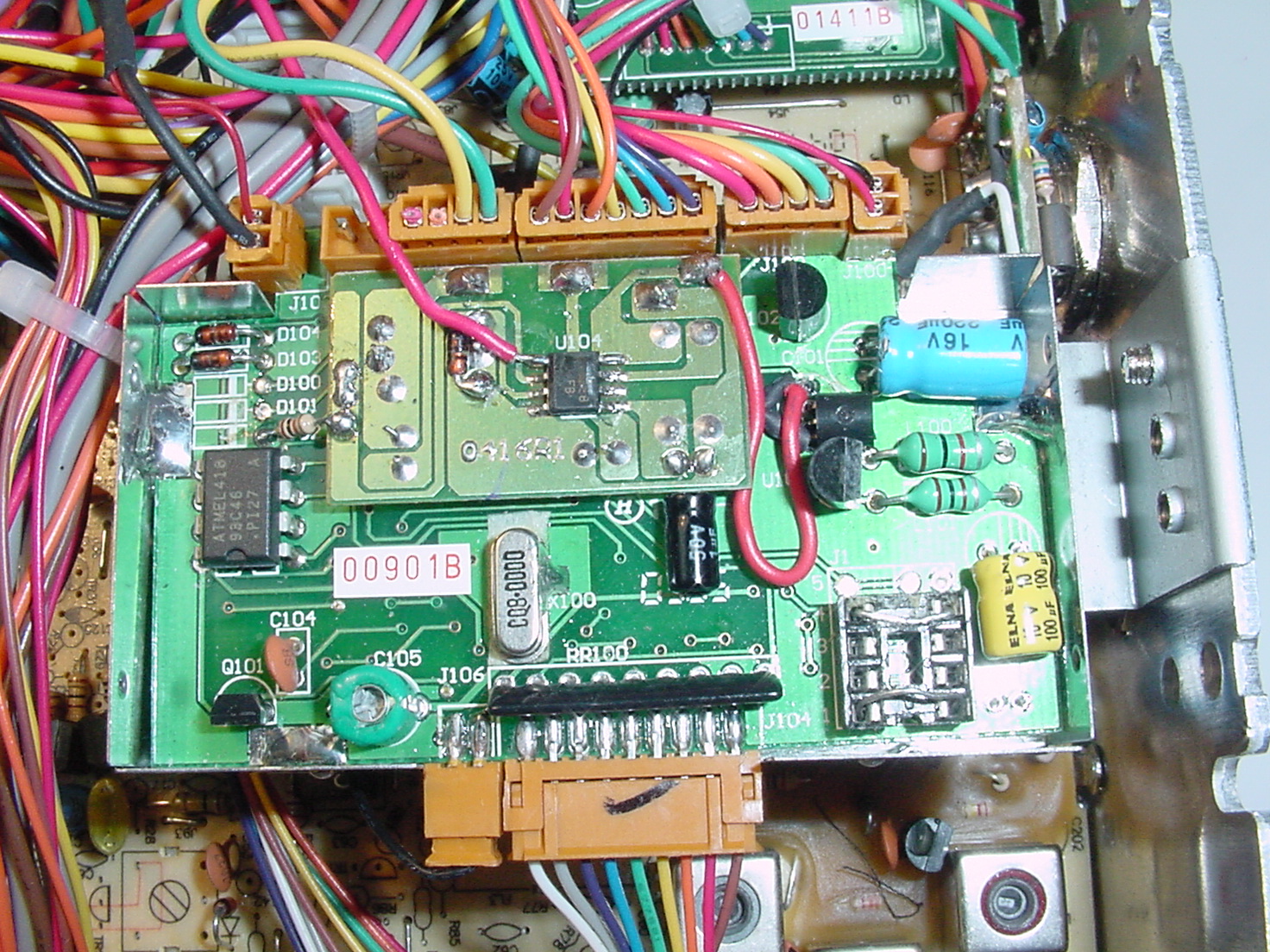

| * Computer Controlled PLL - with 8 Band Selector Each of the 8 Bands can be programmed independently Selectable 5Khz and 10Khz Frequency steps |
* Amplified Talk Back circuit with adjustable volume control |

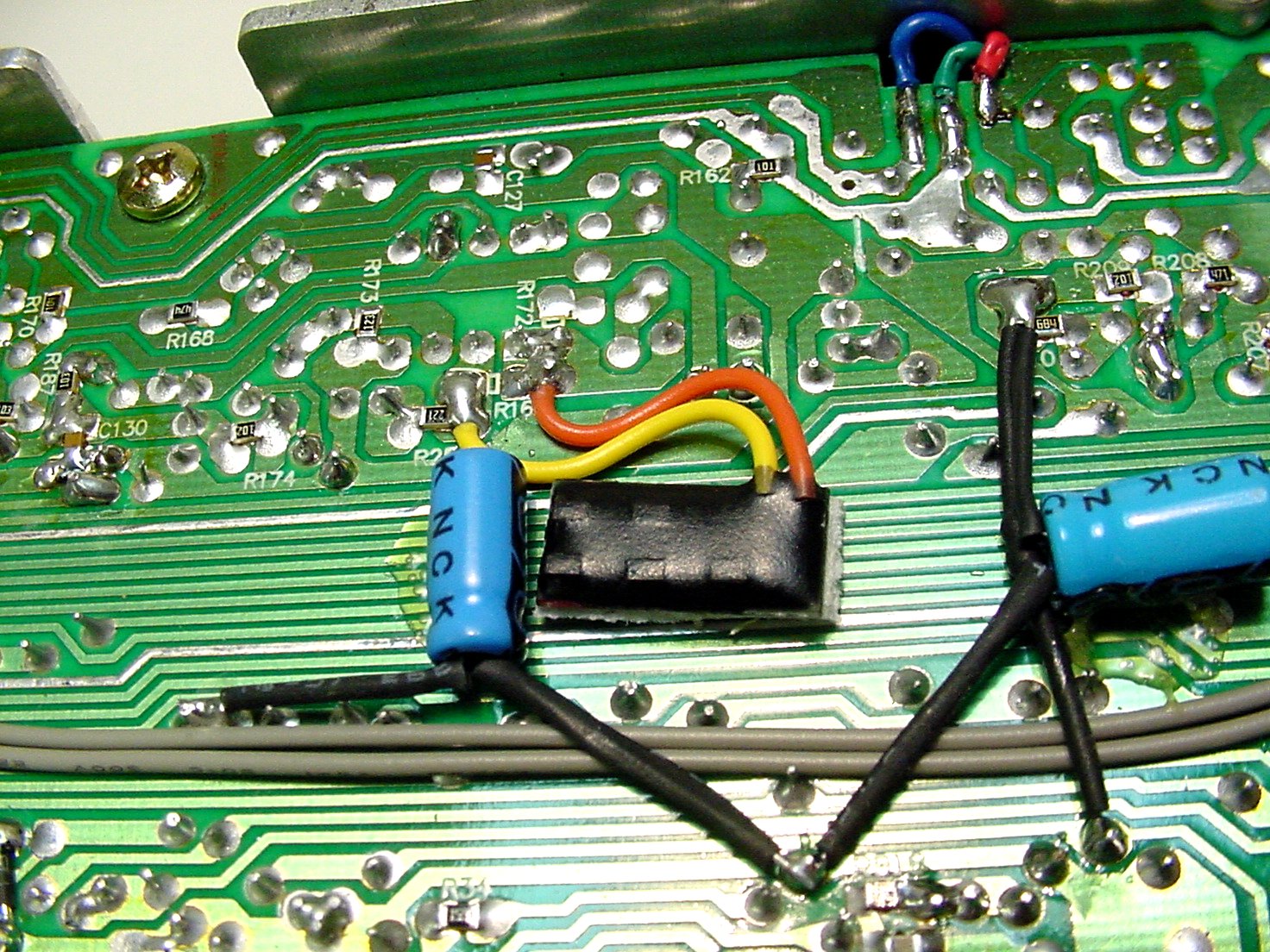

| * High quality printed circuit board | * Roger Beep circuit (front panel switchable) RB circuit mutes out going beep even when TB is on. |

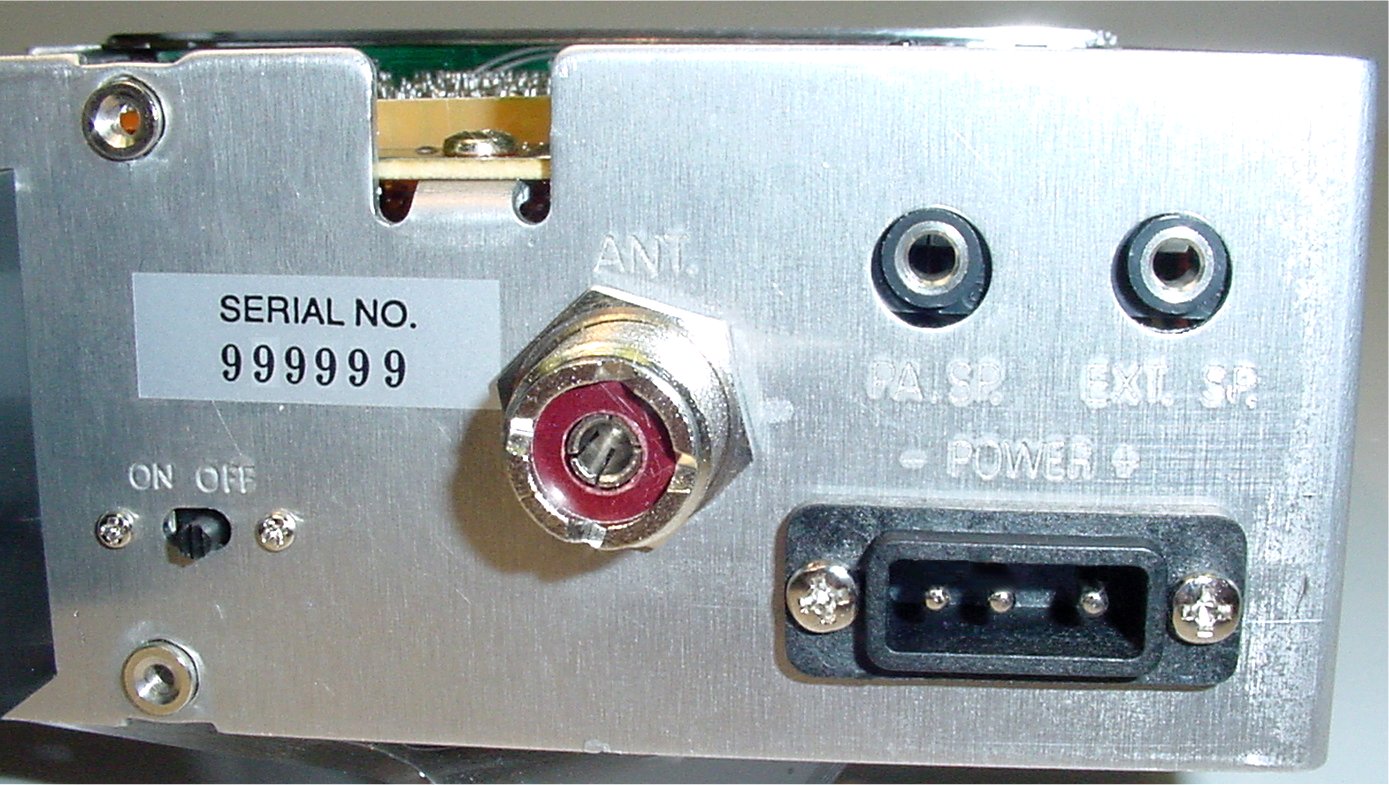

| * High quality molded rear panel power connector Unlike low cost 2 part connector on many exports |

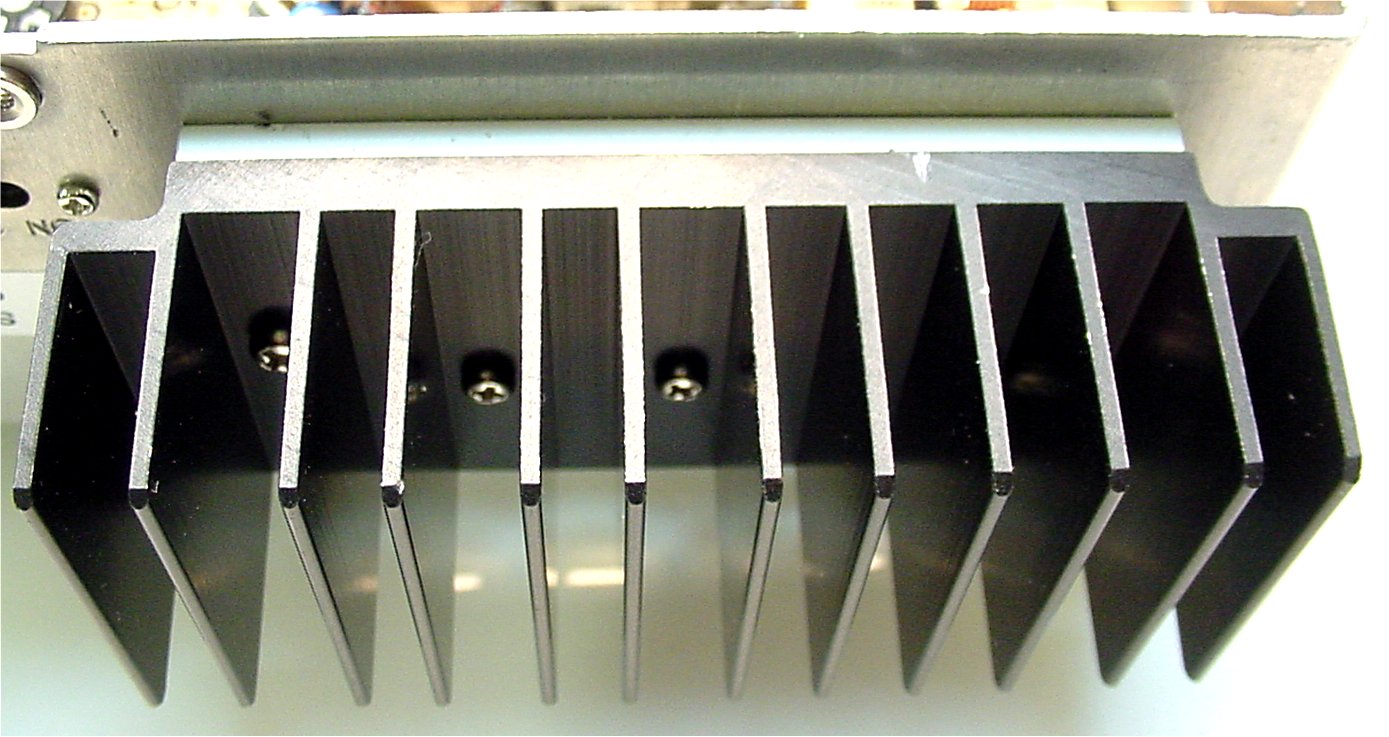

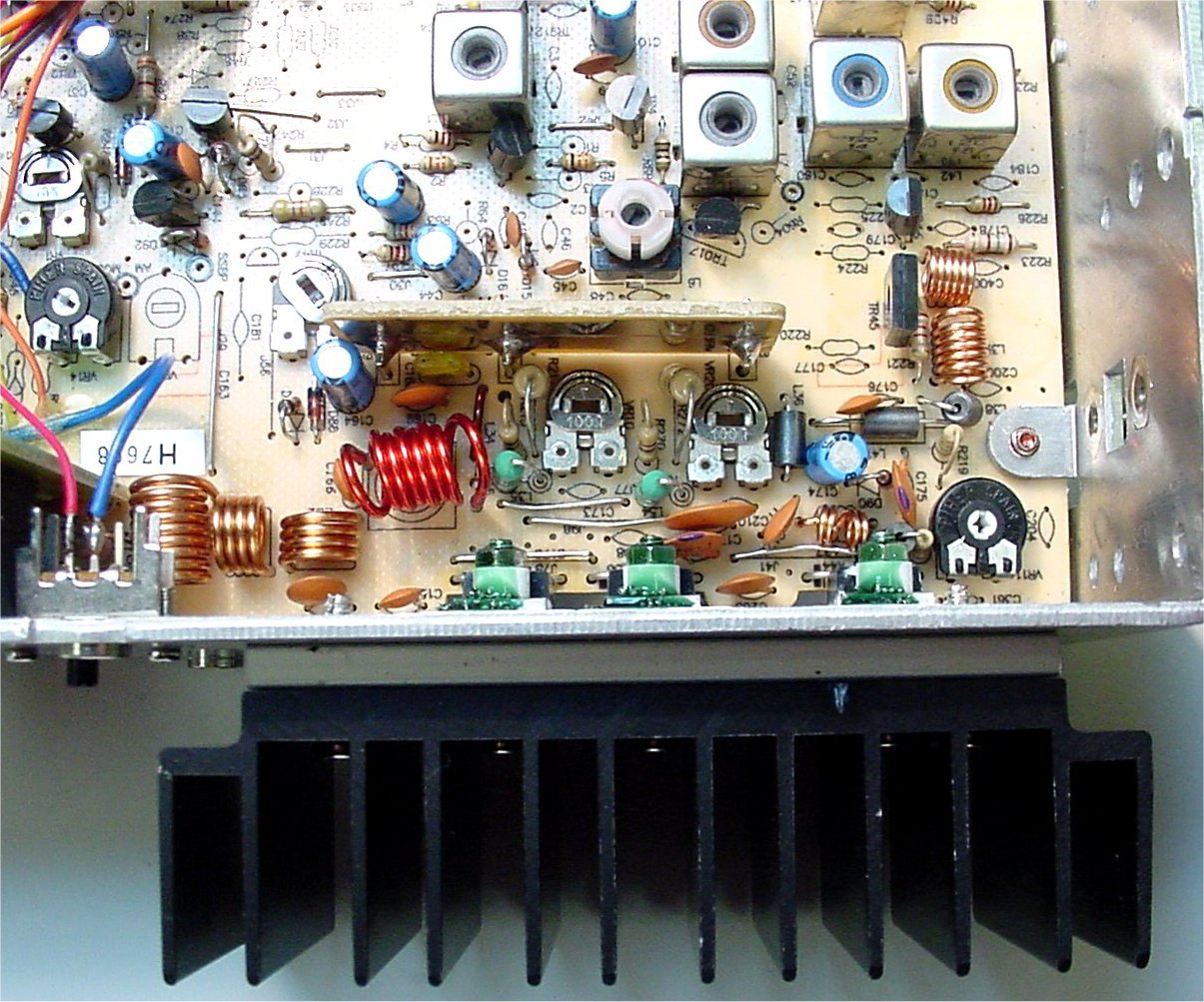

* Large Heat Sink with underlying metal plate Unlike small screw on heat sink on other exports |
| * Large round meter - Blue LED backlit - Red LED Xmit | * AMT - "All Mode Talkback" works on all bands Works on FM mode - Unlike most exports |

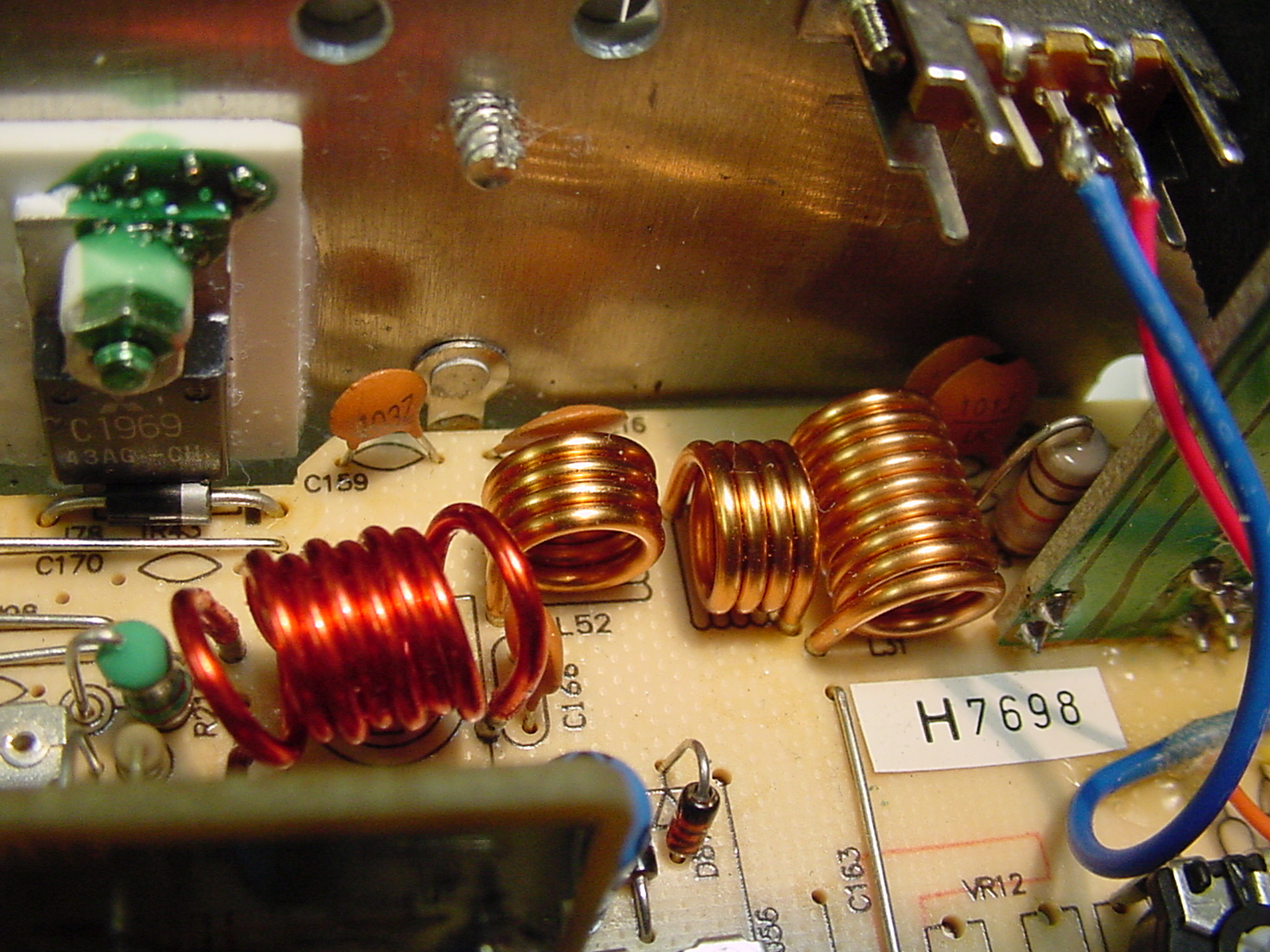

Now For the Pictures
Click on Picture to see full size (use back button to get back to this page)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
