Magnum S9, Magnum S-9NX
Documentation Project
CBTricks.com

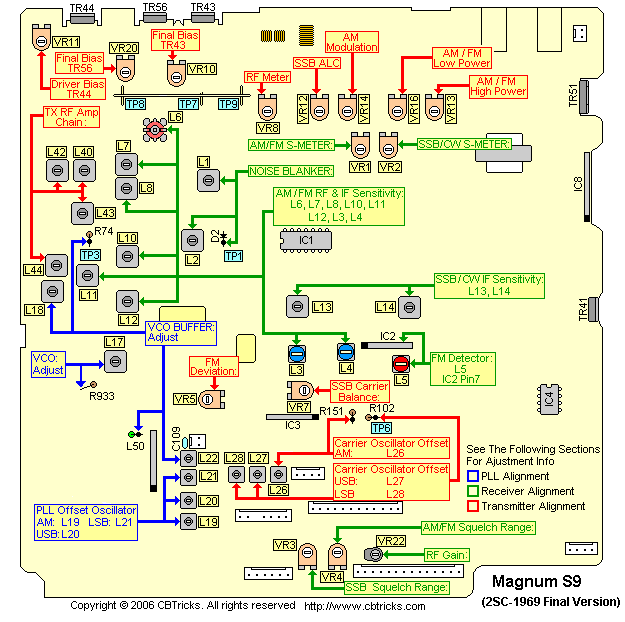

Alignment Locations (2SC-1969 Final Version)
     PLL Alignment
     Transmitter Alignment (2SC-1969 Final Version)
     Receiver Alignment

Note: (This Transmitter Alignment is for S9 with Two 2SC-1969 Finals)

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
