Magnum S9, Magnum S-9NX
Documentation Project
CBTricks.com

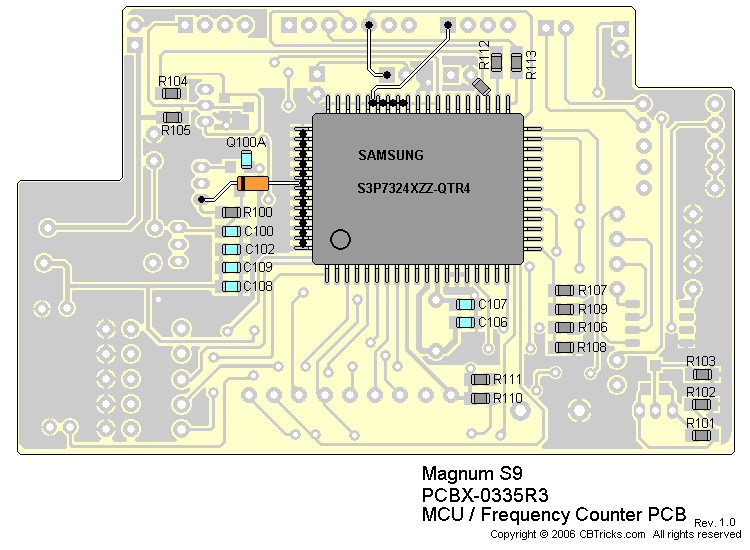

MCU / Frequency Counter PCB (PCBX-0335R3)
Trace Layout

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
