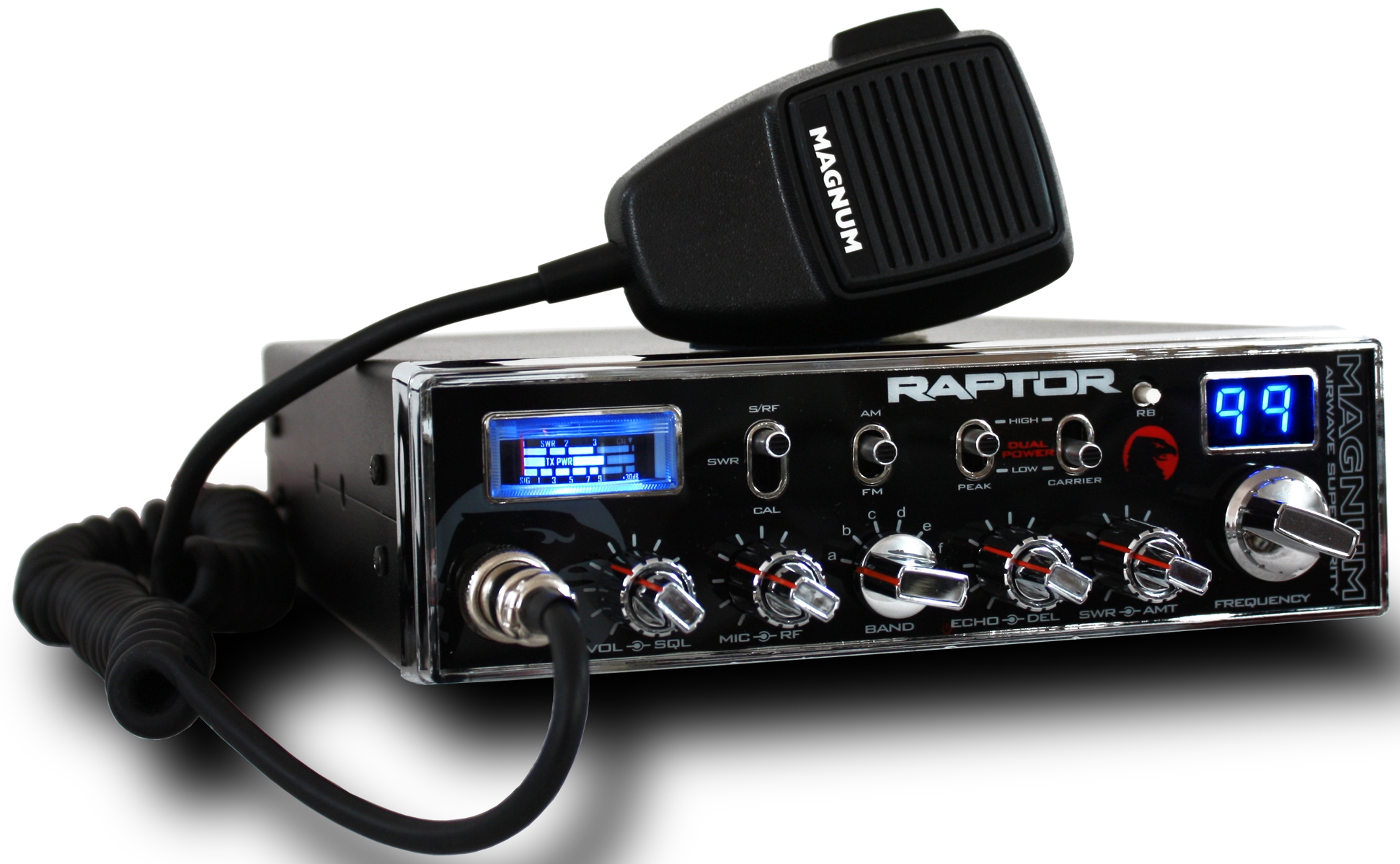

Raptor Brochure

Owner's Manual

RADIO MODIFICATIONS
       Frequency Modification

       Raptor Dual Power Notice

Diagrams
     Schematic Diagram
     Main PCB Layout
     Main PCB Copper Layout

Also See:
RF Limited / Magnum Tech Notes Section

Mic Wiring

Stock
1-Shield  (ground)
2-Yellow (audio)
3-Red     (transmit)
4-White  (receive)

Astatic
1-Shield & Blue
2-White
3-Red
4-Black
Yellow NC

Turner
1-Shield & Red
2-White
3-Blue
4-Black
Yellow NC

Sadelta
1-Shield
2-White
3-Brown
4-Green
