Uniden Grant
Documentation Project

CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.




DIAGRAMS

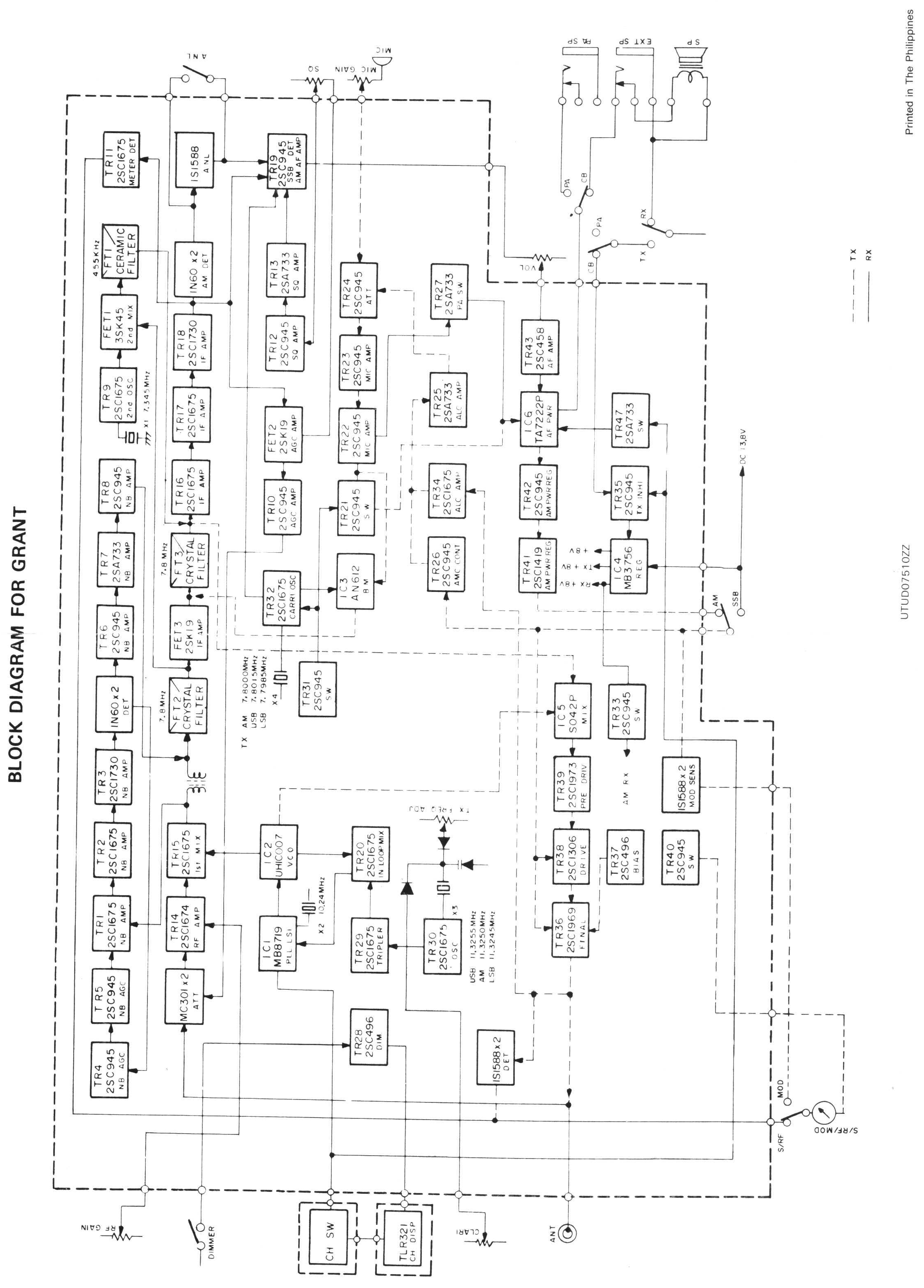

    Block Diagram
    Block Diagram

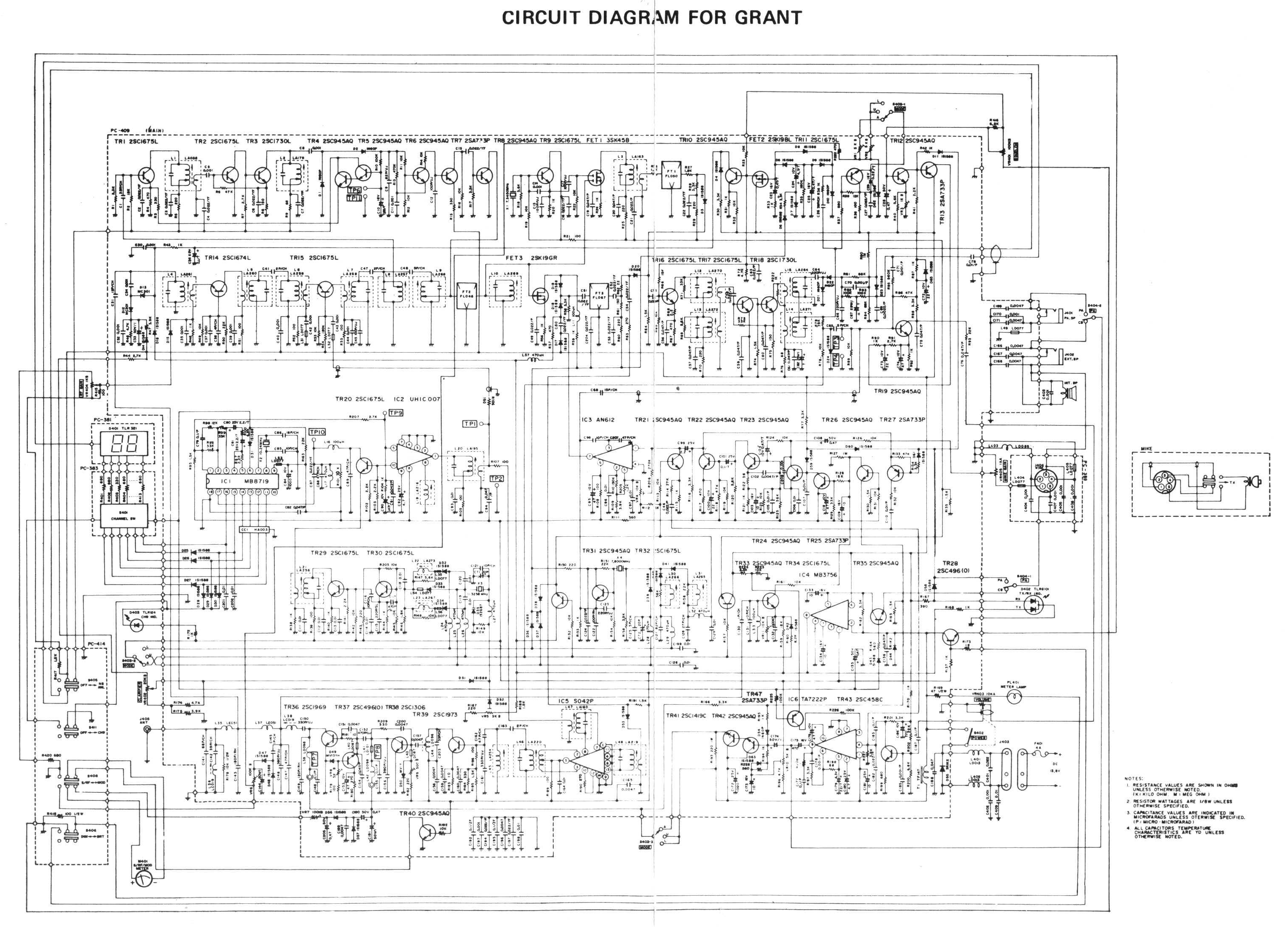

    Schematic
    Schematic
Thanks to Russell Clift AB7IF for scanning and sending sending these.







Copyright © 1998,1999,2000,2002 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
