- Cobra Model
- 89GTL
Owner's Manual
DIAGRAMS

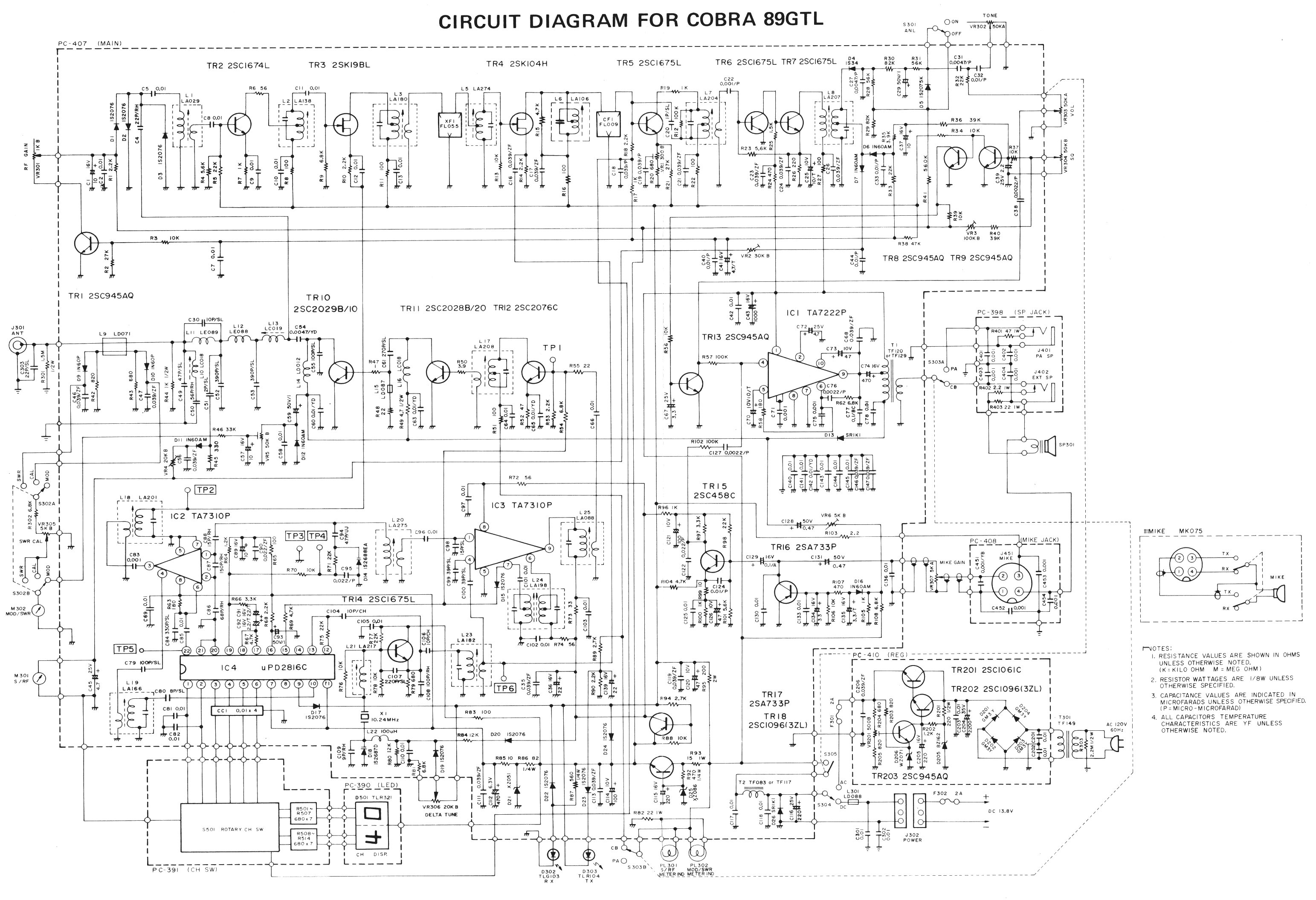

Schematic Diagram (8.5x11)
Schematic Diagram (11x17)
Schematic Diagram
Parts List
Mic Wiring
Stock
1- Shield
2- Audio
3- Transmit
4- Receive
Astatic (4 wire)
1- Shield
2- White
3- Red
4- Black
Astatic (6 wire)
1- Shield & Blue
2- White
3- Red
4- Black
Yellow NC
Daiwa EM-500
Cobra CA Series
1- Shield & Black
2- Red
3- White
4- Blue
Galaxy DC-521S (4 wire)
1- Shield
2- Yellow
3- Red
4- Black
Galaxy CB-660EI
1- Shield & Black
2- White
3- Red
4- Blue
Sadelta
1- Shield
2- White
3- Brown
4- Green
Turner
1- Shield & Red
2- White
3- Blue
4- Black
Yellow NC
