139xlr mic wire up

[bigred222]

I need help i tried to put in a stupid roger beep and now im down one really cool old school screamer.
Could you help me please

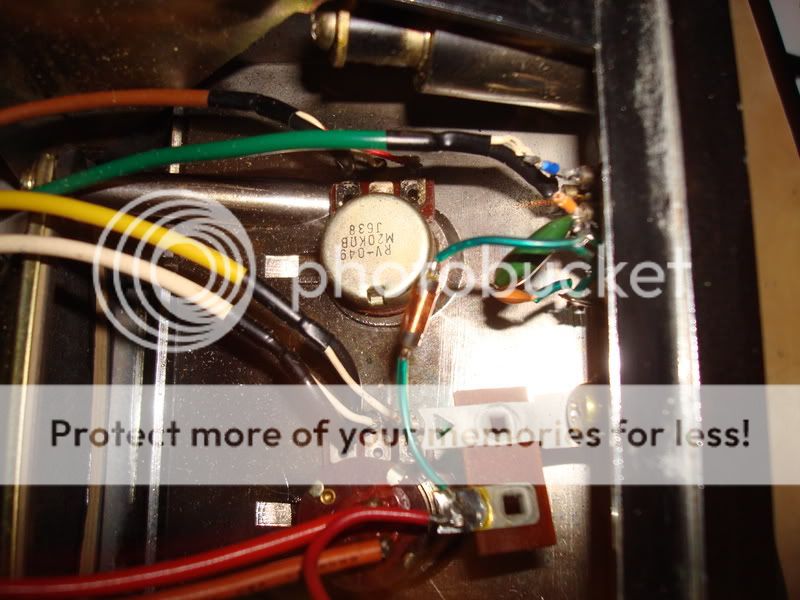

What would be great is if you took my pics saved them and then made arrows where stuff goes and where stuff gets solderd bac that would be great all of the pics are with the radio upside down so keep that in mind.
thanks guys.

If you need more pics i will take more.
Thanks again
~RED~



[bigred222]

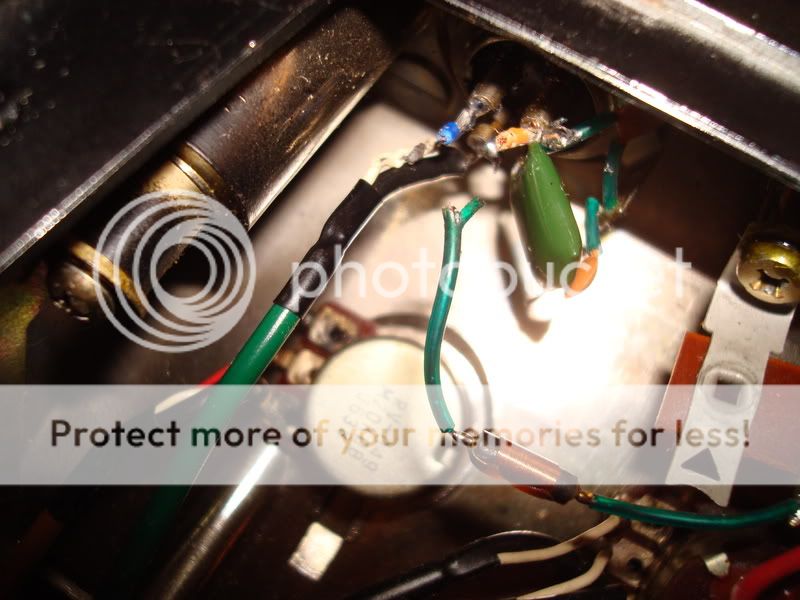

more



[bigred222]

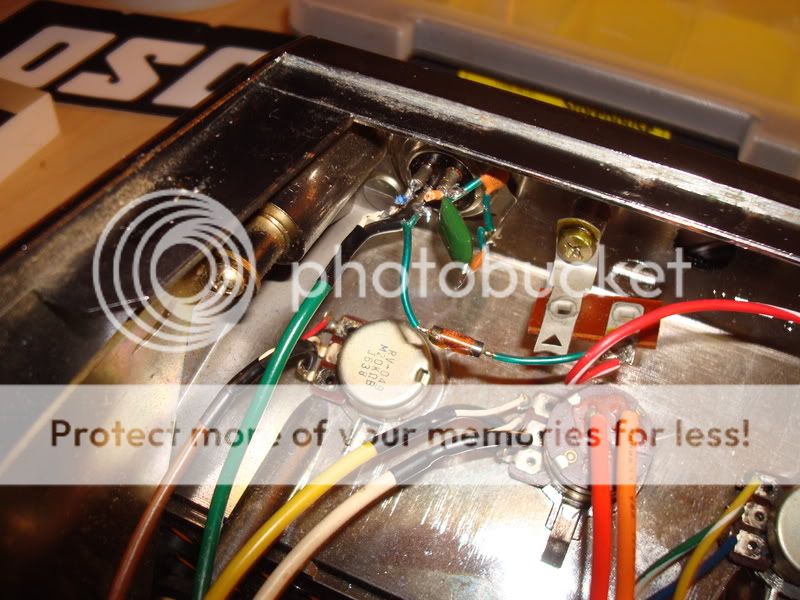

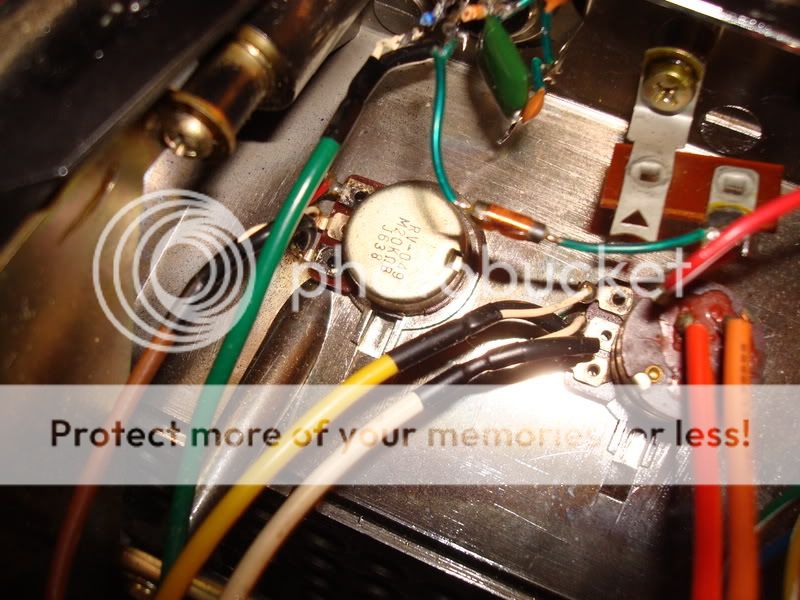

and three more
I really want this fixed

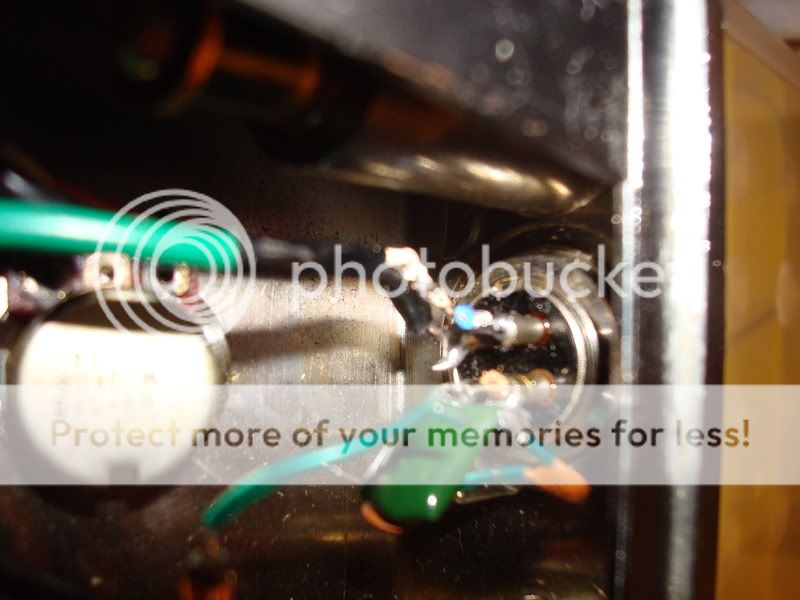

here is how i have the radio situated so you know the mic pin numbers

thanks again



[bigred222]

BUMP Help please. i know there are a million mic wiring experts in here. one person must know what goes where.



[bigred222]

bump again



[ExitThirteen]

Standard mic wiring for cobra/galaxy/uniden 4 pin:

Pin 1) ground
Pin 2) audio
Pin 3) PTT (tx)
Pin 4) RX (sometimes not used on relay switched radios, and some galaxy/uniden radios, but good to put the RX wire there anyhow)

Hope this helps!

-Exit



[bigred222]

thank you so much for getting back to me exit but i need to know where all of those little components go, i dont know which wire is which. if anyone does please feel free to jump in .
take care Exit
BR back out



[ExitThirteen]

Okay,

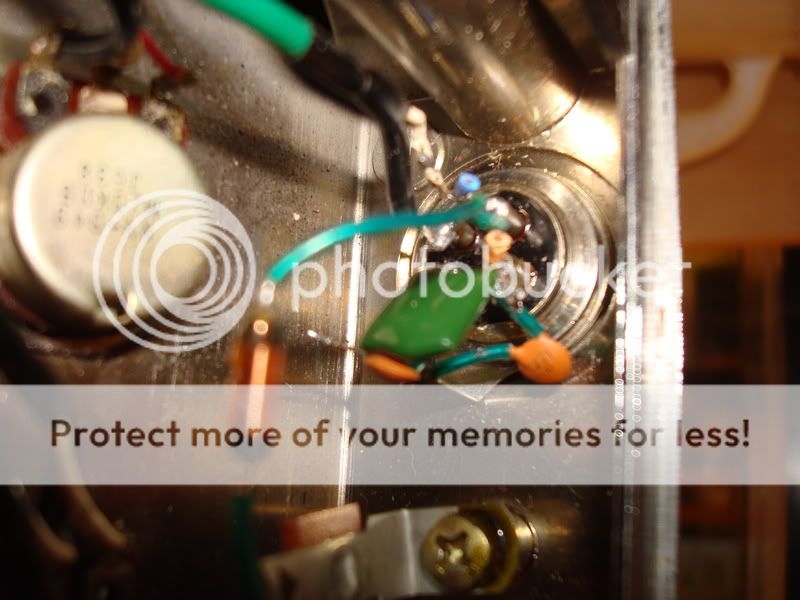

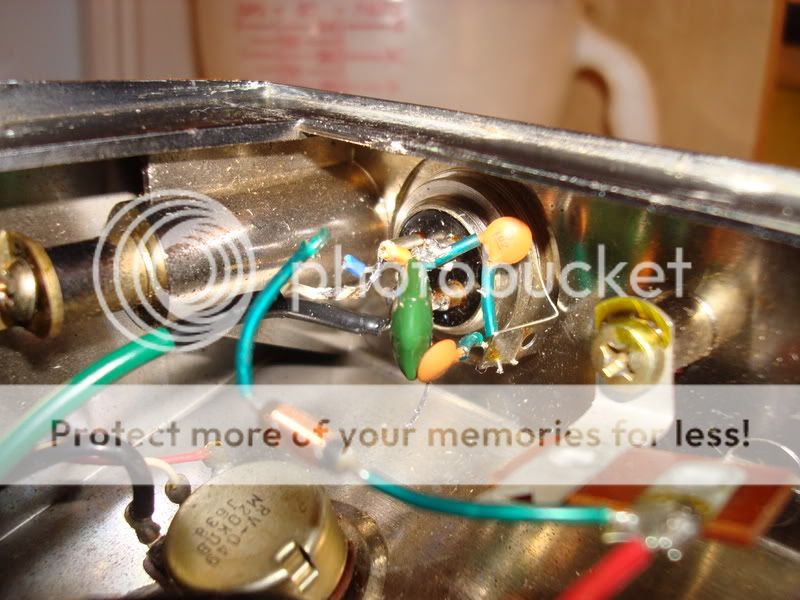

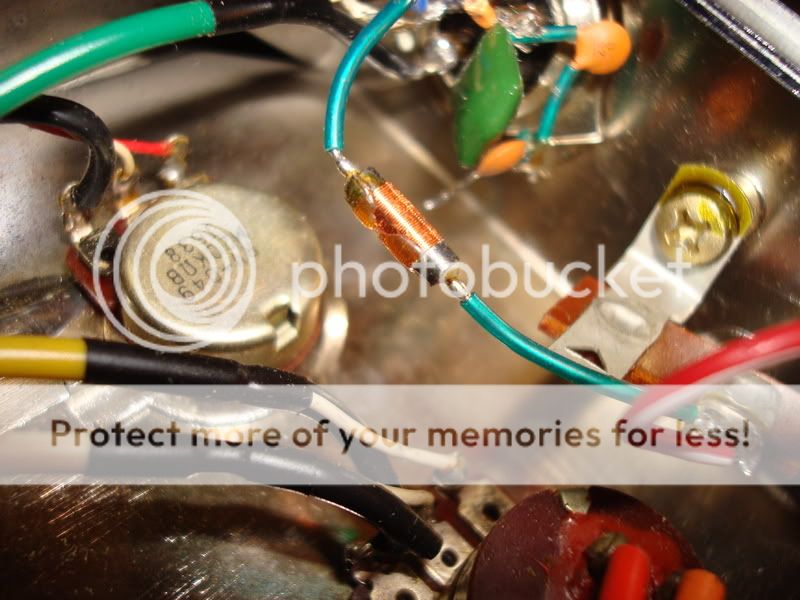

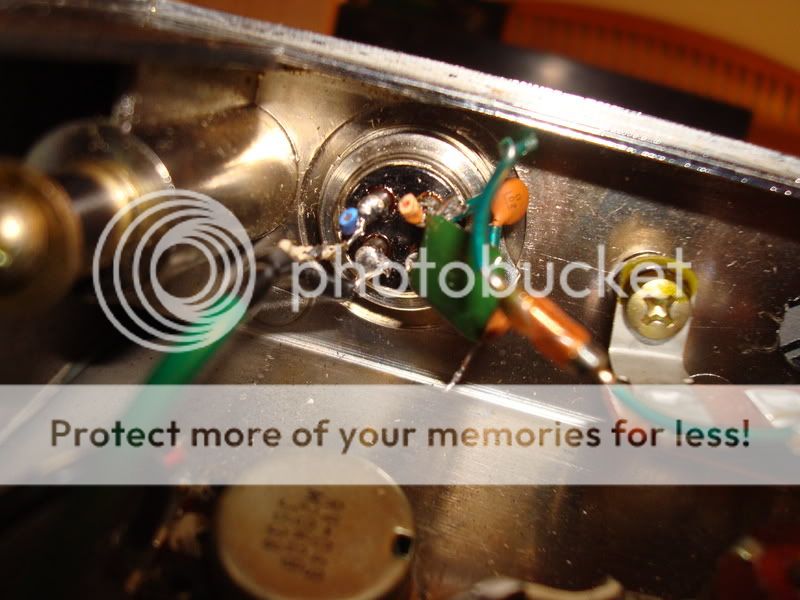

Upon further inspection, the black wire and white wire are in the correct places on the jack. the wire connected to the little choke goes to pin 3, which has the orange wire stub on it. Looks like the small ceramic disc capacitors (looks like there are 2 there?) are just clipped and can be reattached.



Hope this helps!

-Exit



[bigred222]

dude that helps alot i will do it tonight thanks again.



[ExitThirteen]

No problem, let me know how it goes.

-Exit



[bigred222]

Hey it keys What do you know. now i need to figure out the rest of the problems with the radio. Right now its a cobra 139xlr Receiver.



[Switch Kit]

thumbs up to you 13 ! that takes time to do and for especially helping red out ! Cheers
