Built an Astroplane in an afternoon.

[Marconi]

Thank you, Sir.

Set up outside under my umbrella (too #&*#$^@%$ hot otherwise) I put the MFJ209 and the frequency counter in lline and this is what it says.

2.0:1 ------------------------ 29.695
1.0:1 ------------------------ 27.875
1.1:1 ------------------------ 27.405
1.2:1 ------------------------ 27.205
1.5:1 ------------------------ 26.695
2.0:1 ------------------------ 26.415

The setup testing:

I checked my old Top One SWR bandwidth curves and they show through just the feed line about 3.28 mhz also. I would say that is an excellent model you built.

BTW, I was hearing Ark a while ago, and I was calling for you and Red said he would tell you I was calling.



[HomerBB]

Sorry. gotta put up and go to work until 10:30 PM tonight.



[HomerBB]

Readjusted some things, tightened up some joints, recalibrated measurements, changed out the center spreader for plexiglass plate, and beefed up the clamp on the longest leg to the top plate. I think it has a little more symmetry.



[BOOTY MONSTER]

it is amazing what you make with that aluminium tape .
looks great to



[HomerBB]

Got it above the Yagi for a workout.

To the tip-top it is 57'
To the coax connection it is 53'
To the bottom ring it is 45.5'



[AudioShockwav]

I got to tell you homer......If i was stuck in the middle of the Sahara Desert with a broken down vehicle, and no spare parts you are the guy that is going to get the call.....

" Here is your problem, see this wire is burned up....no wire...not a problem, hand me that paper bag....ok now see if we take this pencil and cover the paper completely by drawing all over it on both sides, then roll it up like this...see the lead is conductive, now hand me that soda pop can and let me git my swiss army knife ........"



[HomerBB]

You've got it. Now you don't need me.



[HomerBB]

I have the Homebrew Astroplane back up temporarily as I do repairs and upgrades to the tip-over tower. The SWR is still great, and it works a charm.



[cordova lucky 13]

GRATE JOB HOMMER !

Grate job HOMMER on the home brew antenna !! Now how about a little more information on that tiltover tower ? I,am very interested in it & i can only assume others might be also ,,,, always look forward to reading your post & input on others . thank you,,,,,,,,, 'cordova lucky 13' Bob.A.



[HomerBB]

Thanks.
Info on the tower can be found here. (I plan on beefing up the tower with the lower section 2x8x16' and the upper section 2x6x16' as opposed to the 2x4 sections currently in use.
worldwidedx.com / tip-over tower



[byder]

can you send me the plans ?,i wanna try one!



[vo1ks]

How does the coaxial cable attach to the antenna?



[Marconi]

How does the coaxial cable attach to the antenna?

The image below shows the basic idea for the coax connection, but the real antenna uses a special type of connector that isolates the end of the bowed-in element descending down to the hoop on the left.

If you isolate this element at the bracket you can also use a pigtail connection for your coax and eliminate the use of a connector.

View attachment AstroPlane dimensions.pdf



[HomerBB]

can you send me the plans ?,i wanna try one!

PM sent



[HomerBB]

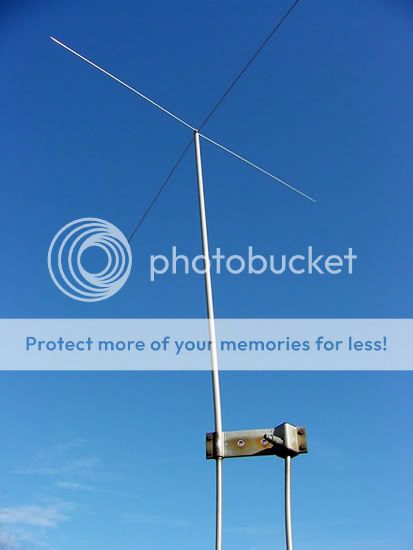

Connection on the old AP I had:

Connection on another fellow's homebrew"

Connection on my homebrew:
