Cobra 132xlr alignment

[Cpt shakes]

Gentleman. I have looked all over the web and I cannot find alignment procedures for a 1:32 XLR. I have heard that the 135 XLR was the same radio, but CB tricks still does not have anything listed for alignment of that radio. Does anyone know where this information is available I'm finished searching.



[Robb]

Buy the SAMS sevice manual #179, which is available for download or hard copy from the SAMS site for $22:

https://www.samswebsite.com/en/photofact/details/index/id/38614



[LeapFrog]

Gentleman. I have looked all over the web and I cannot find alignment procedures for a 1:32 XLR. I have heard that the 135 XLR was the same radio, but CB tricks still does not have anything listed for alignment of that radio. Does anyone know where this information is available I'm finished searching.

What is the pcb series number (if any are printed) like "PC-196A" or PC-68AB.

I'm going to assume this is a Uniden chassis and not a Cybernet.

You probably already know this, but finding another radio that uses the same series PCB and borrowing that service manual may be your best bet.

(Im on the mobile now, but when I get on the PC I can try searching the web some more.)

Edit: Woops! Robb beat me to it, the photofact will set you good and proper.



[unit_399]

Cpt shakes -

The 132XLR uses the same board as the 135XLR base. Alignment for either one will work. 132 (Sams 179), 135 (Sams 181). This is NOT a Uniden chassis. Board # is KTNA001 - C. There is a schematic for the 135XLR on CBTricks. The following is the alignment procedure for the 132XLR from Sams # 179. Good luck & 73s.
- 399



[Cpt shakes]

Cpt shakes -

The 132XLR uses the same board as the 135XLR base. Alignment for either one will work. 132 (Sams 179), 135 (Sams 181). This is NOT a Uniden chassis. Board # is KTNA001 - C. There is a schematic for the 135XLR on CBTricks. The following is the alignment procedure for the 132XLR from Sams # 179. Good luck & 73s.
- 399

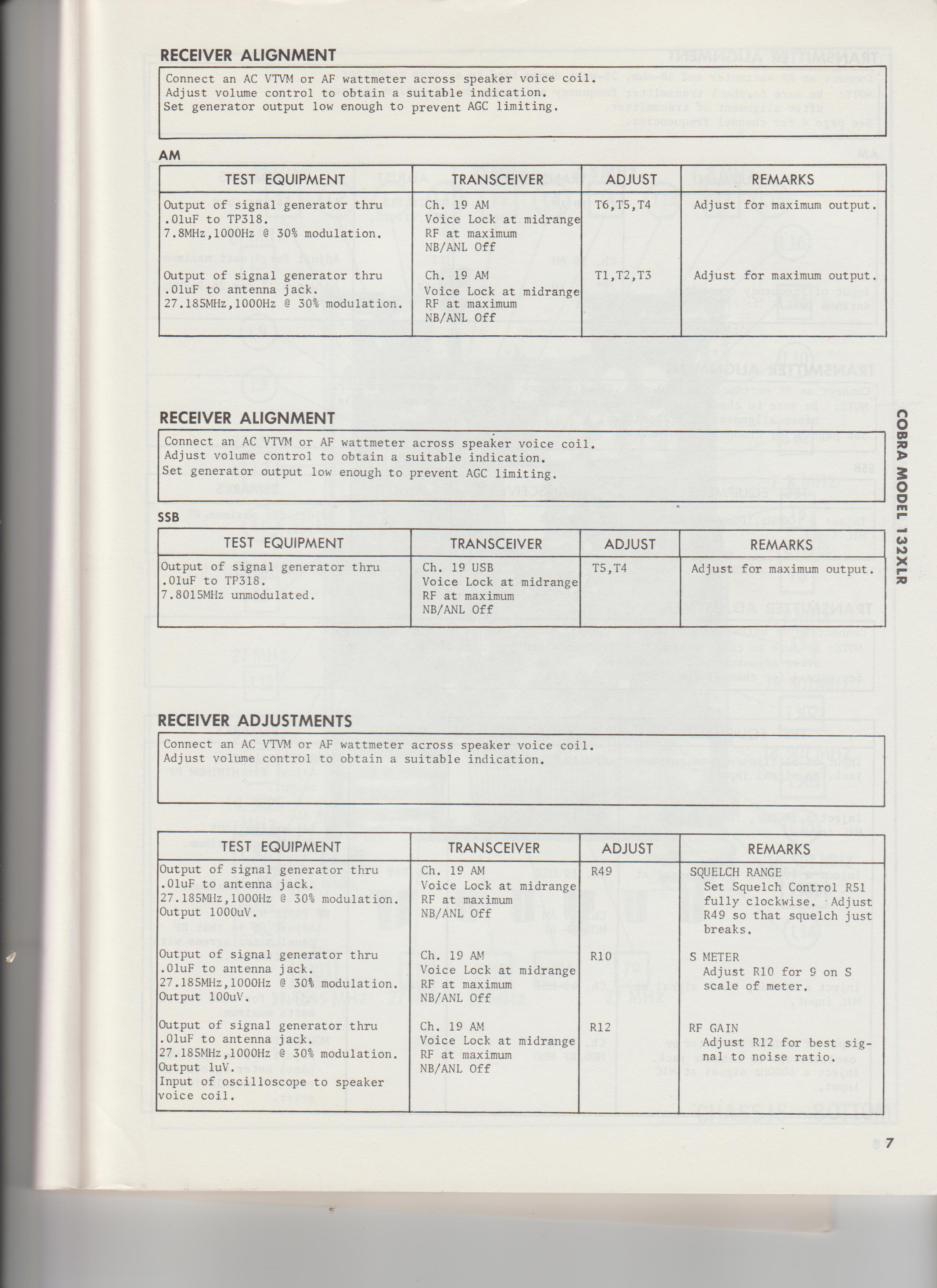

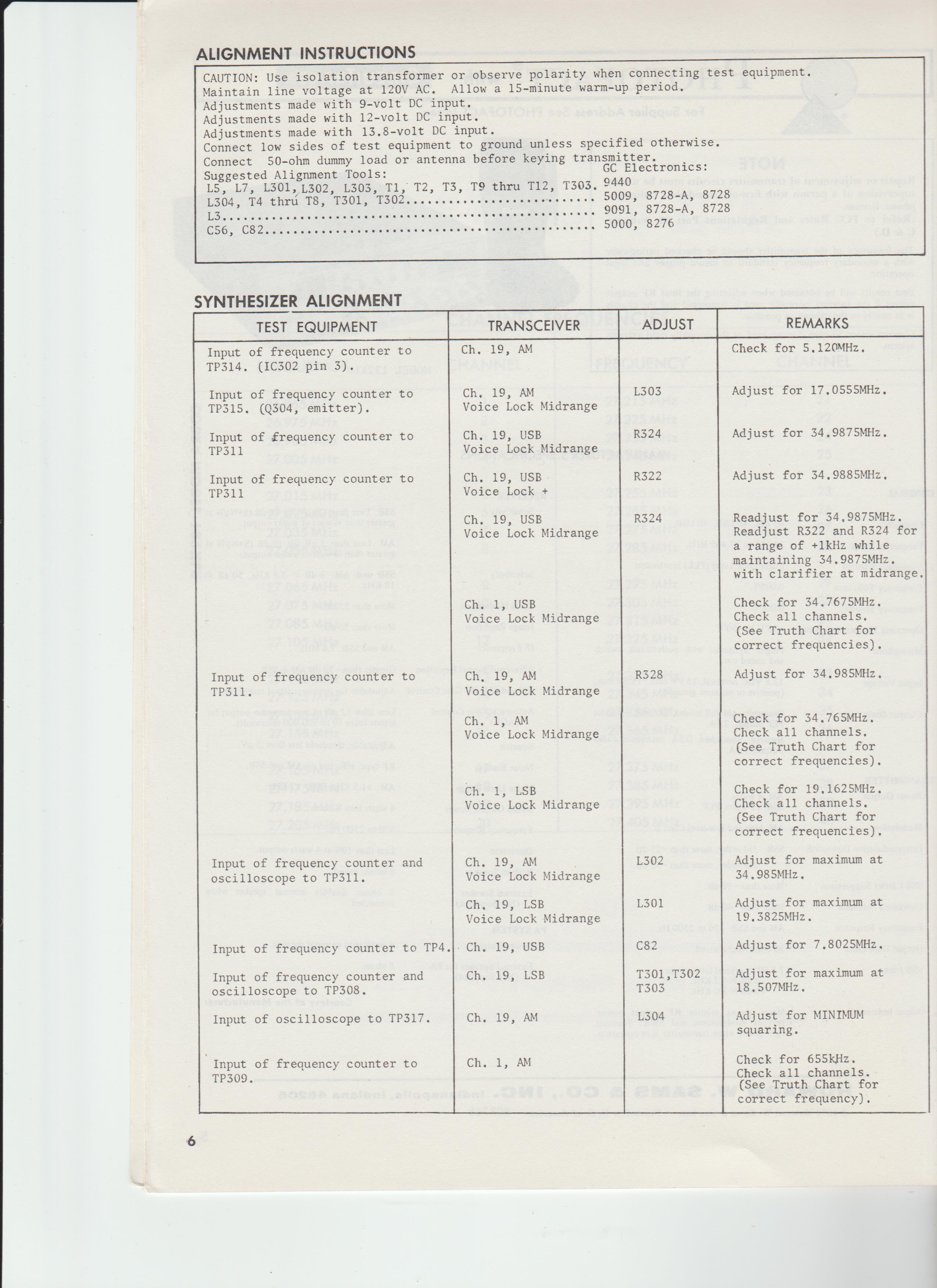

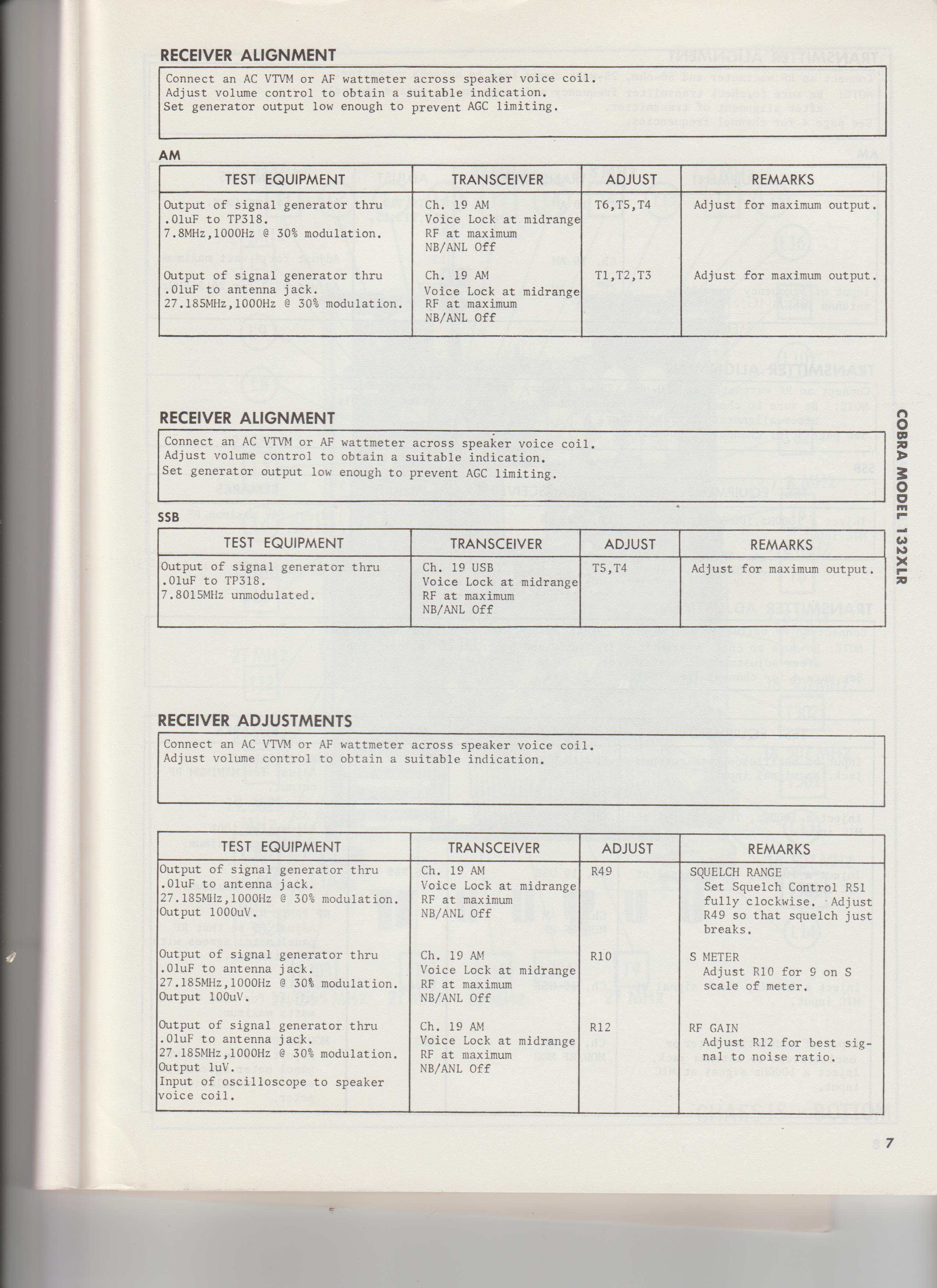

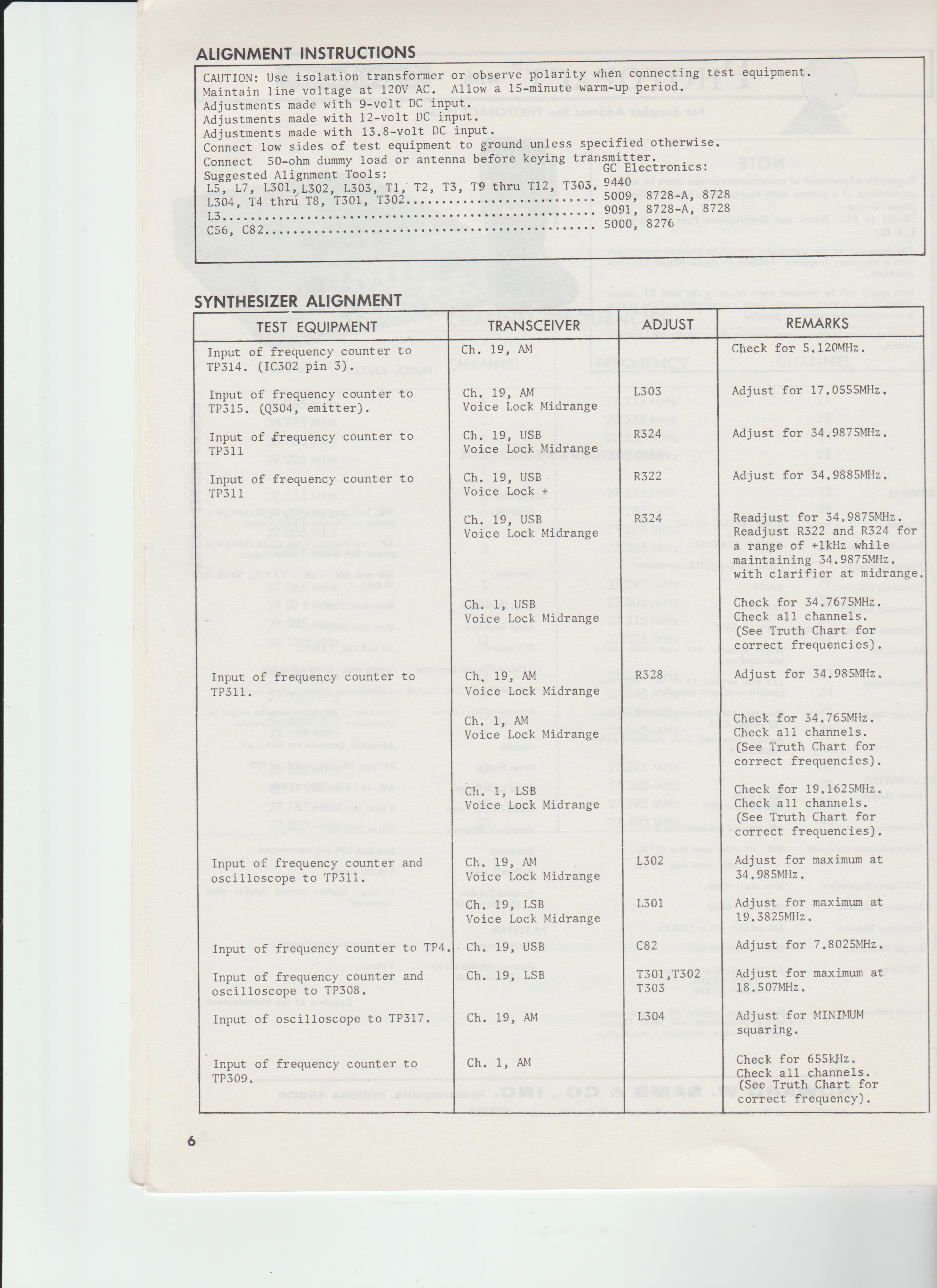

View attachment 19753 View attachment 19754 View attachment 19755



[Cpt shakes]

399, thank you so very much. This is a great Christmas present. Thank you once again so very much. Captain shakes with the wave.



[unit_399]

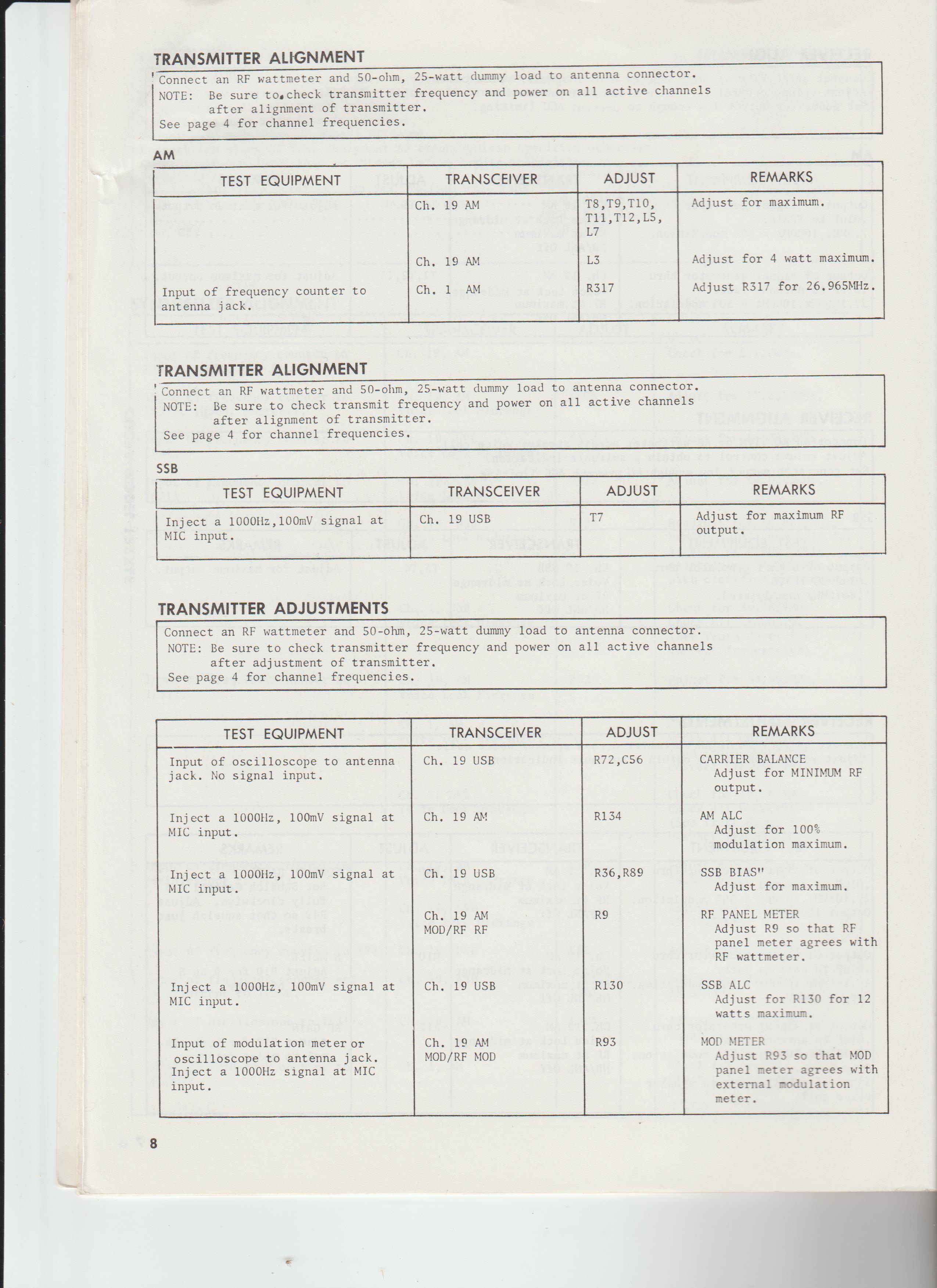

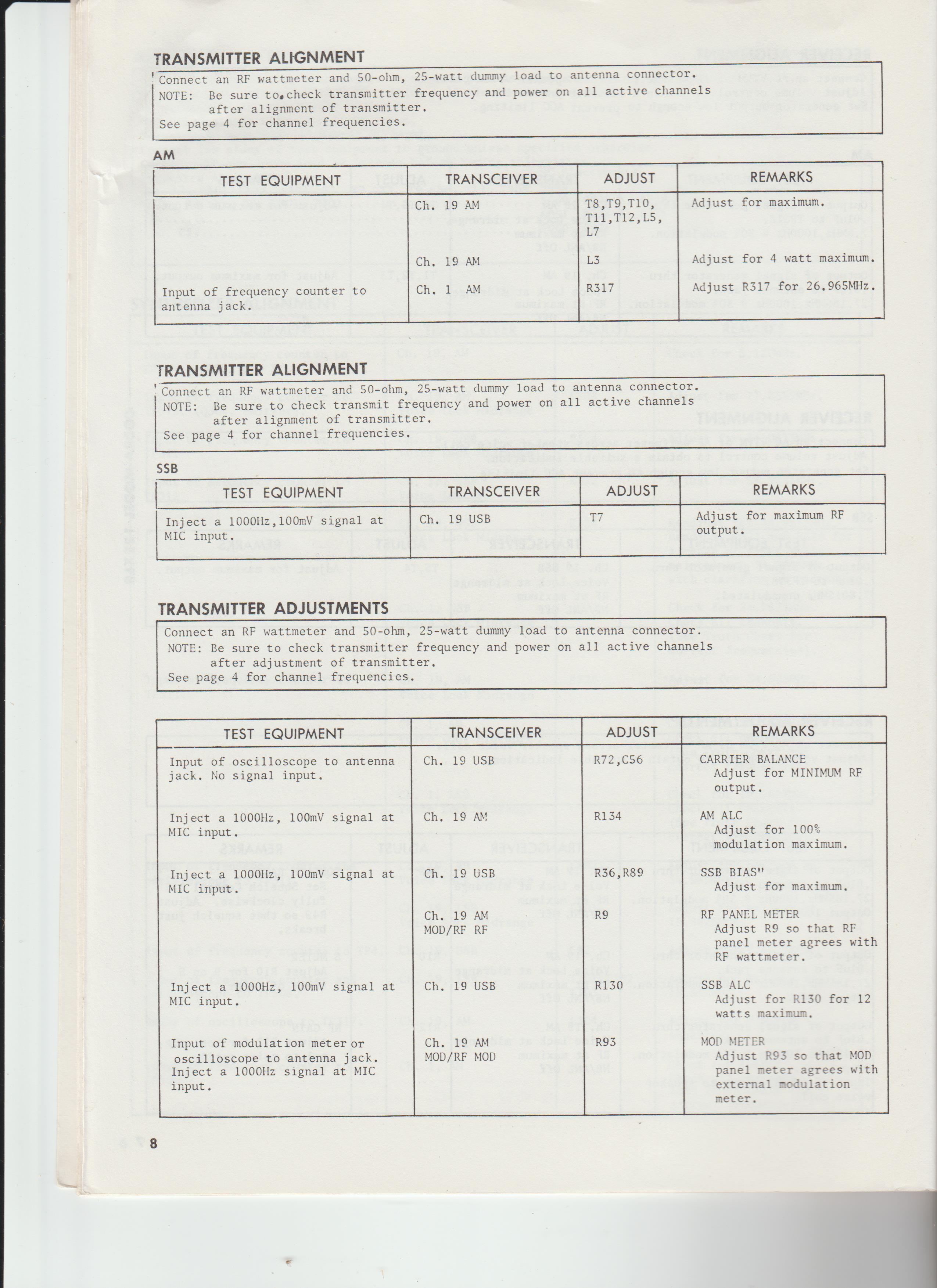

BTW ... On the third page under transmitter adjustments AM, it should say:

Connect 25 watt dummy load to antenna jack. Channel 19, AM Mode. Keyup radio and perform indicated adjustments.

- 399
