Hy gain ph1 phase control box

[nfsus]

http://www.oldtuberadio.com/hy-gain-co-phaser/


Anyone have a schematic? Anyone know what's inside? Anyone have one? I'd love to try one out. The idea is neat. Controlling phase to manipulate the lobes I believe.



[BJ radionut]

hygainphasedverticals.pdf (classicinternational.eu)

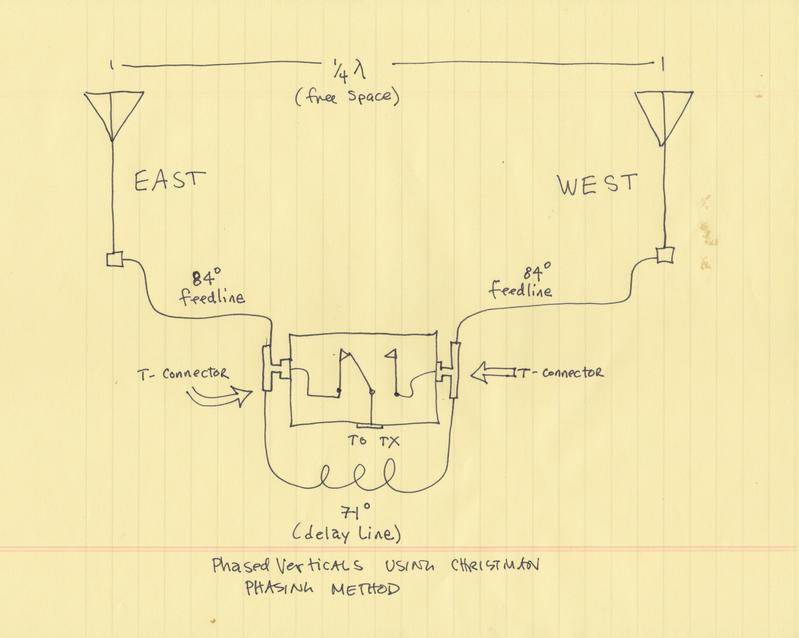

Two Element Phased Verticals (moneysmith.com)



[AudioShockwav]

I think it was Toll Free that had a phased array when he lived over on the coast above Santa Cruz before he moved down south.
Big signals from that set up.

73
Jeff



[Captain Kilowatt]

When first married I ran a pair of 1/4 wave verticals phased to produce a figure 8 pattern broadside. These were inside our upstairs apartment BTW. The operator position was in the middle. Maybe that's what is wrong with me today. LOL

Forgot to add that this was on 10m. The apartment we had was in an old Victorian era home that had really high ceilings and the 10m 1/4 wave fit nicely.



[AudioShockwav]

The operator position was in the middle.

That explains a lot......
( oops did I say that )
Never more than 200 watts for safety.

73
Jeff
