Kenwood TS 430s Module HELP

[Wiskey Delta-40]

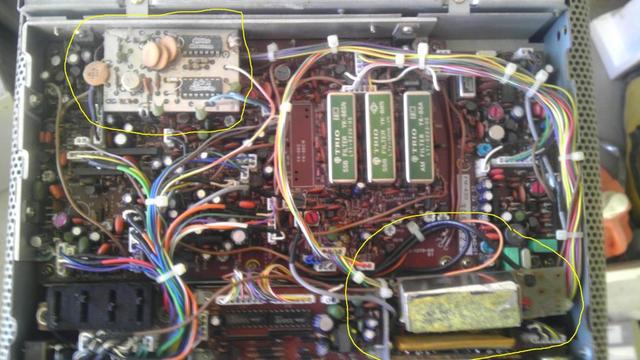

I just got a TS 430s Radio works GREAT chock full of goodies Inc the AM filter and FM board, The guy I got it from said there was 2 extra boards in it and did not remember what they are for? I tryed google for extra boards and what not could not find anything besides the normal mods..


Does ANY ONE recognize these parts and what they do.....

Thnx in advance



[Wiskey Delta-40]

WOW I guess I have a mystery on my hands here



[wavrider]

Maybe some sort of serial interface for digi modes?



[mackmobile43]

I would guess it's a digital recorder for contesting.



[trucker]

Try looking up the part numbers on the two IC's and you can get some idea of what the board is for. Or, if you have the schematic for the radio, follow the leads from the board to see what section of the radio it is hooked up to.
Kind of hard to know otherwise.
trucker



[kd-5-bgt]

One of them could be a tone board for the FM maybe?

I really have no idea,just tossing an idea out there



[mackmobile43]

One of them could be a tone board for the FM maybe?

I really have no idea,just tossing an idea out there

The FM module is the board to the far left.



[Wiskey Delta-40]

Try looking up the part numbers on the two IC's and you can get some idea of what the board is for. Or, if you have the schematic for the radio, follow the leads from the board to see what section of the radio it is hooked up to.
Kind of hard to know otherwise.
trucker

There was no part # on boards first thing I looked for

The FM module is the board to the far left.

The FM board is far right middle pic...



[mackmobile43]

There was no part # on boards first thing I looked for







The FM board is far right middle pic...

Yes I know, it's the same in my TS-430

http://www.worldwidedx.com/attachment.php?attachmentid=6486&stc=1&d=1327459685



[Wiskey Delta-40]

mackmobile: Yes I know, it's the same in my TS-430

AAAAHHHHHH ok you meant your other left......


And THNX for manual



[mackmobile43]

AAAAHHHHHH ok you meant your other left......


And THNX for manual

anytime, you can change the page orientation in your viewer.



[2RT307]

I've never seen anything like that for a 430S. Just wondering, does the rig have any added switches to the front or rear panel, and are there any added jacks?

73,
RT307



[Wiskey Delta-40]

I've never seen anything like that for a 430S. Just wondering, does the rig have any added switches to the front or rear panel, and are there any added jacks?

73,
RT307

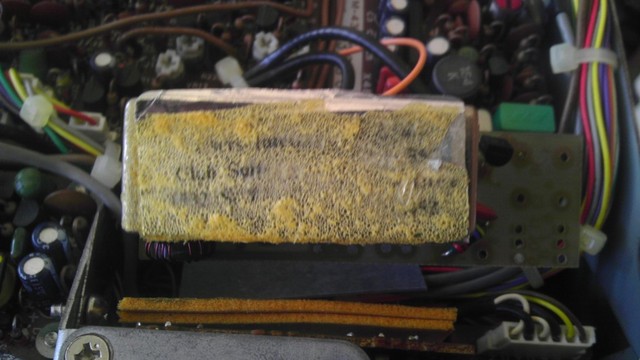

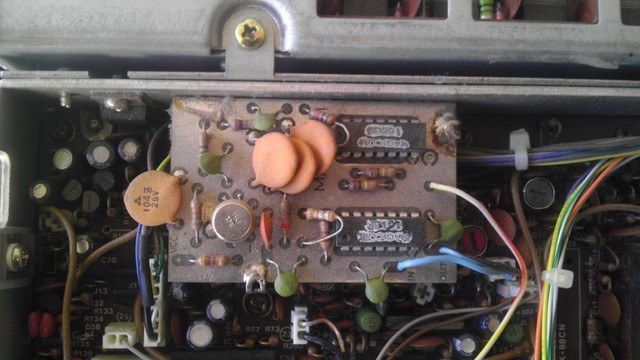

No there is no added switches or extra jacks... From what I can tell the little Board is a roofing filter.. And I had a word with prevous owner again he thinks the bigger board was a added extra speech procosser, You cant have the mic gain past 2 or it will over modulate :blink:



[mackmobile43]

No there is no added switches or extra jacks... From what I can tell the little Board is a roofing filter.. And I had a word with prevous owner again he thinks the bigger board was a added extra speech procosser, You cant have the mic gain past 2 or it will over modulate :blink:

Which microphone are you using and/or are you using the mic's preamp and/or the processor on the radio?



[Wiskey Delta-40]

MC-60 preamp off.. proc on for radio.. even with the Yaesu YD 148 @ 3 is even LOUD that came with the radio


Real touchy on the awww did eeeoooo
