Transformer missing, need voltages for the outboard transformer supply to build.This amp is running 4 6 KD6's, Drivers are 6JF6, 2 of them. If someone has a schematic, I would be over-joyed to have one.Help.
-
You can now help support WorldwideDX when you shop on Amazon at no additional cost to you! Simply follow this Shop on Amazon link first and a portion of any purchase is sent to WorldwideDX to help with site costs.
-
The Retevis Holidays giveaway winner has been selected! Check Here to see who won!

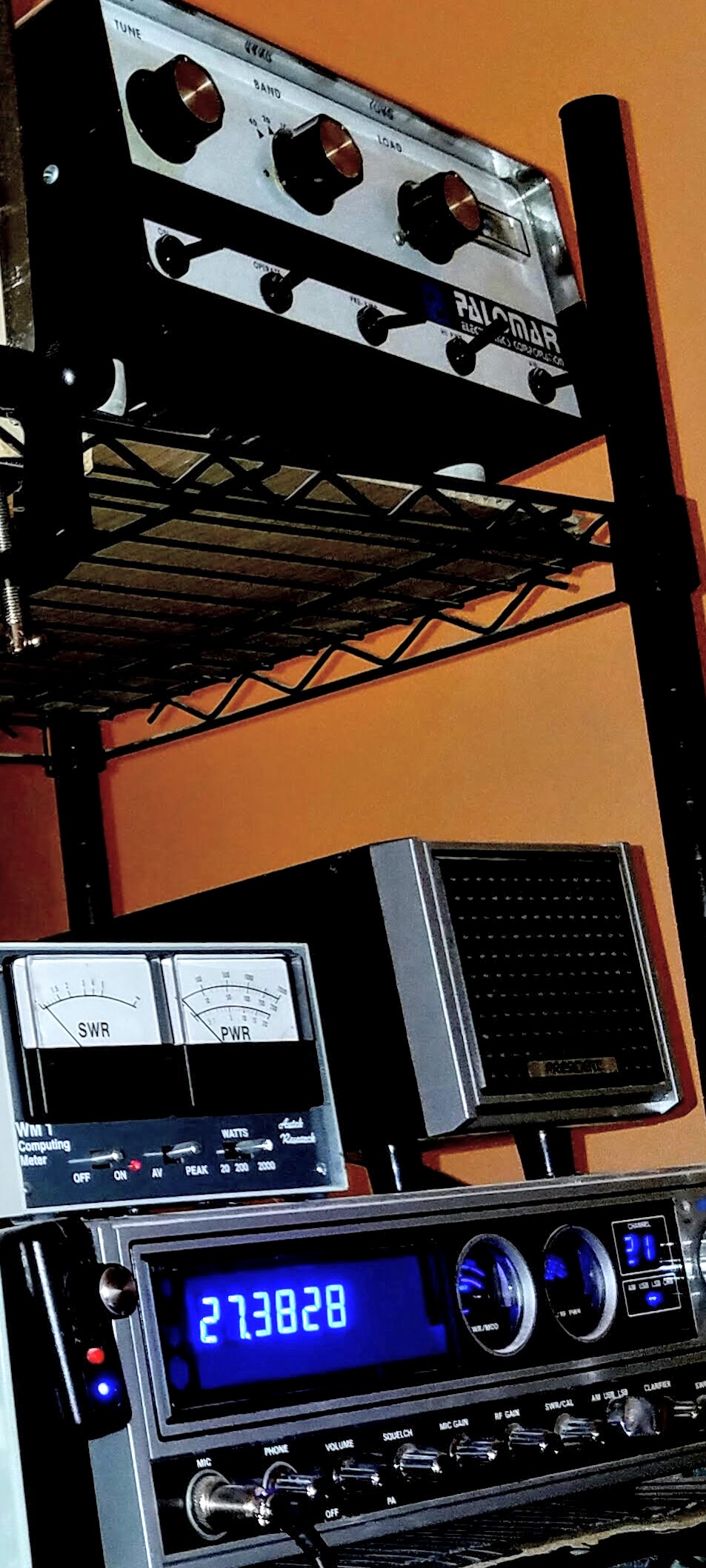

Palomar 300 6 tube amp. This amp has band selector.
- Thread starter Paul Bjarnarson
- Start date
Is it similar to the 300a with two 6lf6 driving 6kd6?
http://www.cbtricks.com/Amp/palomar/300a/graphics/palomar_300a_sch.gif
http://www.cbtricks.com/Amp/palomar/300a/graphics/palomar_300a_sch.gif
It's a terrific CB amp. I've operated one for almost three years straight now. I owned it since 86, but used a maverick back then. I use it with a uniden madiison. I get 500 with 1 1/2 DK and 18 pep on AM. A bit more on SSB with 18 Watts. Mine has two 6kd6's and four 6lf6's. I had it recaped about two years ago not because it needed it, but deserved it. It's an outstanding amp for what it is. The heat dissipation is poor and the Chrome cover gets hotter than hell, but hasn't caused me any issues.I've seen many owner's lift the cover by adding four metal straight brackets to raise.the cover. if you're long winded ypu might consider doing that. I'm glad you found the schematic. I hope you'll post some picitures of the restoration. 73
