Tram D201 handwire, weak receive audio in sideband.

nomadradio

Analog Retentive
I Support WorldwideDX.com!
Apr 3, 2005
7,718
12,669
698
Louisville, KY
www.nomadradio.com
The original Tram D201 base radio was built with the tube sockets mounted to holes punched in the metal chassis. Enthusiasts like to call it the "hand-wire" D201. I prefer the term "open chassis" to distinguish it from the later version with the large circuit boards, hosting all but two of the tube sockets.

This version of the radio suffers from weak receiver volume in SSB mode. A persistent low AC hum is also a chronic complaint. The fix is easy, just use the hookup found in the later circuit-board radio. Makes it look as if Tram discovered their mistake between when the first version was shipped and when the circuit-board revision was worked out.

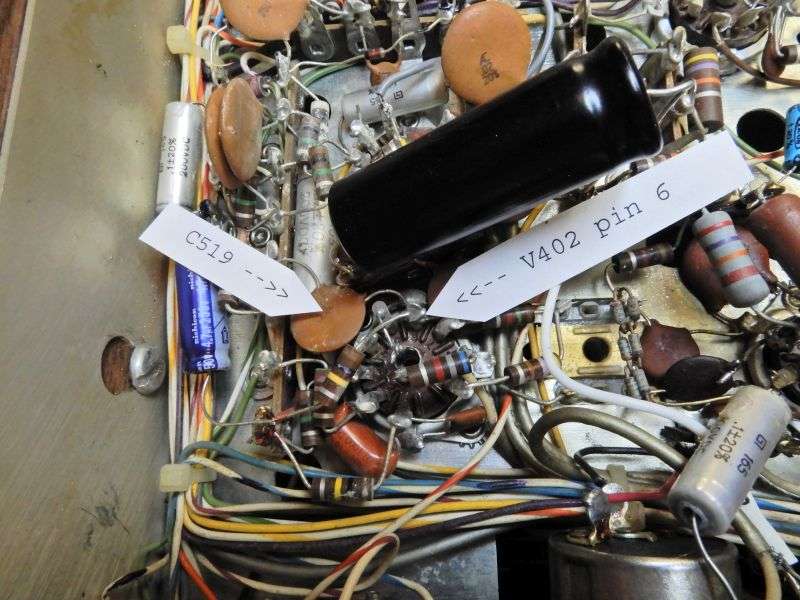

First step is to find V402 near the front-right corner of the chassis. Pin 6 of this tube feeds the SSB receiver audio into the disc cap C519.

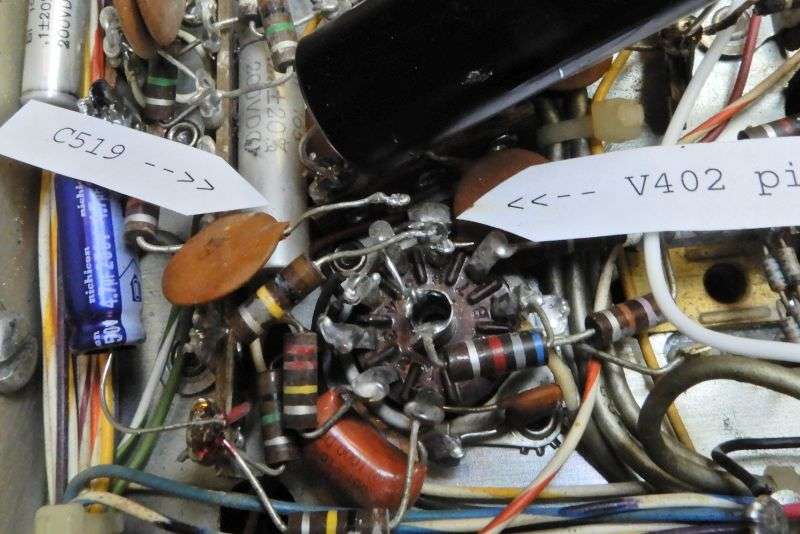

Suck the solder off pin 6 of V402 and unwind the lead of C519 so we can lap solder the end of a wire to it later on. Might want to resolder pin 6 now, just so the remaining components there are firmly connected.

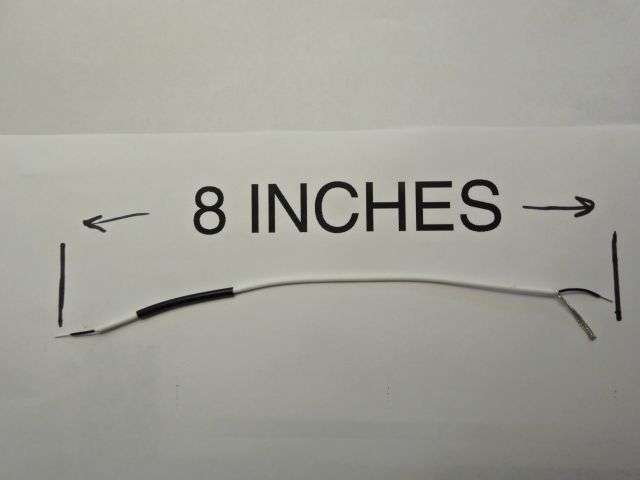

Now you'll need an 8-inch long piece of shielded wire. Strip the end of the center conductor on one end, and clip the braid short to the outer sleeve. Slide a piece of insulating sleeve over this end. The other end needs the center wire and shield separated.

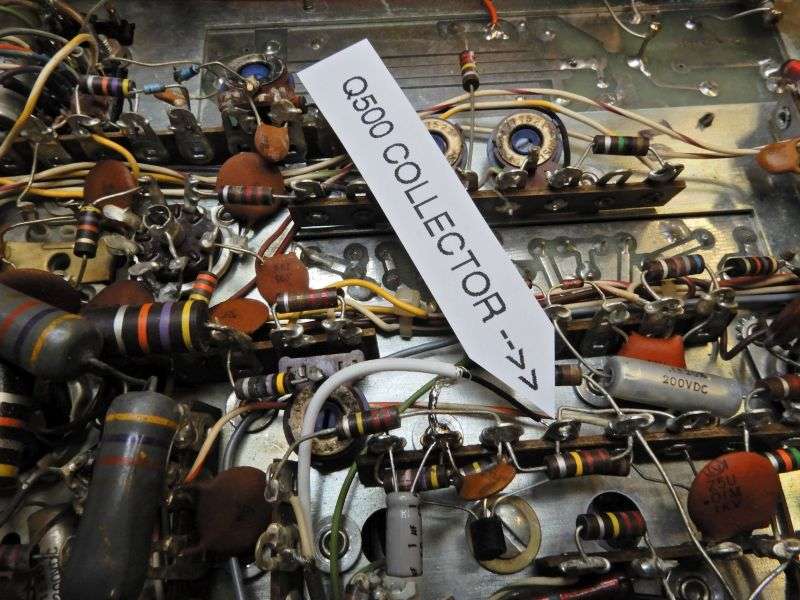

The collector of Q500 is where the center lead of the end with the ground will go. The shield goes to the adjacent ground lug on this tie strip.

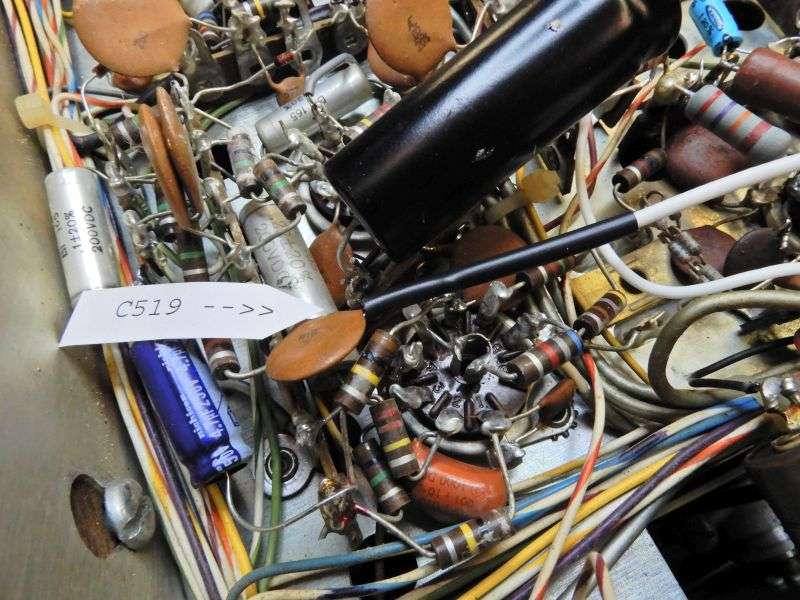

Snake the other end under the other wires to reach the socket of V402. Tinning the stripped end will prevent it from fraying while you push it under the existing wires.

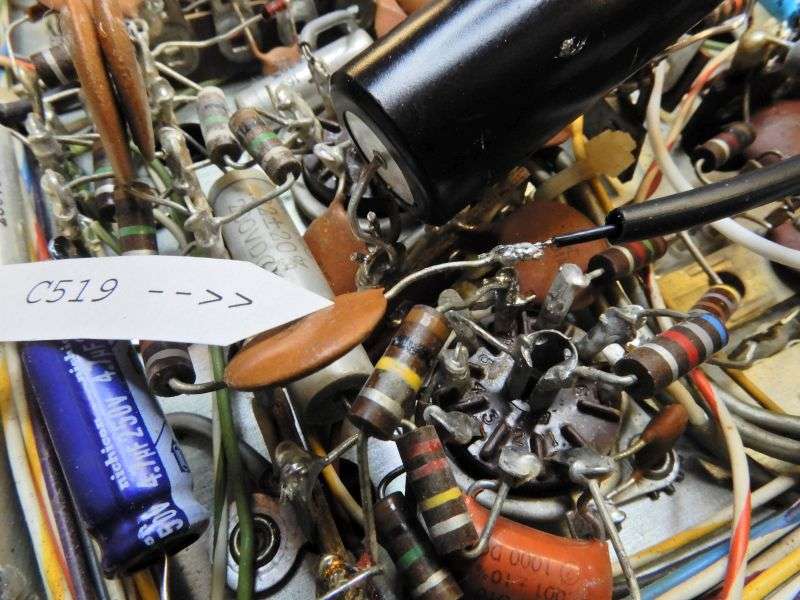

Lap solder it to the end of C519 and slide the sleeve over the splice.



You'll find the sideband receive volume is now equal to AM mode, more or less. And the annoying AC hum will be reduced in a big way.

Oh, and BTW just because the speaker badge has the "Diamond" logo doesn't guarantee that the open-chassis radio is inside. A knob marked "VOX" certainly does. The circuit-board radio lacks that feature altogether. If it has a knob marked "Vox gain" and "Delay" it's the original open-chassis D201. A customer showed up with a "diamond" badged radio thinking he had bought a "hand-wire" radio. Lifting the lid revealed two large circuit boards. Boy was he disappointed when I explained that the diamond logo only shows where the radio was made. The very-first circuit-board D201s were built in New Hampshire. Only then did they move production to Mexico.

73

Last edited:

Thanks Nomad. While mine does not have a noticeable hum, it is lacking in SSB receive volume and I always have to adjust the volume when changing modes. The badge info is interesting too. My VOX Tram with serial number 14135, has the common badge without the diamond. I'm not sure I've even seen another VOX model without it. It also has no warning stickers on the power transformer, or two cross members. The few parts with dates codes on them like the SSB filter are from late 1974.

What are your thoughts on using a shunt regulator to clamp the negative bias voltage on the 6L6 audio tube? When my resistors lost tolerance I did replace that circuit with a Zener buffered by an NPN transistor. It's at -31 volts as I recall. What I noticed is the tube runs cooler while showing a slightly higher peak output but may be a little under biased clamped at this voltage where it did not seem to be the case with the resistors. Thinking of swapping out the Zener for one of those 3 terminal adjustable shunt regulators and try to dial it in better.

What's up with Tram using voltage to align idling bias here anyhow? Shouldn't we be setting for a specific idling current instead? I don't get how setting for voltage compensates for any variables in tubes with these 6L6's?

We just use wirewound resistors for cathode bias. It's more stable and that kind of resistor won't drift resistance value with age.

I adopted a "double or more" power rating policy for this radio to replace resistors that exhibited chronic overheating. A pair of 5-Watt wirewound resistors for cathode bias will be more stable in the long run than fixed grid bias or a fancy zener/transistor for fixed cathode bias. You may sacrifice a little off of the max PEP this way, but the improved reliability is a fair tradeoff IMHO.
