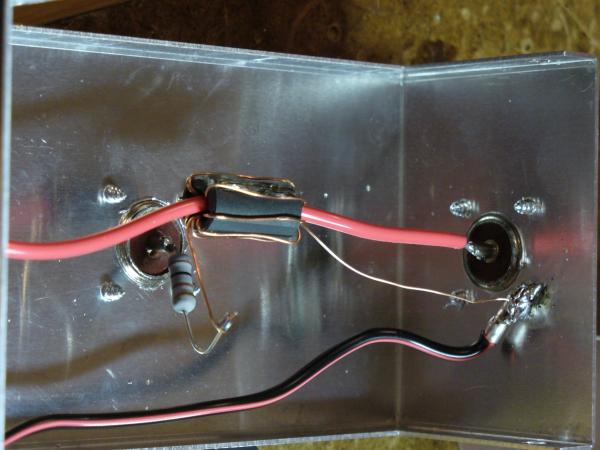

RF sampler that I put together with help from Moleculo

This is my testing station that consists of a 1. Astron VS-35M power supply,2. Conar model 282 signal generator, 3. B&K 35mhz scope,4. Dosy-TC-4002-PS

Finished RF sampler from the previous picture.

RF sampler that I put together with help from Moleculo

Cityboy
Feb 10, 2009

One note about the coil, I cut the windings to 1/2 of which is in the picture per Moleculo. It works great with my scope and for my Fluke frequency counter.
