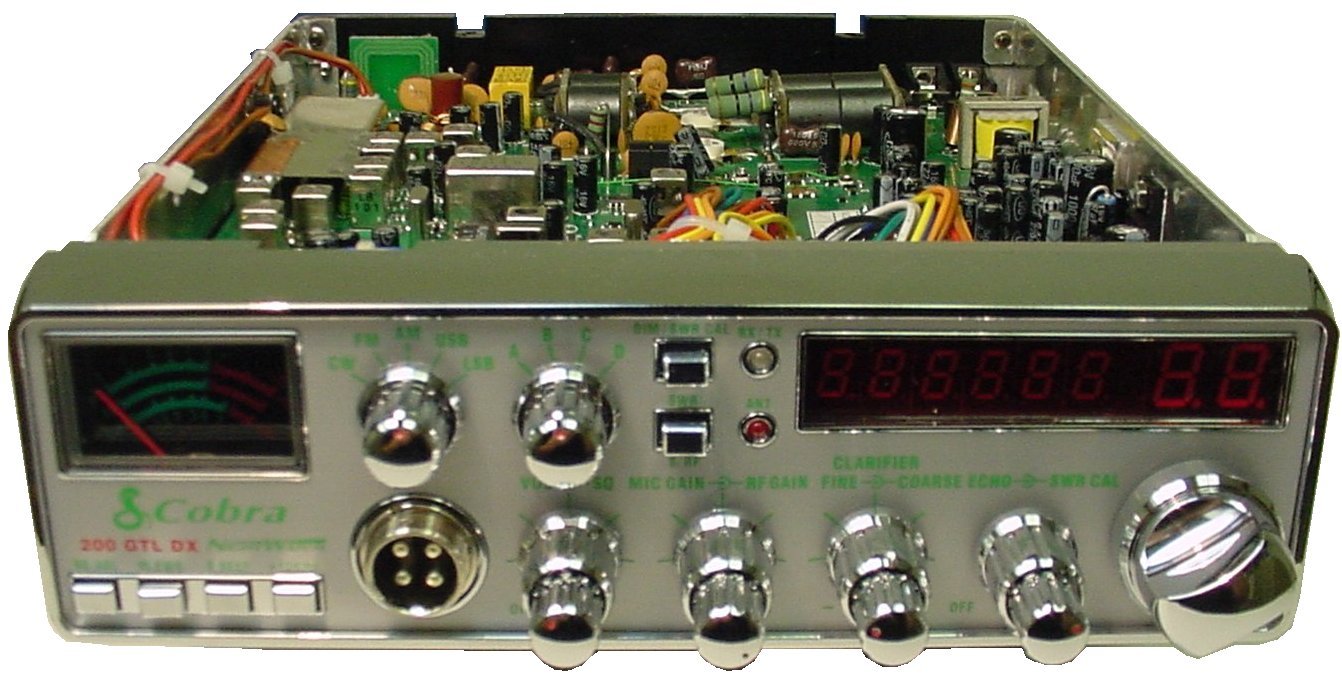

Specifications Sheet

Owner's Manual

Tour of Pictures

RADIO MODIFICATIONS
      Frequency Conversion
      Channel Chart (After Modification) (On One Page)
      Channel Chart (After Modification) (Larger Font on Two Pages)

Service Bulletins

ALIGNMENT PROCEDURES
      Service Manual

SEMICONDUCTOR INFORMATION
     Semiconductor Datasheets

DIAGRAMS
     Schematic Diagram (11x17) (Date 05-24-2005)
     Schematic Diagram (11x17) (Date 09-05-2005)
     EL PCB Diagram

PCB Layouts and Parts
     PCB Layout Top
     PCB Layout Bottom
     Parts List

Mic Wiring

Stock
1- Shield
2- Audio
3- Transmit
4- Receive

Astatic (4 wire)
1- Shield
2- White
3- Red
4- Black

Astatic (6 wire)
1- Shield & Blue
2- White
3- Red
4- Black
Yellow NC

Daiwa EM-500
Cobra CA Series
1- Shield & Black
2- Red
3- White
4- Blue

Galaxy DC-521S (4 wire)
1- Shield
2- Yellow
3- Red
4- Black

Galaxy CB-660EI
1- Shield & Black
2- White
3- Red
4- Blue

Sadelta
1- Shield
2- White
3- Brown
4- Green

Turner
1- Shield & Red
2- White
3- Blue
4- Black
Yellow NC
