Courier Renegade 23
Documentation Project
CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.


Owner's Manual
    Page 1 to 11
    Page 12 to 22

Diagrams

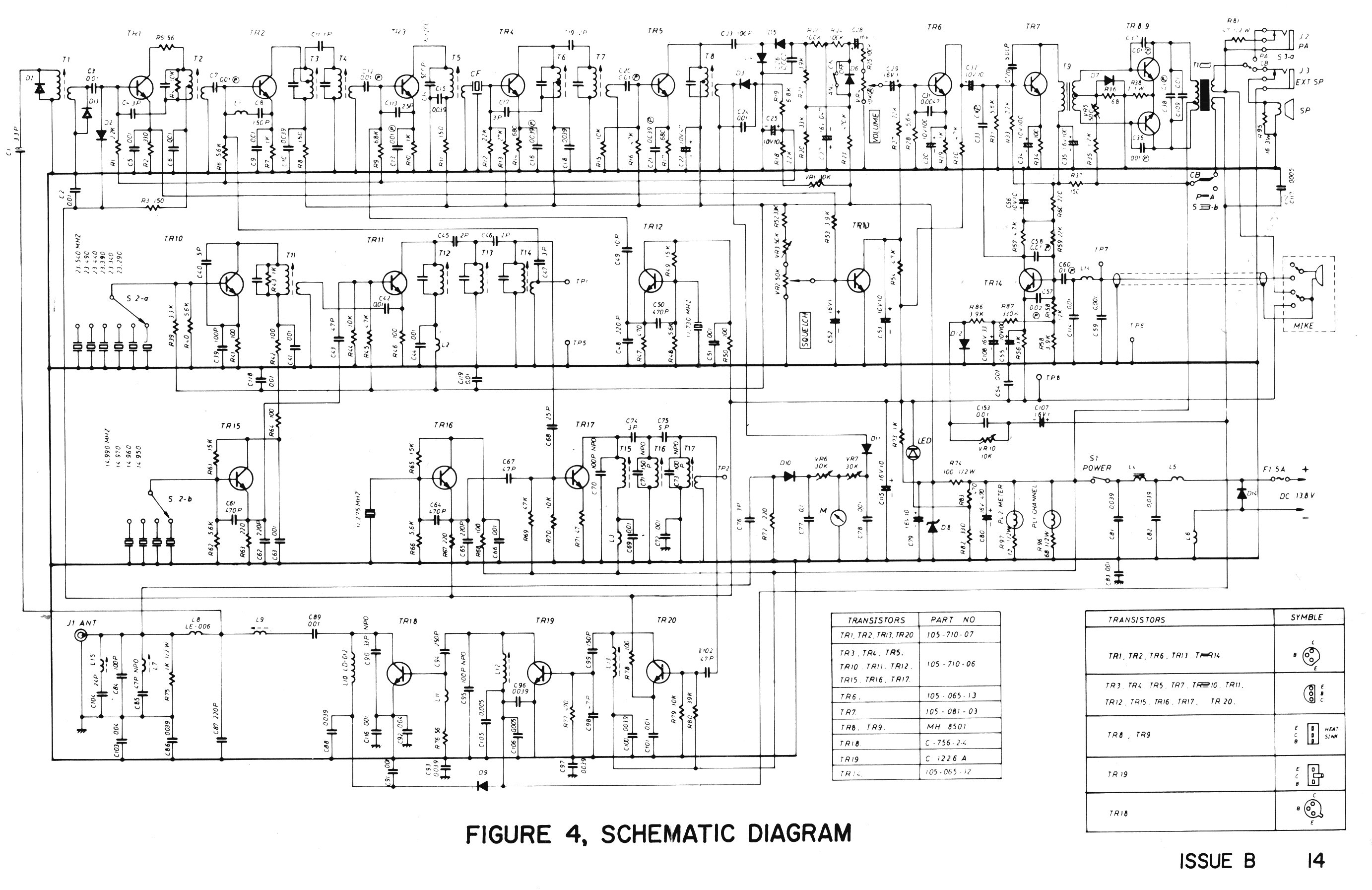

    Schematic (page 14)
    Schematic (page 14)

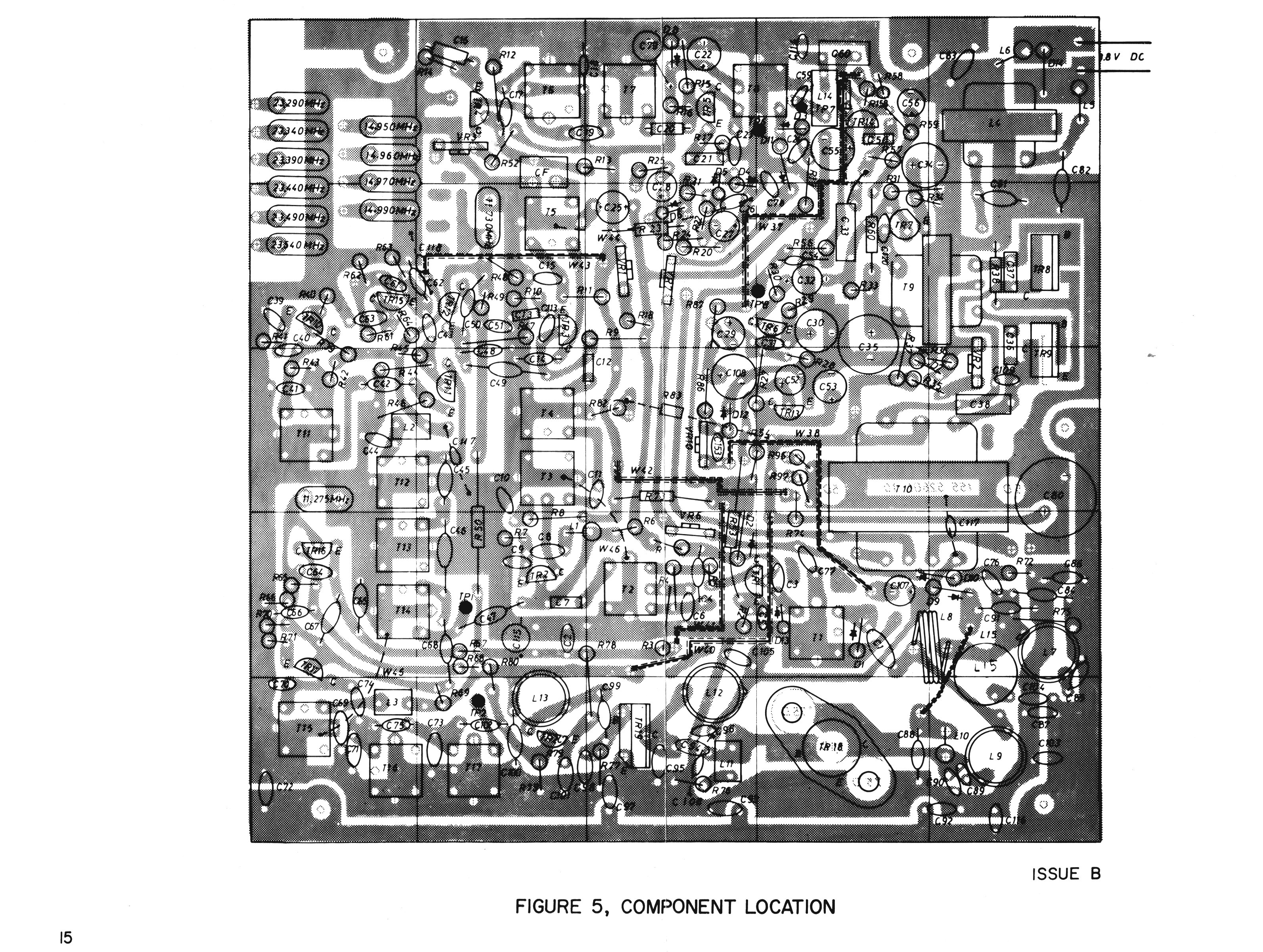

    PCB Layout (Page 15)
    PCB Layout (Page 15)
