Craig L630
Documentation Project

CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.



Service manual

    L630 Service Bulletin# 080178

Diagrams

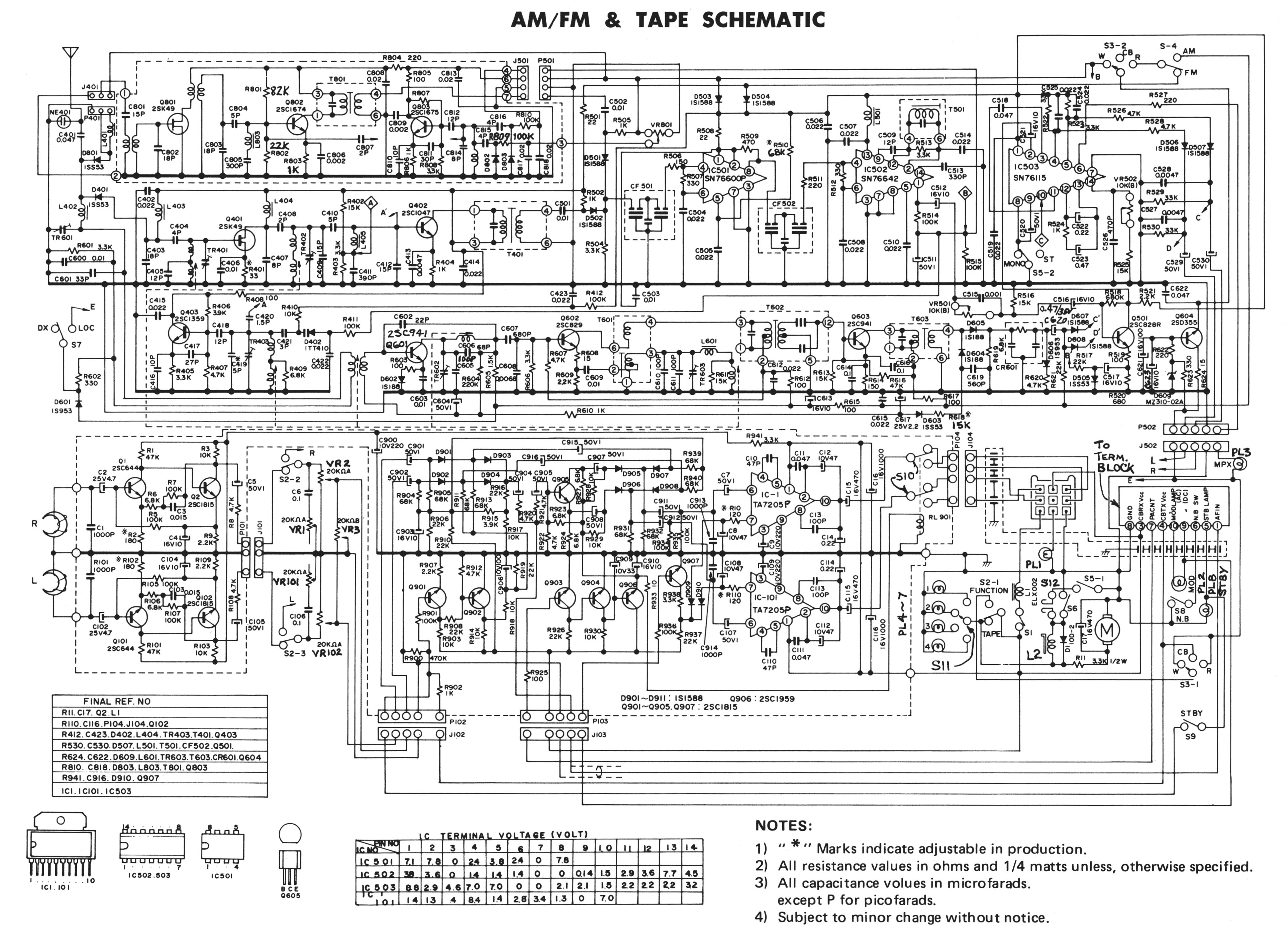

     AM / FM Tape Chassis Schematic Diagram
     AM / FM Tape Chassis Schematic Diagram

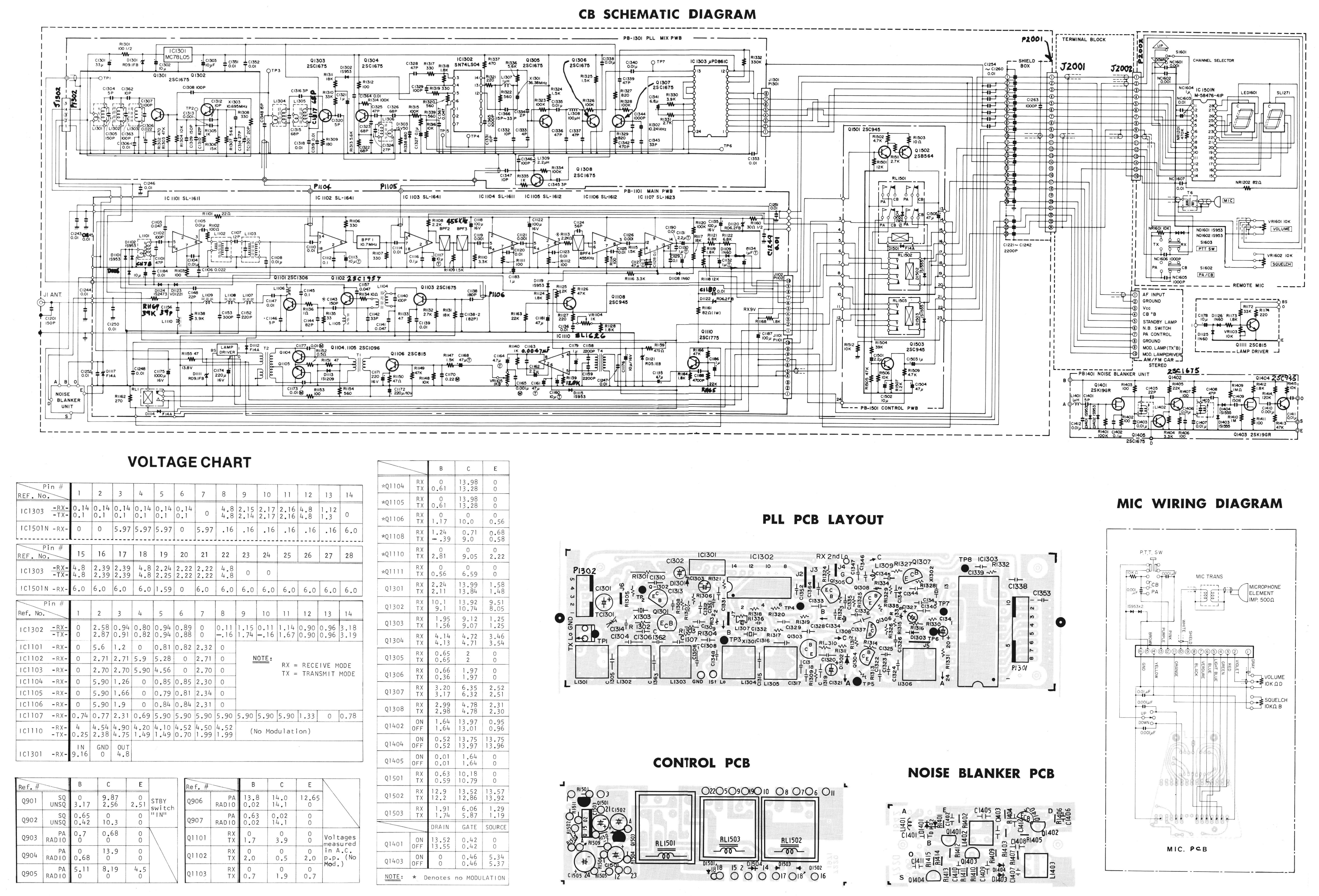

     CB Chassis Schematic Diagram
     CB Chassis Schematic Diagram
