Galaxy DX Radios DX22B
Documentation Project

CBTricks.com

Main PCB (EPT295013Z)

DIAGRAMS

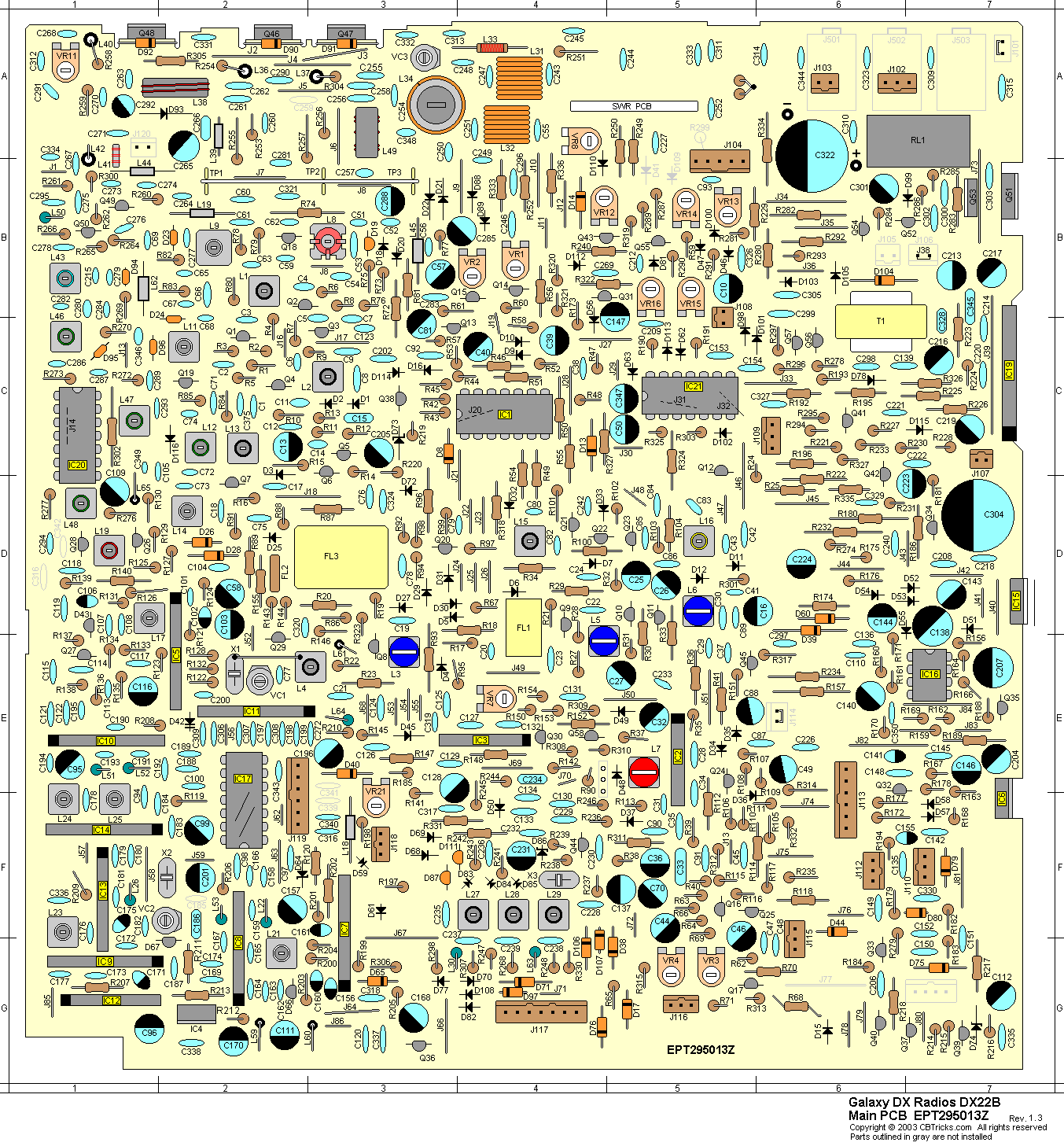

    Main PCB Parts Layout Top View (EPT295013 )

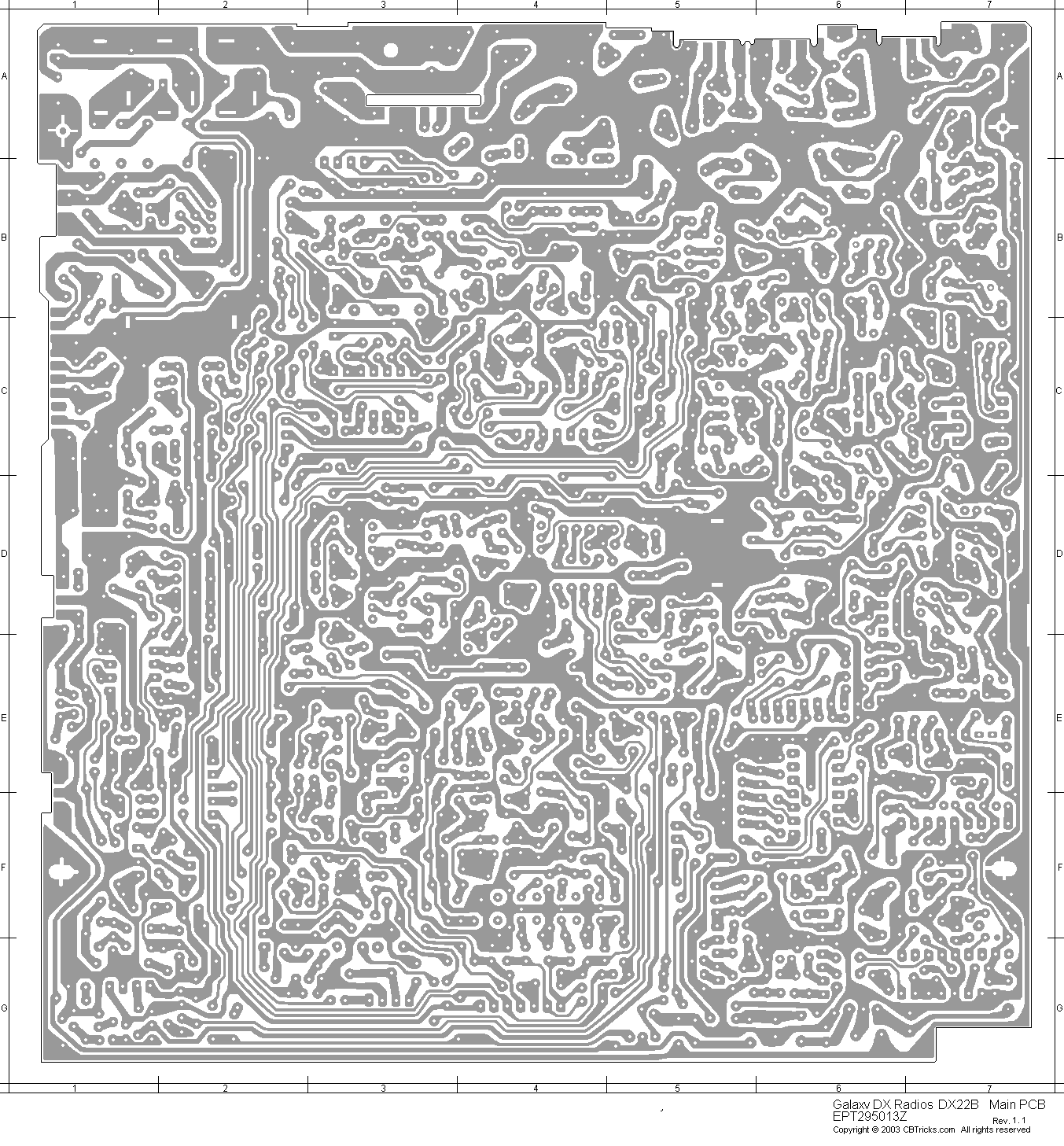

    Main PCB Copper Side View (EPT295013 )

PARTS LISTS Top Side
    Capacitors
    Coils, Transformers, Crystals, Filters
    Resistors
    IC's, Transistors
    Diodes
    Wire, Jumpers, Connectors
    Chassis, Mechanical & Misc.

PARTS LIST Bottom Side
    Main PCB Copper Side Parts Layout

NOTES:
     See: Galaxy DX Radios General Section Notes
              Semiconductor Datasheets Section
