Galaxy
DX Radios DX2517
Documentation Project
CBTricks.com
SWR

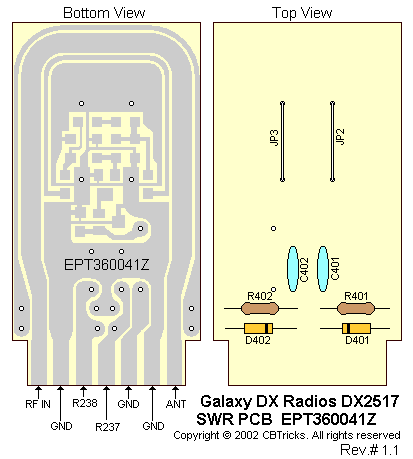

P.C.B. (EPT360041Z)
Schematic
Diagram
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R401 |
C/F/R P-TYPE 120 OHM 1/4W P |
RCP141214Z |
R402 |
C/F/R P-TYPE 100 OHM 1/4W P |
RCP141014Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C401 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C402 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
Diodes
Ref#
|
Description |
MFR.
Part No.
|
D401 |
DIODE DIODE 1N60P |
ED1N00060P |
D402 |
DIODE DIODE 1N60P |
ED1N00060P |
Jumpers
Ref#
|
Description |
MFR.
Part No.
|
JP2
|
JUMPER WIRE 7x10x7 |
WX01070710
|
JP3 |
JUMPER WIRE 7x10x7 |
WX01070710 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
