Galaxy DX Radios DX2527
Documentation Project

CBTricks.com

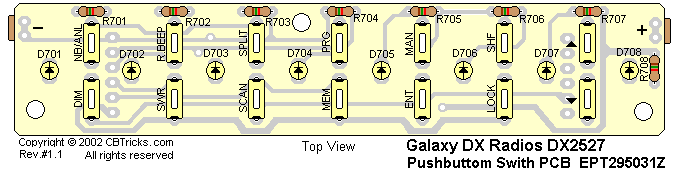

Pushbutton Switch PCB Layout (EPT210031Z)

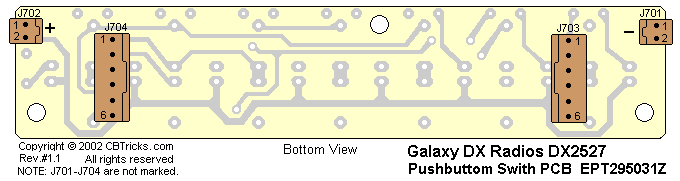

Trace Layout
Schematic Diagram

Ref# Description
MFR. Part No.


Pushbutton Switch PCB EPT295031Z
Complete with Components

#T-106D-P02



Pushbutton Switch PCB

EPT295031Z

Resistors

Ref#
Description
MFR. Part No.
  R701-R708

1.5K 1/16W (P) TYPE

RCP161524Z

Misc.

Ref#
Description
MFR. Part No.


TACT SW JTP-1250

EWPS33042X



IC PIN

EX07N48414



LED YELLOW

EX01N40081

  PCB CONN. SOCK. 6P L= 21.8mm
EX07N48441


RUBBER KEY PANEL

PTTURB010A


Copyright © 1998, 1999, 2000, 2001, 2002, 2003, 2004 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
