Galaxy
DX Radios DX2547
Documentation Project
CBTricks.com

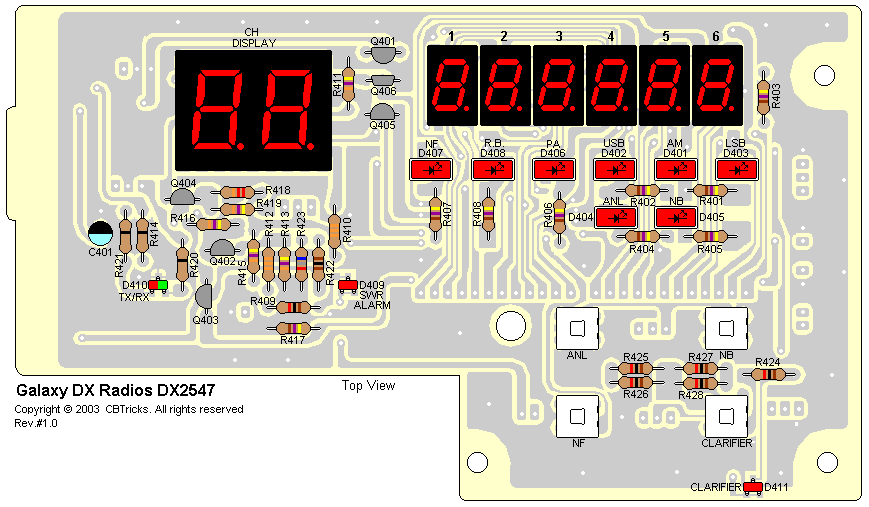

Display PCB. (EPT254740Z)

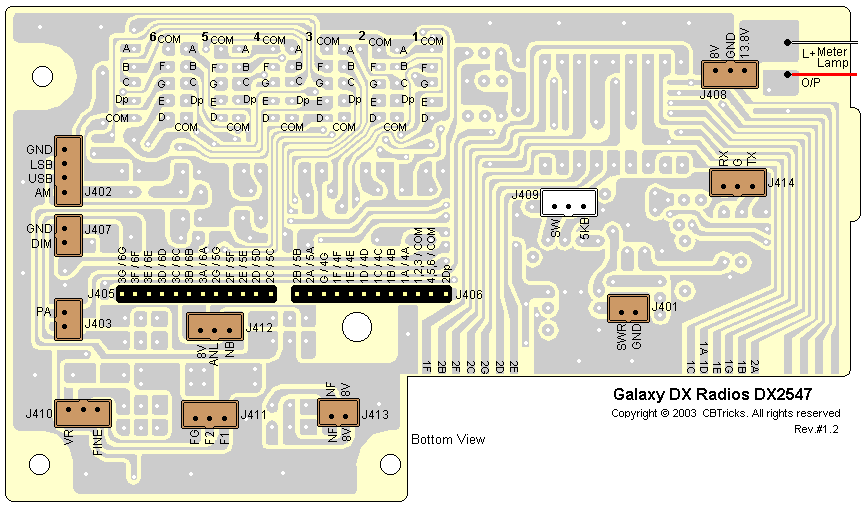

Trace Layout
Ref#
|
Description |
MFR.
Part No.
|
|
DISPLAY (DX-2547) EPT254740Z Complete with Components |
#T-148A-P04 |
|
DISPLAY P.C.B 55x124x1.6tmm (s) |
EPT254740Z |
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R401 |
C/F/R P-TYPE 470 OHM 1/16W P |
RCP164714Z |
R402 |
C/F/R P-TYPE 470 OHM 1/16W P |
RCP164714Z |
R403 |
C/F/R P-TYPE 470 OHM 1/16W P |
RCP164714Z |
R404 |
C/F/R P-TYPE 470 OHM 1/16W P |
RCP164714Z |
R405 |
C/F/R P-TYPE 470 OHM 1/16W P |
RCP164714Z |
R406 |
C/F/R P-TYPE 470 OHM 1/16W P |
RCP164714Z |
R407 |
C/F/R P-TYPE 470 OHM 1/16W P |
RCP164714Z |
R408 |
C/F/R P-TYPE 470 OHM 1/16W P |
RCP164714Z |
R409 |
C/F/R P-TYPE 1K OHM 1/16W P |
RCP161024Z |
R410 |
C/F/R 33K OHM 1/16W P P-TYPE |
RCP163334Z |
R411 |
C/F/R P-TYPE 47K OHM 1/16W P |
RCP164734Z |
R412 |
C/F/R 33K OHM 1/16W P P-TYPE |
RCP163334Z |
R413 |
C/F/R P-TYPE 47K OHM 1/16W P |
RCP164734Z |
R414 |
C/F/R P-TYPE 0 OHM 1/16W P |
RCP160004Z |
R415 |
C/F/R P-TYPE 47K OHM 1/16W P |
RCP164734Z |
R416 |
C/F/R P-TYPE 47K OHM 1/16W P |
RCP164734Z |
R417 |
C/F/R P-TYPE 470 OHM 1/16W P |
RCP164714Z |
R418 |
C/F/R 22K OHM 1/16W P |
RCP162234Z |
R419 |
C/F/R P-TYPE 47K OHM 1/16W P |
RCP164734Z |
R420 |
C/F/R P-TYPE 0 OHM 1/16W P |
RCP160004Z |
R421 |
C/F/R P-TYPE 0 OHM 1/16W P |
RCP160004Z |
R422 |
C/F/R P-TYPE 100 OHM 1/16W P |
RCP161014Z |
R423 |
C/F/R 6.8K OHM 1/16W P |
RCP166824Z |
R424 |
C/F/R P-TYPE 1K OHM 1/16W P |
RCP161024Z |
R425 |
C/F/R P-TYPE 1K OHM 1/16W P |
RCP161024Z |
R426 |
C/F/R P-TYPE 1K OHM 1/16W P |
RCP161024Z |
R427 |
C/F/R P-TYPE 1K OHM 1/16W P |
RCP161024Z |
R428 |
C/F/R P-TYPE 1K OHM 1/16W P |
RCP161024Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C401 |
E/C 47UF 16WV Z (MINI) |
CEM164767Z |
LED's
Ref#
|
Description |
MFR.
Part No.
|
D401 |
LED RED |
EX01N40090 |
D402 |
LED RED |
EX01N40090 |
D403 |
LED RED |
EX01N40090 |
D404 |
LED RED |
EX01N40090 |
D405 |
LED RED |
EX01N40090 |
D406 |
LED RED |
EX01N40090 |
D407 |
LED RED |
EX01N40090 |
D408 |
LED RED |
EX01N40090 |
D409 |
LED LAMPS (SMD) KM-23IT(RED) |
EX01Y40116 |
D410 |
LED LAMPS (SMD) KM-23ESGCRED/GREEN |
EX01Y40114 |
D411 |
LED LAMPS (SMD) KM-23IT(RED) |
EX01Y40116 |
|
LED DISPLAY (RED) LDD5061-10/P10 |
EX03N40488 |
|
LED DISPLAY TOS-3121BH-4B(RED)(11.7) |
EX03N40492 |
Transistors
Ref#
|
Description |
MFR.
Part No.
|
Q401 |
T/R 2SC945P |
T2SC00945P |
Q402 |
T/R 2SC945P |
T2SC00945P |
Q403 |
T/R 2SC945P |
T2SC00945P |
Q404 |
T/R 2SC945P |
T2SC00945P |
Q405 |
T/R DTC124ESATP |
TDTC0124ES |
Q406 |
T/R DTC124ESATP |
TDTC0124ES |
Switch
Ref#
|
Description |
MFR.
Part No.
|
|
PUSH SW SPPH21226A |
EWPS33033X |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
|
MIC JACK 4P |
EX06N41101 |
|
|
|
J401 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J402 |
PCB CONNECTOR/S 4P PH=2MM |
EX07N48490 |
J403 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J405 |
PCB CONNECTOR/S 12P PH=2mm |
EX07N48928 |
J406 |
PCB CONNECTOR/S 12P PH=2mm |
EX07N48928 |
J407 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J408 |
PCB CONNECTOR/S 3P PH=2MM 6 |
EX07N48350 |
J409 |
PCB CONNECTOR/S 3P PH=2MM (WHITE) |
EX07W48824 |
J410 |
PCB CONNECTOR/S 3P PH=2MM 6 |
EX07N48350 |
J411 |
PCB CONNECTOR/S 3P PH=2MM 6 |
EX07N48350 |
J412 |
PCB CONNECTOR/S 3P PH=2MM 6 |
EX07N48350 |
J413 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J414 |
PCB CONNECTOR/S 3P PH=2MM 6 |
EX07N48350 |
