Galaxy DX Radios DX33HP (MOSFET Final)
Documentation Project

CBTricks.com

Main PCB (EPT360014B)

Ref#
Description
MFR. Part No.


MAIN P.C.B. Complete with Components (DX-33HP)

#MT-140I1-P01



MAIN P.C.B.

EPT360014B

DIAGRAMS
    EPT360014B

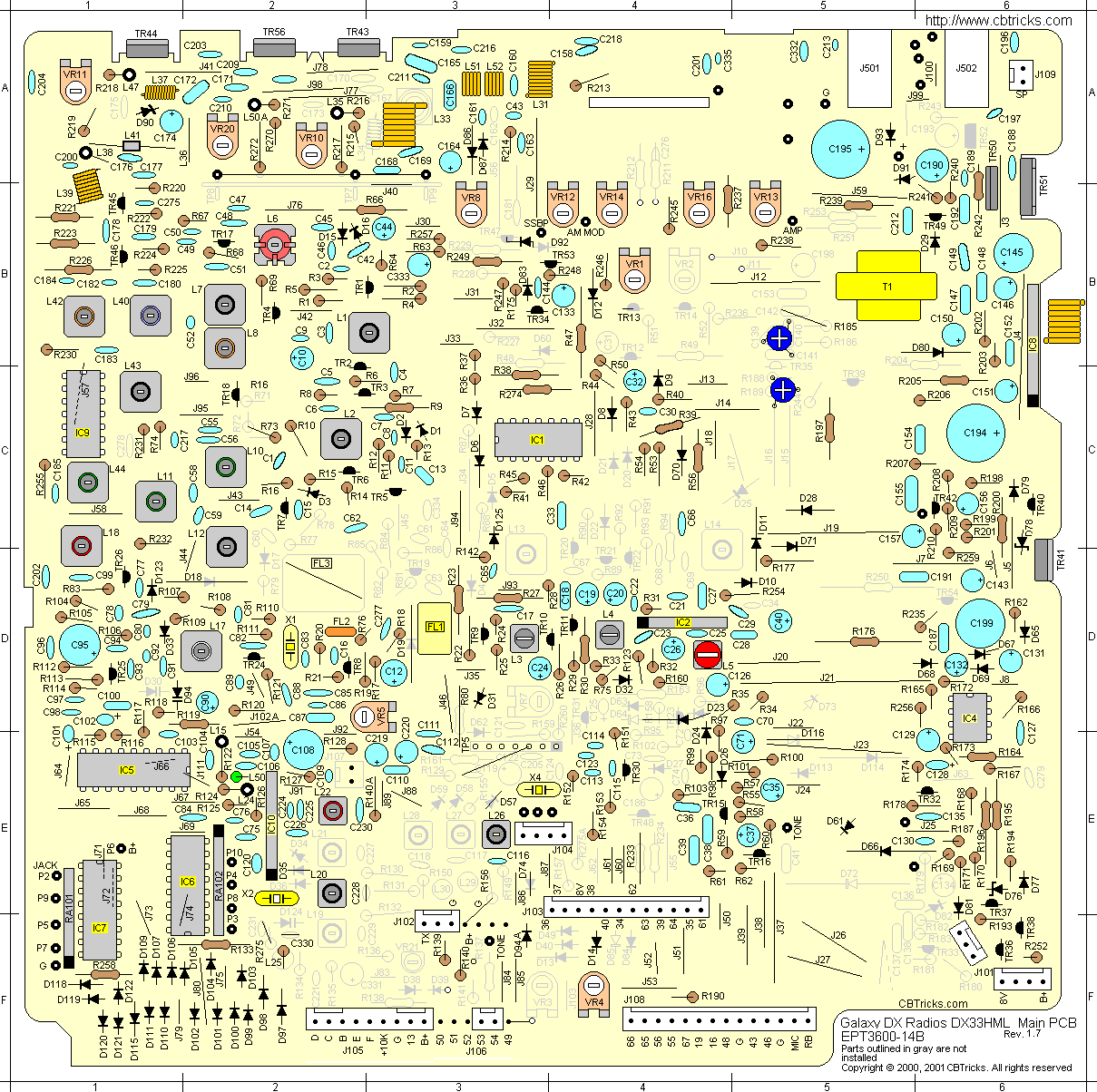

    Main PCB Parts Layout Top View (EPT360014B)

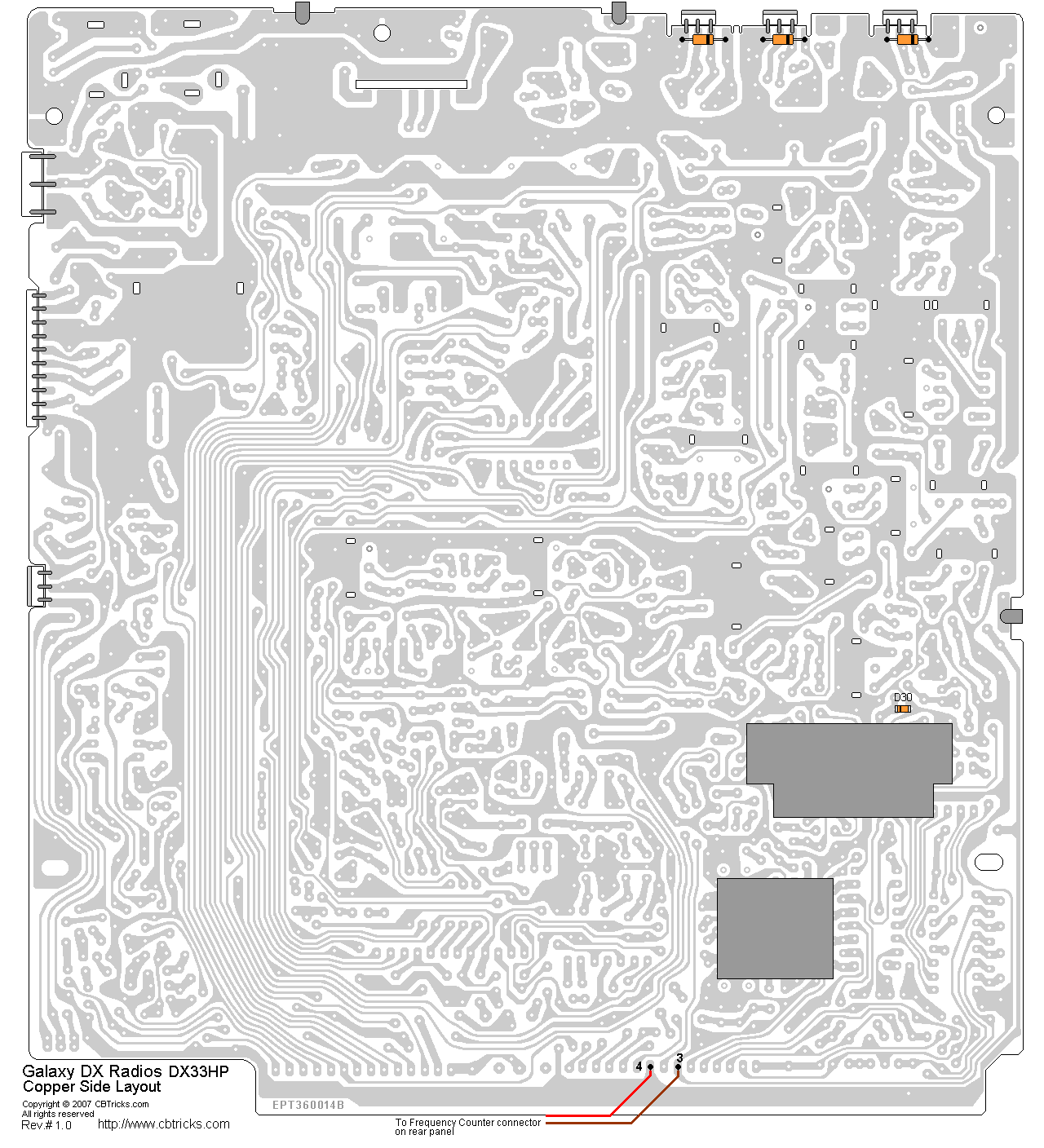

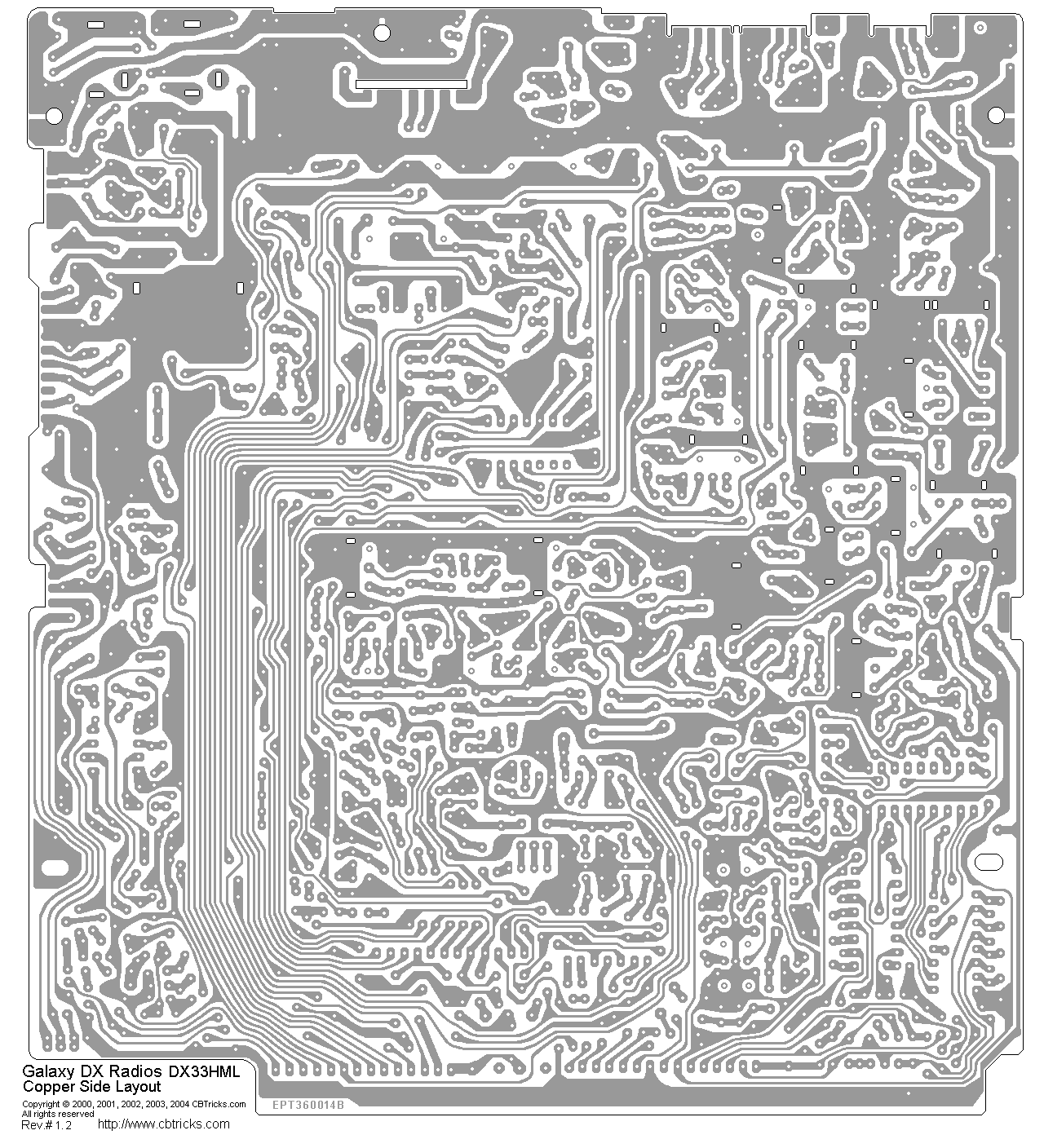

    Main PCB Copper Side View (EPT360014B)
    Main PCB Parts Layout Bottom View (EPT360014B)

PARTS LISTS Top Side
    Capacitors
    Coils, Transformers, Crystals, Filters
    Resistors
    IC's, Transistors
    Diodes
    Wire , Jumpers and Connectors

PARTS LIST Bottom Side
    Copper Side Parts

NOTES:
     See: Galaxy DX Radios General Section Notes
              Semiconductor Datasheets Section
