Galaxy
DX Radios DX45MP
Documentation Project
CBTricks.com
Channel Selector PCB
(EPT48T22Z)

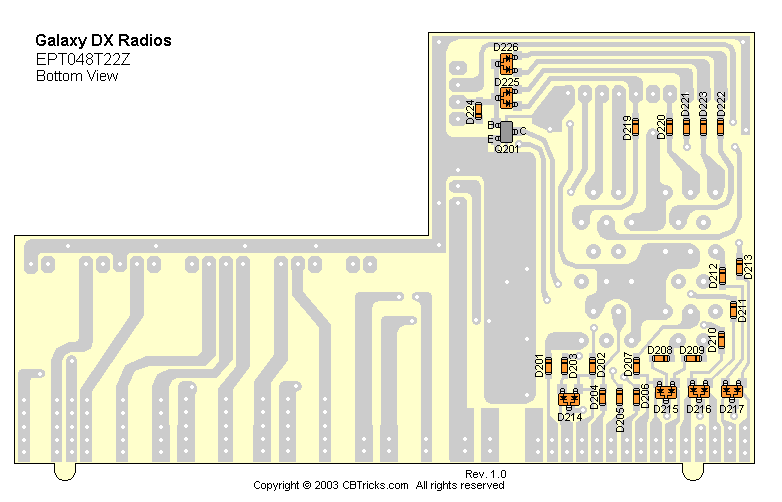

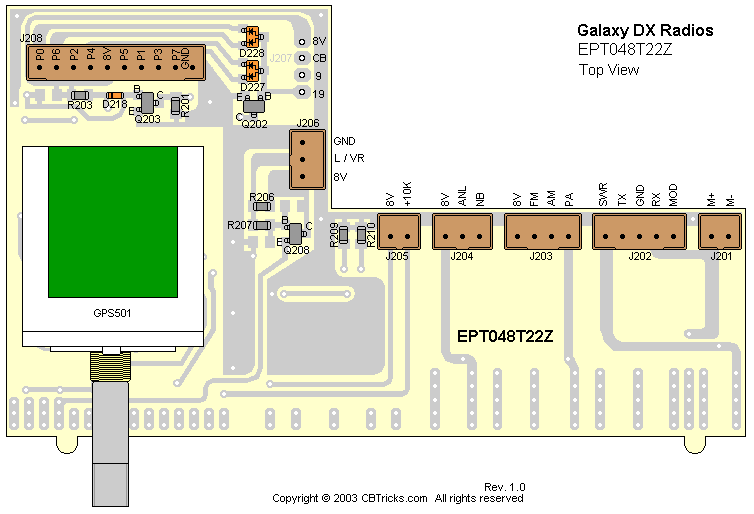

Trace Layout
Parts List
Resistors
|
Ref#
|
Description | MFR. Part No. |
|
R201 |
CHIP/F/R (S.M.D) 0 OHM 0.1W(0805) |
RCY010004Z |
|
R203 |
CHIP/F/R (S.M.D) 0 OHM 0.1W(0805) |
RCY010004Z |
|
R206 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
|
R207 |
CHIP/F/R(SMD) 0805 6.8K OHM 0.1W |
RCY016824Z |
|
R209 |
CHIP/F/R(SMD) 0805 1.5K OHM 0.1W |
RCY011524Z |
|
R210 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
Diodes
|
Ref#
|
Description | MFR. Part No. |
|
D201 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D202 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D203 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D204 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D205 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D206 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D207 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D208 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D209 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D210 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D211 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D212 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D213 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D214 |
DIODE (S.M.D.) 1SS184-TE85L |
EDSS00184Y |
|
D215 |
DIODE (S.M.D.) 1SS184-TE85L |
EDSS00184Y |
|
D216 |
DIODE (S.M.D.) 1SS184-TE85L |
EDSS00184Y |
|
D217 |
DIODE (S.M.D.) 1SS184-TE85L |
EDSS00184Y |
|
D218 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D219 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D220 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D221 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D222 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D223 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D224 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
|
D225 |
DIODE (S.M.D.) 1SS181 -TE85L |
EDSS00181Y |
|
D226 |
DIODE (S.M.D.) 1SS181 -TE85L |
EDSS00181Y |
|
D227 |
DIODE (S.M.D.) 1SS181 -TE85L |
EDSS00181Y |
|
D228 |
DIODE (S.M.D.) 1SS181 -TE85L |
EDSS00181Y |
Transistors
|
Ref#
|
Description | MFR. Part No. |
|
Q201 |
TRANSISTOR(S.M.D.) RN1403 -TE85L |
TYZRN1403Z |
|
Q202 |
TRANSISTOR(S.M.D.) RN1403 -TE85L |
TYZRN1403Z |
|
Q203 |
TRANSISTOR(S.M.D.) RN1403 -TE85L |
TYZRN1403Z |
|
Q208 |
TRANSISTOR(S.M.D.) 2SC2712GR-TE85L |
TY2SC2712G |
Connectors
|
Ref#
|
Description | MFR. Part No. |
|
J201 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J202 |
PCB CONNECTOR/S 5P PH=2MM |
EX07N48222 |
|
J203 |
PCB CONNECTOR/S 4P PH=2MM |
EX07N48490 |
|
J204 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J205 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J206 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J208 |
PCB CONNECTOR/S 10P PH=2 |
EX07N48209 |
Switch
|
Ref#
|
Description | MFR. Part No. |
|
Channel Sel. |
ROTARY SW GPS-0501 |
EWRT32000S |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
