Galaxy DX Radios DX919
Documentation Project

CBTricks.com

MODULAR 005 RCI-6130
Schematic Diagram



Ref#

Description

MFR. Part No.



MODULAR 005 RCI-6130
Complete with Components

#F-005

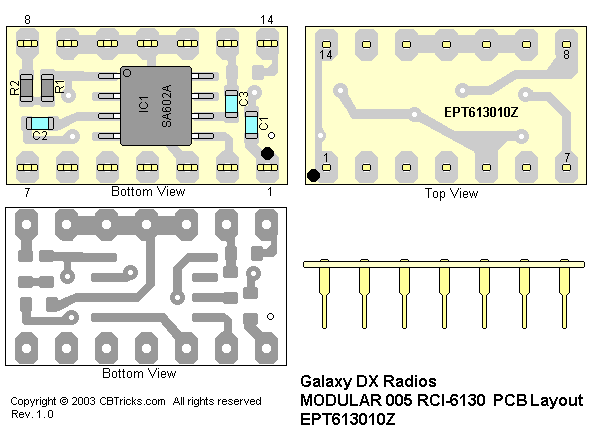

RCI-6130 P.C.B. 18x10x1.0tmm (d).

EPT613010Z

 Resistors

Ref#

Description

MFR. Part No.

R1

CHIP/F/R (SMD) 22K OHM

RCY062234Z

R2

CHIP/F/R (SMD) 22K OHM

RCY062234Z

Capacitors

Ref#

Description

MFR. Part No.

C1

CHIP/C 0.001UF 50WV K X7R

CK1102AD5X

C2

CHIP/C 0.01UF 50WV K X7R

CK1103AD5X

C3

CHIP/C 0.001UF 50WV K X7R

CK1102AD5X

Integrated Circuits

Ref#

Description

MFR. Part No.

IC1

I.C.(PHILIPS) (SMD) SA602A 8PIN

YNPH00602A

IC Pin

Ref#

Description

MFR. Part No.



IC PIN

GZZZ50207Z


Copyright © 2003 CBTricks.com
