Galaxy
DX Radios DX919
Documentation Project
CBTricks.com
Main PCB Layout (EPT092912Z, EPT092913Z )
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
MAIN PCB (DX-919) EPT092912Z, EPT92913Z |
#T-145W-P01 |
|
|
MAIN P.C.B. 199x169x1.6tmm (S) |
EPT092913Z |
DIAGRAMS
Main

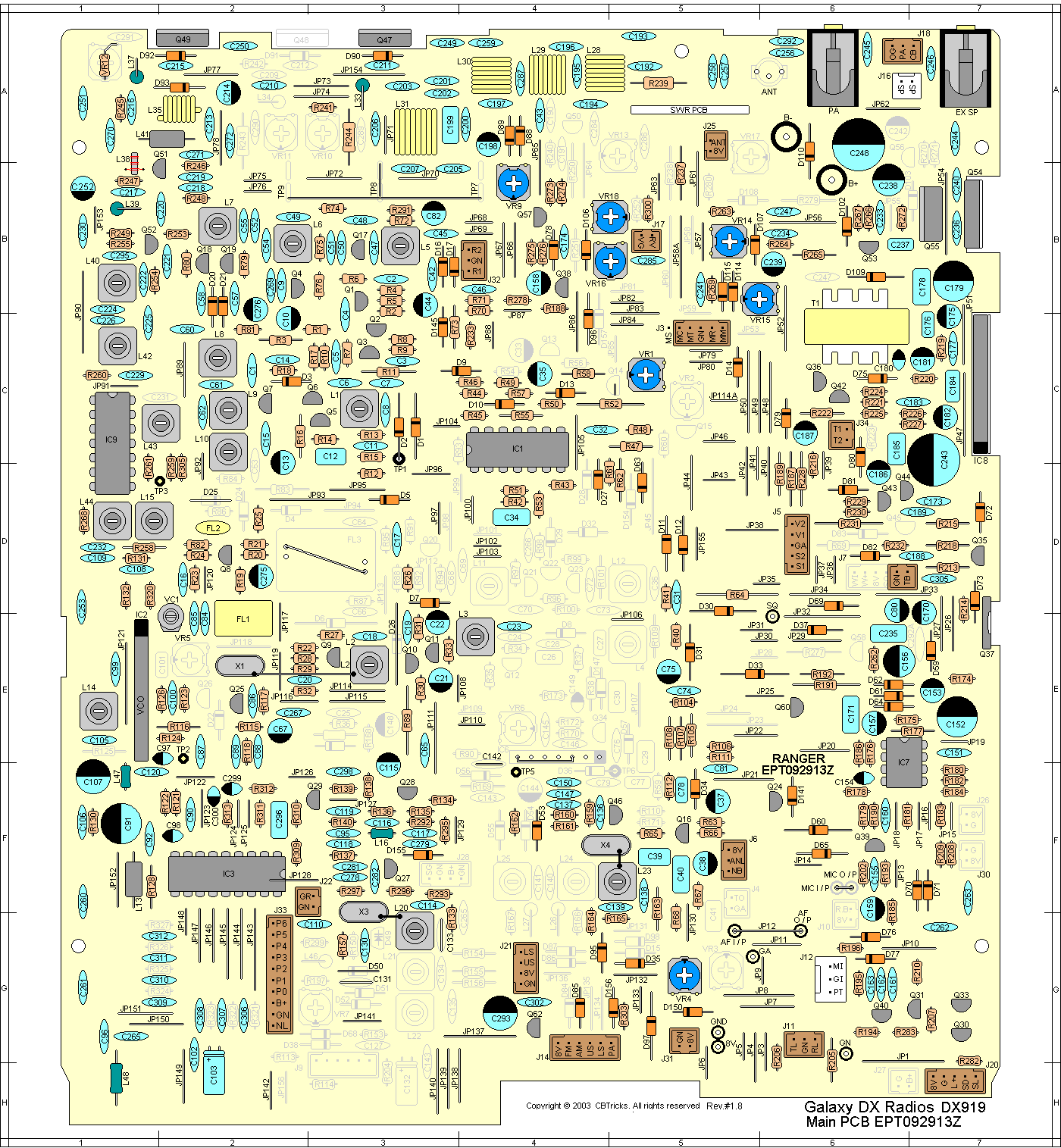

PCB Parts Layout Top View
Main

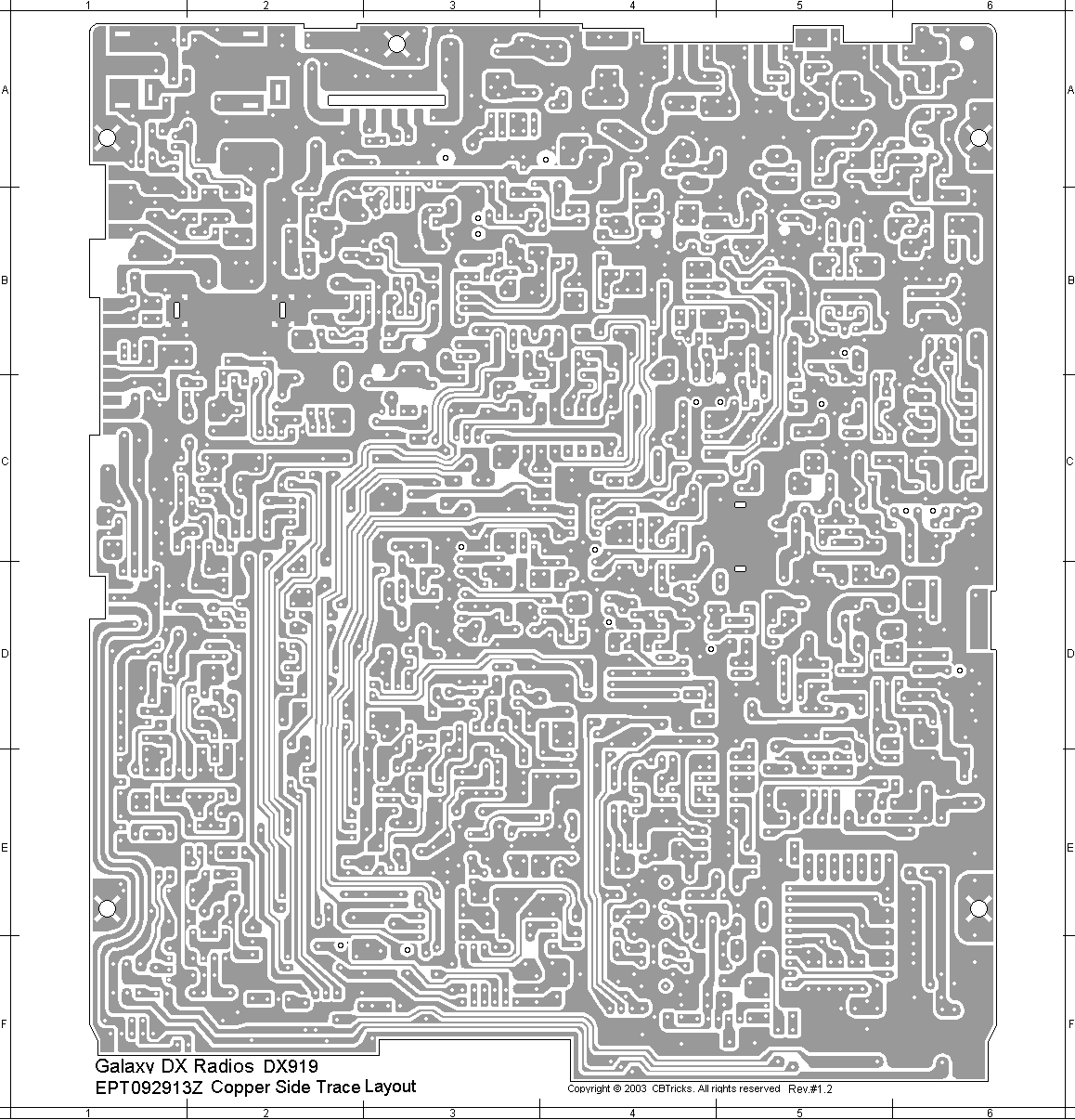

PCB Copper Side View
Main

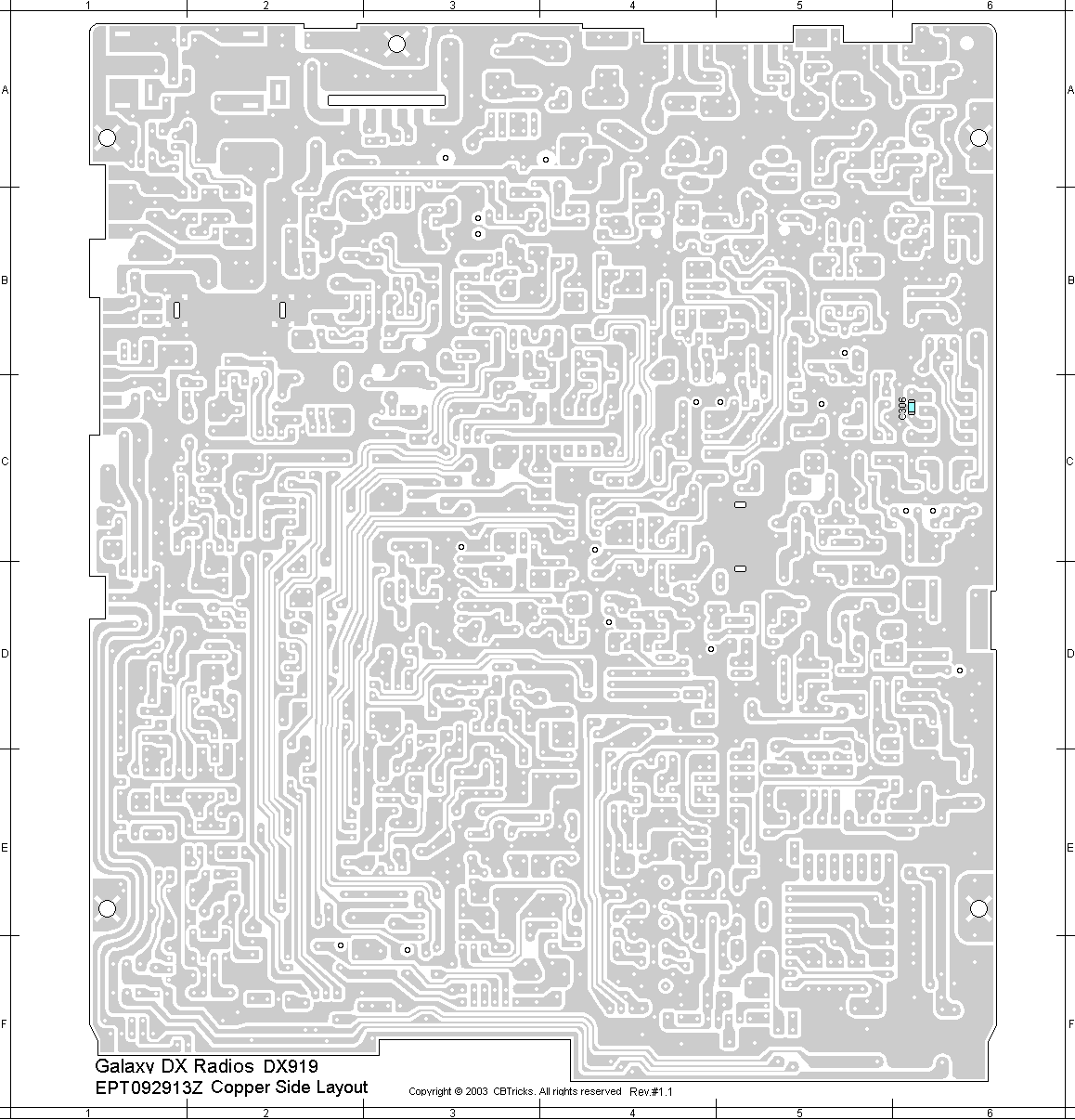

PCB Parts Layout Bottom View
PARTS LISTS Top Side
Capacitors
Coils, Transformers,
Crystals, Filters
Resistors
Diodes
IC's, Transistors
Wire Jumpers,
Connectors
PARTS LIST Bottom Side
Copper Side
Parts
NOTES:
See: Galaxy
DX Radios General Section Notes
Semiconductor
Datasheets Section
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
