Galaxy
DX Radios DX98VHP
Documentation Project
CBTricks.com
MODULAR

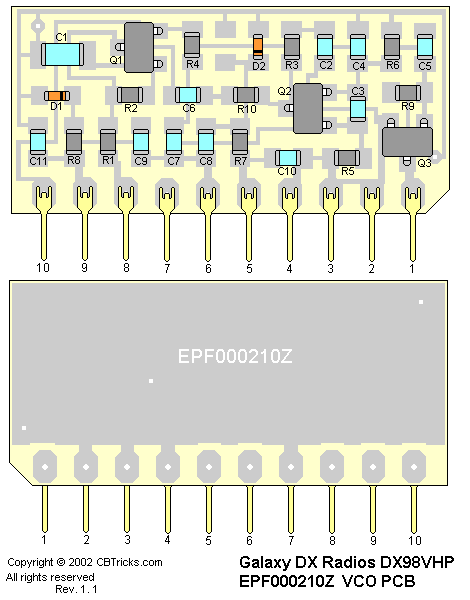

VCO P.C.B. (EPF000210Z)
Trace
Layout
Schematic
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
MODULAR #F-002 IC090 SUB VCO |
#T-149E |
|
|
MODULAR 002 P.C.B. |
EPF000210Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R1 |
CHIP/F/R (SMD) 10 OHM 0.1W |
RCY011004Z |
|
R2 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R3 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R4 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R5 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R6 |
CHIP/F/R (SMD) 560 OHM 0.1W |
RCY015614Z |
|
R7 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R8 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R9 |
CHIP/F/R (SMD) 220K OHM 0.1W |
RCY012244Z |
|
R10 |
CHIP/F/R (SMD) 10 OHM 0.1W |
RCY011004Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C1 |
T/C (SMD) 'A'CASE 1UF 16WV M (25WV) |
CTY161056Z |
|
C2 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AB5X |
|
C3 |
CHIP/C K CH 220PF 50WV K UJ |
CK1221AB5G |
|
C4 |
CHIP/C K CH 180PF 50WV K SL |
CK1181AB5L |
|
C5 |
CHIP/C 10PF 50WV D CH |
CK1100AB2A |
|
C6 |
CHIP/C 10PF 50WV D CH |
CK1100AB2A |
|
C7 |
CHIP/C 18PF 50WV J CH |
CK1180AB4A |
|
C8 |
CHIP/C (J CH) 470PF 50WV |
CK1471AB5A |
|
C9 |
CHIP/C C CH 5PF 50WV C SL |
CK1050AB1L |
|
C10 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AB5X |
|
C11 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AB5X |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q1 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q2 |
T/R (SMD) 2SC3123-TE85L |
TY2SC3123Z |
|
Q3 |
T/R (SMD) 2SC3123-TE85L |
TY2SC3123Z |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D1 |
DIODE (SMD) 1SV214-TP |
ED1V00214Y |
|
D2 |
DIODE (SMD) HVU359 |
EDHU00359Y |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
IC PIN 022-1.0-S(WAKO) |
GZZZ50098Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
