Ranger RCI-2950
Documentation Project

CBTricks.com

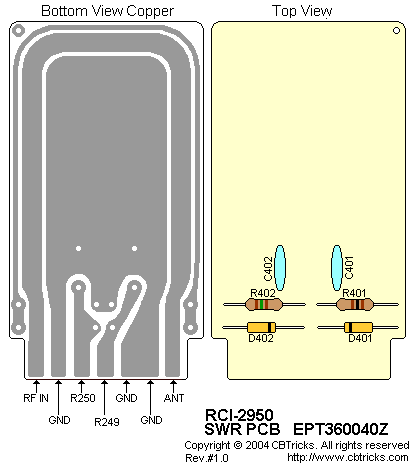

VSWR PCB (EPT360040Z)
Schematic Diagram

Resistors

Ref#

Description

MFR. Part No.

R401

100ohm 1/4W (P) TYPE

RCP141014Z

R402

150 OHM 1/4W (P) TYPE

RCP141514Z

Capacitors

Ref#

Description

MFR. Part No.

C405

.01uF 50WV Z SL, CERAMIC

CCO501037L

C406

.01uF 50WV Z SL, CERAMIC

CC0501037L
