Ranger (RCI) Ranger RCI-2970


Ranger / RCI Models
  1. RCI-2970

SPECIFICATIONS

Factory Service Manual

ALIGNMENT PROCEDURES

DIAGRAMS

PCB Layouts and Parts

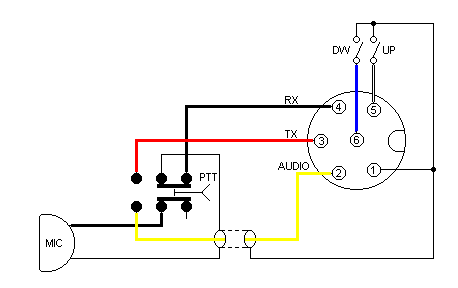

Mic Wiring


Mic Wiring


1. Ground Shield
2. Audio Yellow
3. Transmit Red
4. Receive Black
5. CH. Up White
6. CH. Down Blue

TURNER 4-WIRE MIC. WIRING
1. Ground Shield
2. Audio White
3. Transmit Black
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

TURNER 6-WIRE MIC. WIRING
1. Ground Shield & Red
2. Audio White
3. Transmit Blue
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

ASTATIC 4-WIRE MIC. WIRING
1. Ground Shield
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

ASTATIC 6-WIRE MIC. WIRING
1. Ground Shield & Blue
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C
