With the wiring diagram that part is a piece of cake, getting creative with the switche locations will be the part where you need to be surgical.
-
You can now help support WorldwideDX when you shop on Amazon at no additional cost to you! Simply follow this Shop on Amazon link first and a portion of any purchase is sent to WorldwideDX to help with site costs.
magnum 257 microphone-how does it work?
- Thread starter space cowboy
- Start date
I used to put Radio Shack micro buttons in 636L and RK56 mics for Ranger and HR2510's, I'm sure that the buttons can be got from other places, like Mouser or Digikey, eBay. They looked great after I was done. But that was loooong ago.
i put one of these in my rk56 for my rci 2570/galaxy 2527 since it takes only 3 wires for these radios i used the other 3for the channel switching,, https://www.e-switch.com/product-ca...series-miniature-toggle-switches#.YhKhcujMLcs
RS used to sell pairs of these, one red, and one black for I think $5 a pair.
I have used this style as well in a pinch. These are a little bit bigger.
You want Normally Open (NO Momentary). This "makes" the contact when you press the button.
When I worked at Shadow Communications from 1993-2000 in the Youngstown OH area near The Ohio Turnpike and I-80 after the I-76/I-80 split, we had at least 1 or 2 in stock, ready to go. It was an "idle time" filler, in between radio repairs.
I took 636L's and drilled out 2 holes along the top, equidistant to each other, using the tip of my soldering iron to make the starter holes, then drill out the rest of the way to fit the buttons, but out of the way of the PTT switch, wired them up so the Red button was for Up and Black for Down. The leads of the buttons had to be bent to accommodate putting the PTT switch back in.
On the RK56, the PTT was in an angle, so I had to compensate for that.
I am in Tampa, been in Florida since 2000 (Upper Pinellas County 2000-2012, moved to Tampa in 2012). I am working in the TVRO field now.

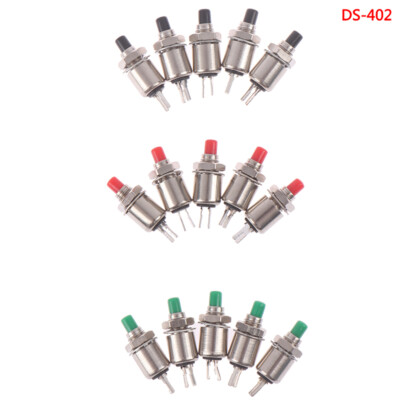

5pcs 5mm spring return momentary micro push button switch 0.5A DS-_shjuEX_ng | eBay
Find many great new & used options and get the best deals for 5pcs 5mm spring return momentary micro push button switch 0.5A DS-_shjuEX_ng at the best online prices at eBay! Free shipping for many products!
www.ebay.com
I have used this style as well in a pinch. These are a little bit bigger.
6Pcs 7mm Mini Momentary On/Off Lockless Micro Push Button SPST Switch 1NO / 1NC | eBay
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. Lowest price in the Market. VGA To HDMI Adapter Full HD 1080P Audio Video Converter Laptop PC To TV HDTV AV.
www.ebay.com
You want Normally Open (NO Momentary). This "makes" the contact when you press the button.
When I worked at Shadow Communications from 1993-2000 in the Youngstown OH area near The Ohio Turnpike and I-80 after the I-76/I-80 split, we had at least 1 or 2 in stock, ready to go. It was an "idle time" filler, in between radio repairs.
I took 636L's and drilled out 2 holes along the top, equidistant to each other, using the tip of my soldering iron to make the starter holes, then drill out the rest of the way to fit the buttons, but out of the way of the PTT switch, wired them up so the Red button was for Up and Black for Down. The leads of the buttons had to be bent to accommodate putting the PTT switch back in.
On the RK56, the PTT was in an angle, so I had to compensate for that.
I am in Tampa, been in Florida since 2000 (Upper Pinellas County 2000-2012, moved to Tampa in 2012). I am working in the TVRO field now.
Last edited:
