meanwhile out in the garage part II

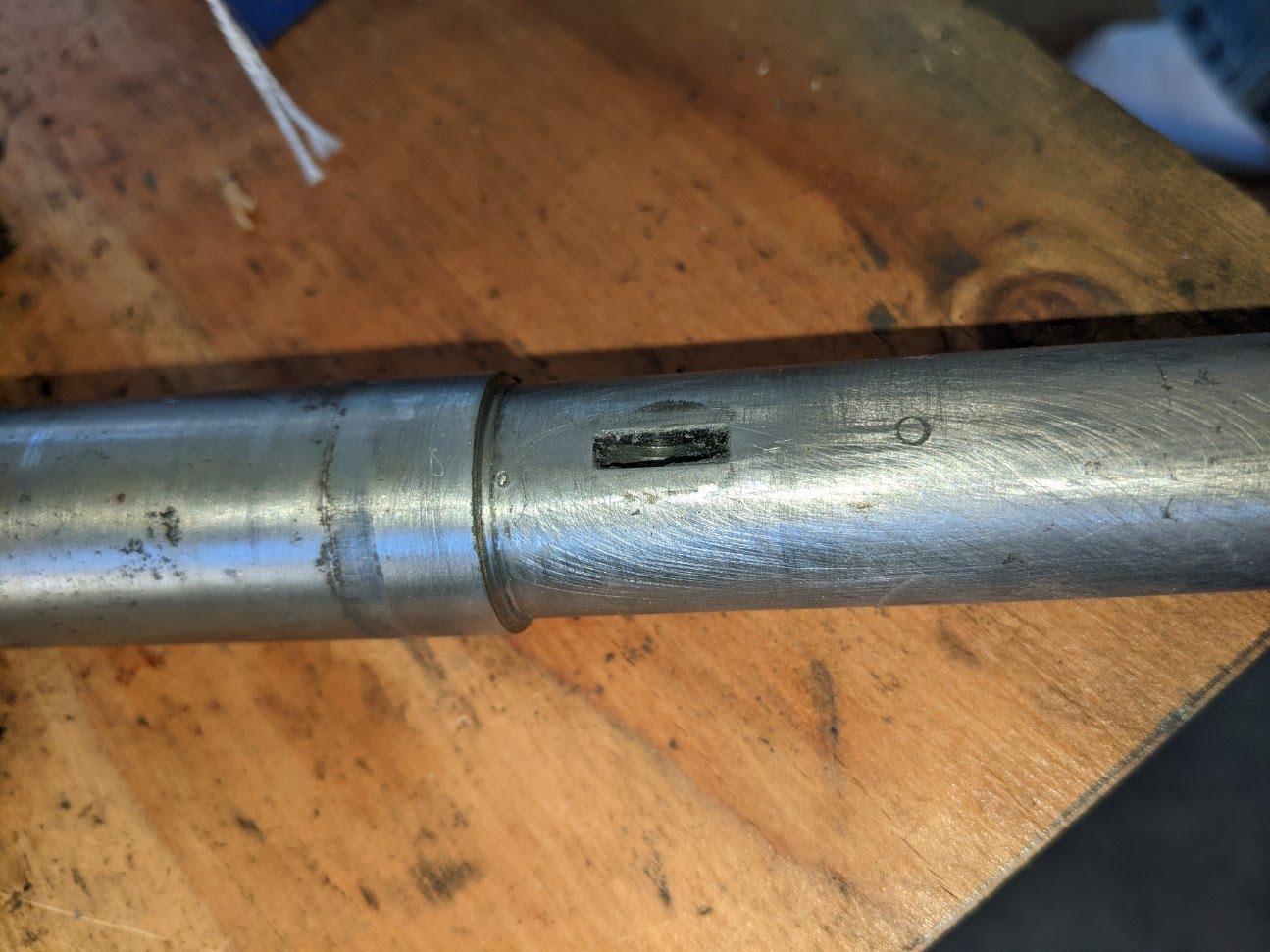

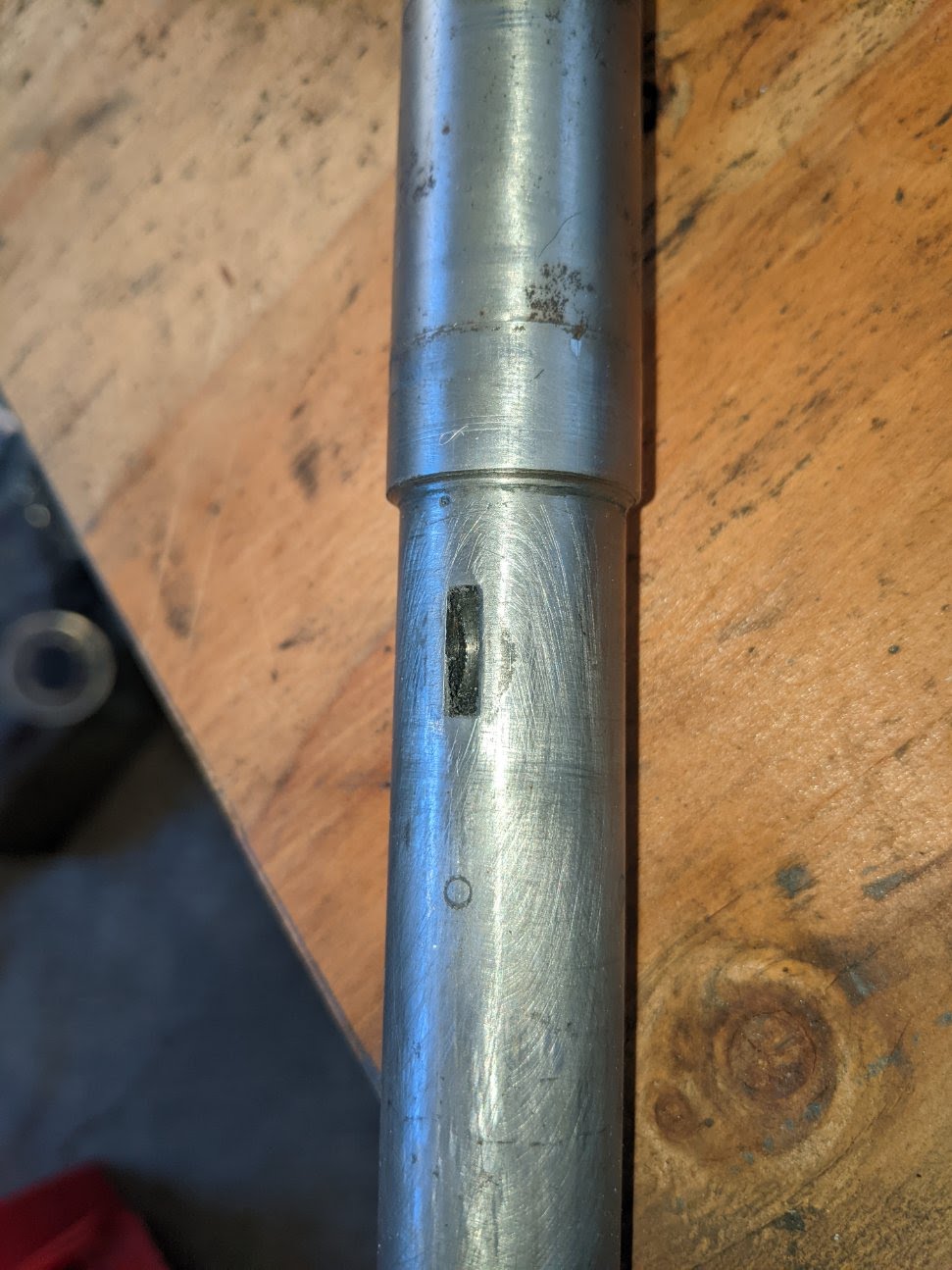

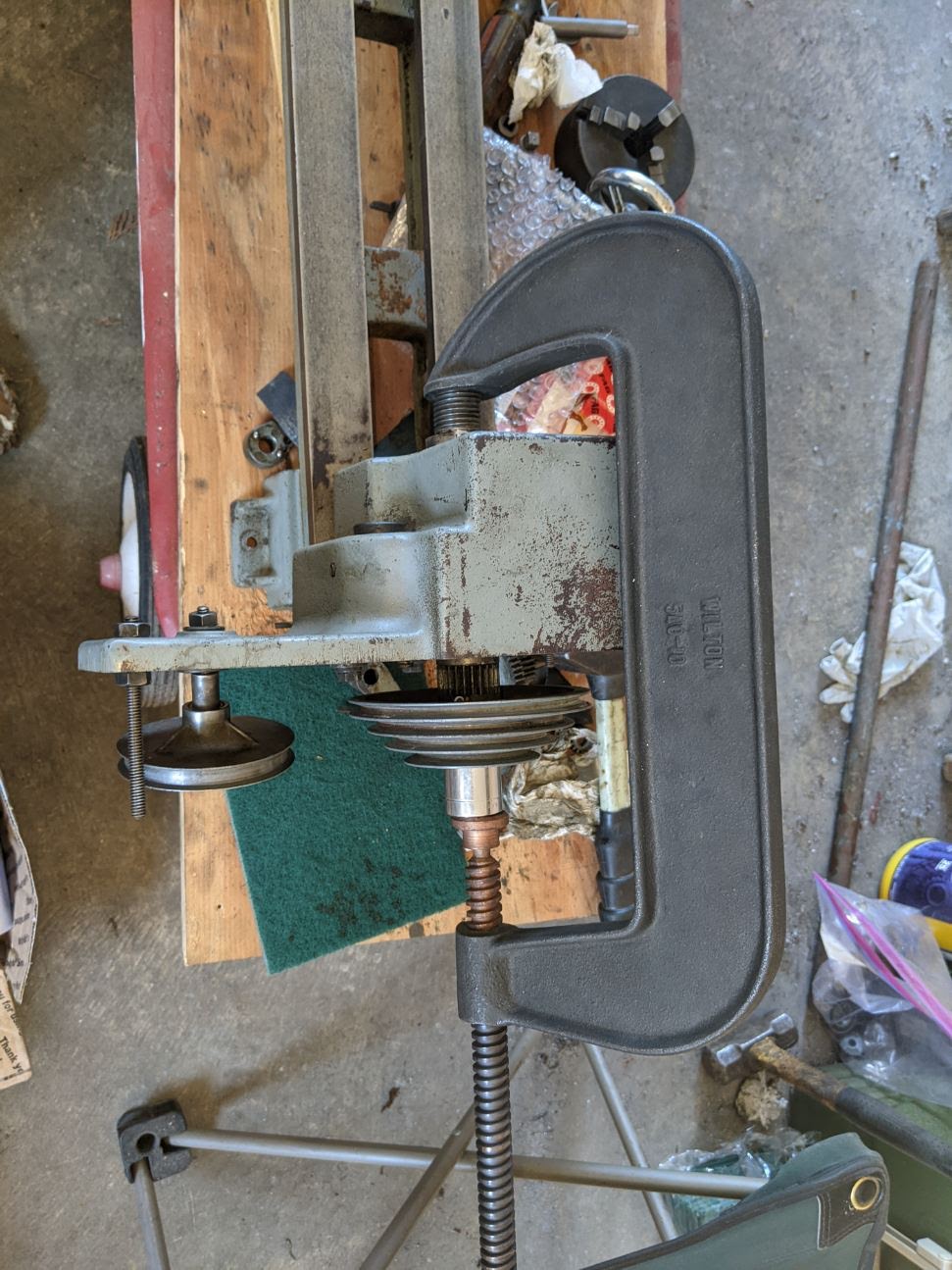

in true shadetree fashion the new bearings were installed.


Attachments

  • spindle_01.jpg
    163.1 KB · Views: 118
  • spindle_02.jpeg
    173.6 KB · Views: 128
  • bearing_press.jpeg
    209.4 KB · Views: 122
  • bearings.jpeg
    639.1 KB · Views: 127
  • Like
Reactions: Shadetree Mechanic
Here's your quiz

1) What is the function of this device?
a) High impedance input , low impedance output operational amplifier.
b) Low current currency converter.
c) Source of inconsequential multiple guess quiz.
d) Liberal meltdown detector.

2) Where would this be installed in/on a Uniden 29LTD classic?
a)At or near C1, a point in the receiver prior to any filter but after first RF.
c)Between the microphone and the radio
c)Between the radio and the antenna
d)Anywhere. It's a free country

3)What is the difference between through hole penetration and re-flow surface mount?
a)In through hole PCB construction the leaded parts penetrate the board prior to soldering. In re-flow surface mount the parts lay on top of the board prior to soldering.
b)One is a glory hole and the other is sloppy seconds
c)One is digitally challenged and the other is analog retentive.
d)Just another example of binary gender bias. I will now scream

4)Is a panadapter a...?
a) A device displaying the output of a fast Fourier transform in human readable graphics as part of a software defined radio.
b)Used to adapt a frying pan to a larger or smaller burner
c)Device of the deep state used for mind control.
d) Gender fluid RF connector.

5)A99 refers to a...
a)https://www.worldwidedx.com/attachments/a99-jpg.37220/
b) Universal currency exchange device
c)A road entirely within the former county of Caithness in the Highland of Scotland.
d) Four year plan for world domination of hysterically deranged liberals in denial of mostly anything but CNN.

Now, wasn't that fun?
Maybe I should go back to bad panda jokes.

Last edited:

Oh, you wanted good jokes :-/

CB to 10, CB to six, and Motorola MC145XX PLL .

If you know , you know..


Attachments

  • CB_to_10.zip
    8.8 MB · Views: 8
  • 02_February_1985.pdf
    12.3 MB · Views: 8
  • MC145104_Motorola.pdf
    92.3 KB · Views: 5
  • Like
Reactions: Shadetree Mechanic
So, this is going to take some explanation and imagination.

Screenshot from 2024-09-26 17-09-08.png

In the upper left are two ER11 collets, perpendicular to each other, directly attached to Nema17 stepper motors for rotation and ratio.. These are each opposed by additional stepper motors for positioning. The upper pair slide horizontally and the pair to the left slide vertically.

Now all I have to do is get the rotating pair to turn at a specific ratio and, the remaining pair to position.


Seeing as I'm old, a dinosaur, mostly deaf, partially senile and suffering from ED (educational dysfunction) I now have to re-edumacate myself in the fine art of assembly programming or learn IDE for Arduino from square one.

And so it goes....

  • Like
Reactions: Shadetree Mechanic
