radio shack htx10

[NZ8N]

That is because I am busy stringing up networking cables and IP cameras in an old building. On my normal day off, as a side job.
I will elaborate later, gotta get back up on the ladder. And, I will start another post.



[NZ8N]

Proprietary? Maybe.

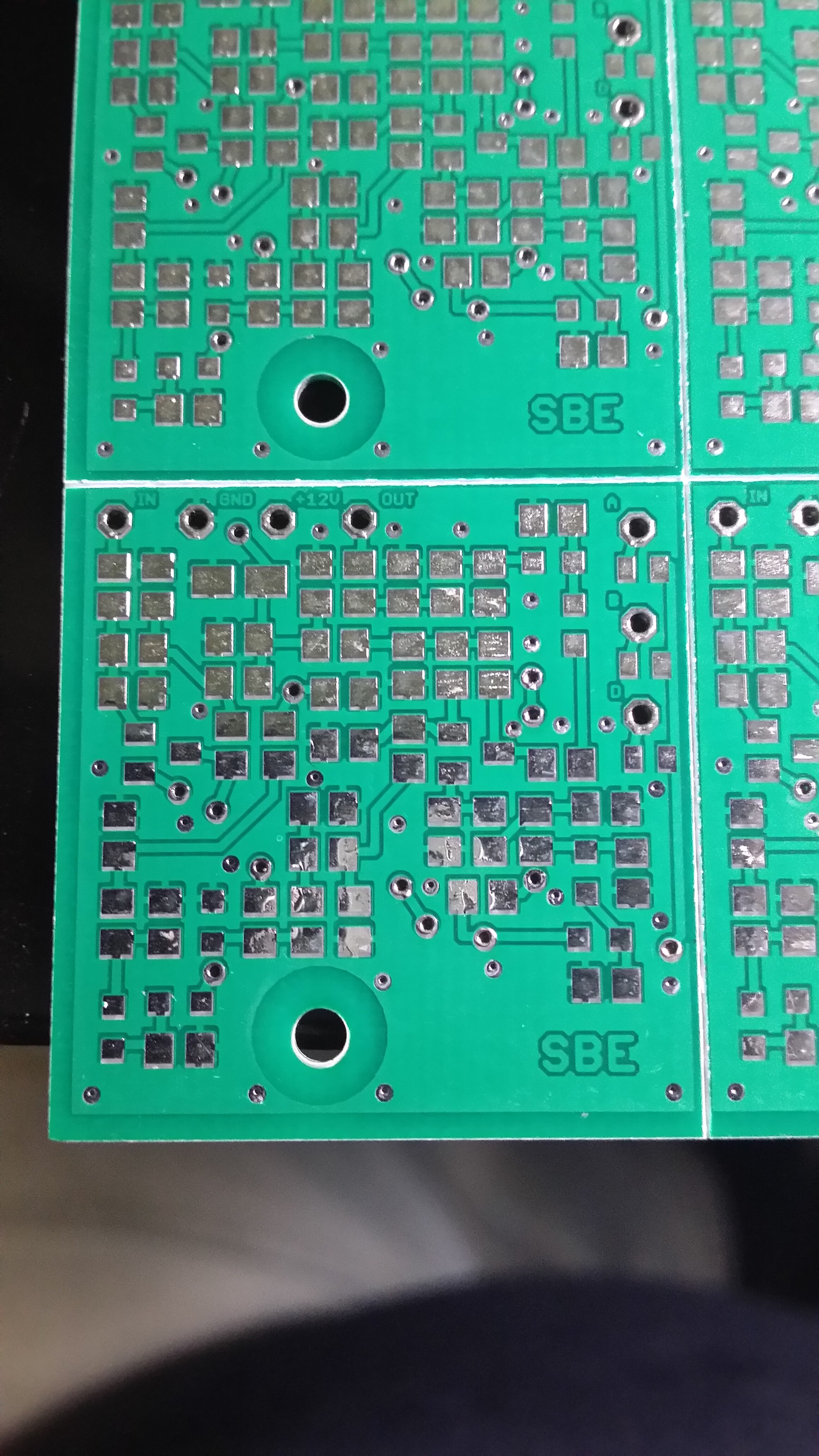

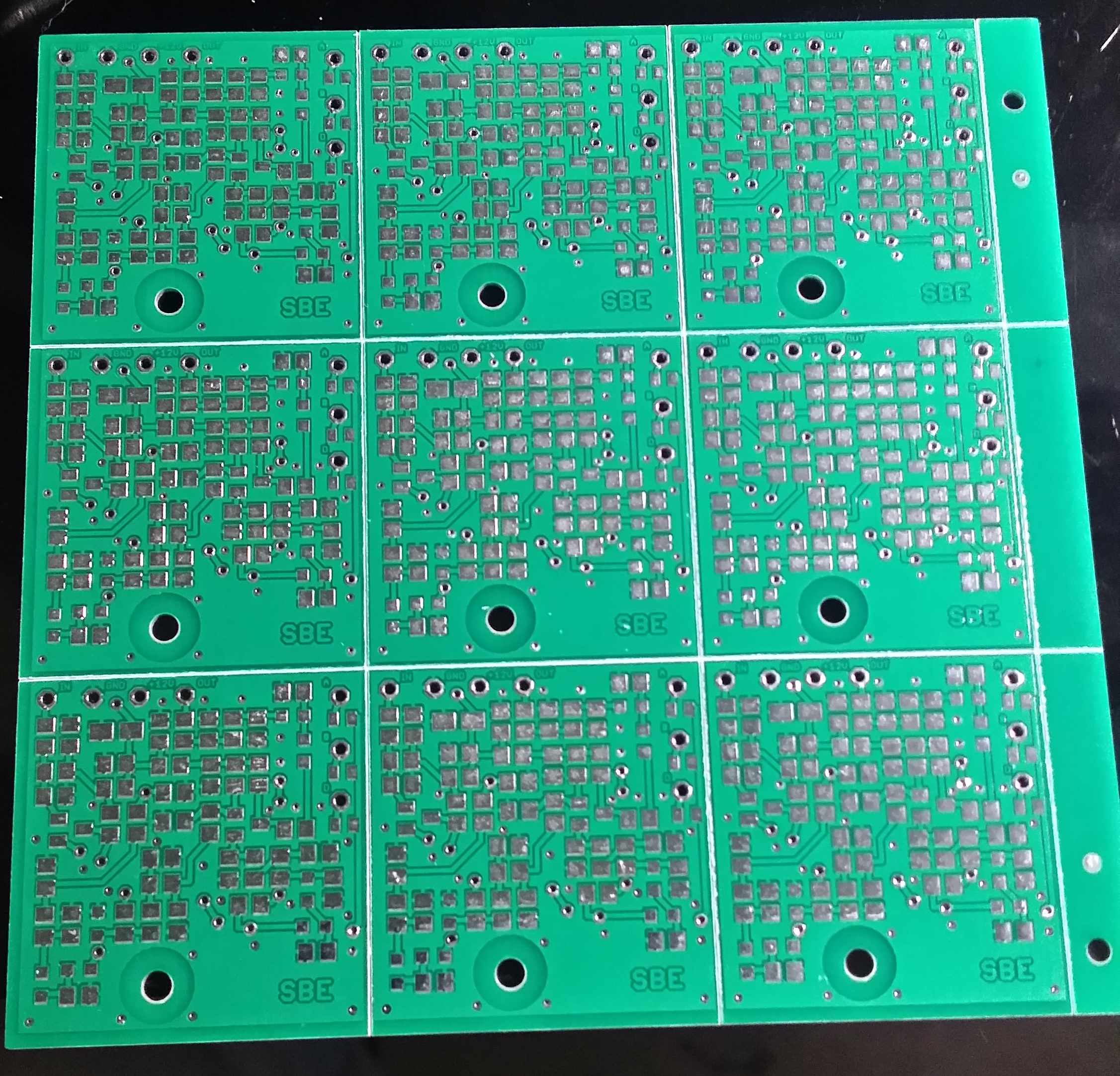

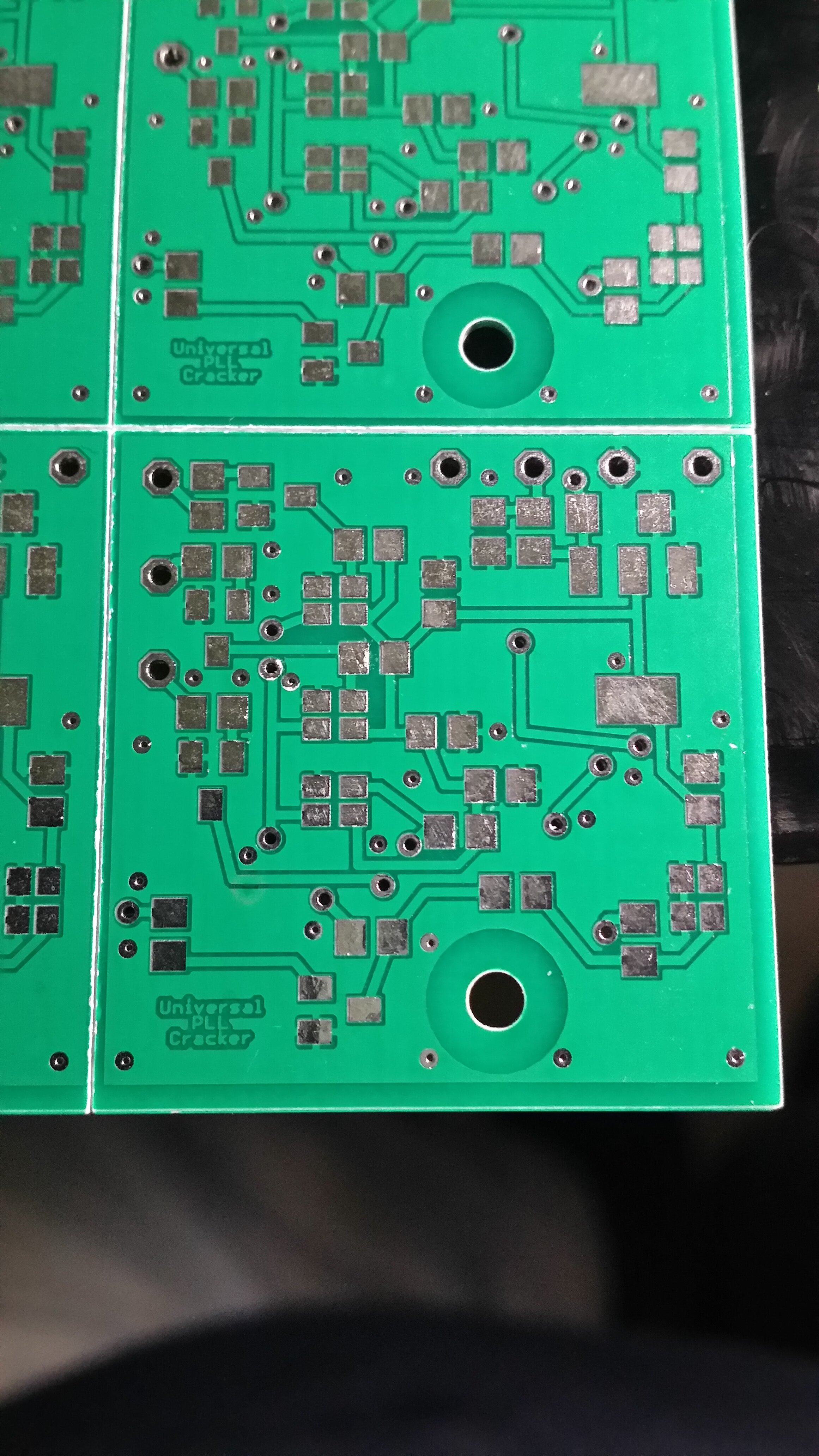

This is an Alpha version from 2020, I used MEMS Oscillators as the basis, but goofed (inverted) on the enable logic to switch which band to select. My later revs have HC49 (or HC49S short) crystals, easier and faster to source, I have to submit the Gerbers when I am satisfied with my design. I have over 2 dozen iterations of the layout of this circuit.



[crappykraco]

Ok, great.

Anyone want to buy my radio?



[NZ8N]

I have been out of here for the past week preparing for a hurricane (Tampa), and the cleanup afterwards. It was not as bad as it could have been, it turned sooner than expected, but it still left a mess.
I got my check Friday, which turned out to also be a bank holiday, so it won't clear until Tues morning 1am EST (Midnight CST).

I will buy your HTX10 if you still have it. I already have one from eBay, but that will give me a 2nd to also experiment on with my board design. And my 1st gen 980SSB too. Same conversion board, same concept, different frequencies to "shift" from.
And, no, it is not DDS based, I had thought about that too, and have a few iterations based on SI5351 and atmega32u4, but went back to crystals for my design, easier and cheaper to source.



[crappykraco]

Great. It does not come in the original box, but will include power cord and microphone.

I will pack it well and include shipping for $75. I recently used it to make a few calls during the cqww contest, so it is working.

I'll send you a private message with my paypal address.



[NZ8N]

Money sent. No rush on receiving it, I just opened the one got through eBay a few weeks ago. I haven't fired it up yet, though.



[crappykraco]

SOLD!
