If anyone is curious about a replacement for the ERF9530 Mosfets try the FDA24N40F.
-
You can now help support WorldwideDX when you shop on Amazon at no additional cost to you! Simply follow this Shop on Amazon link first and a portion of any purchase is sent to WorldwideDX to help with site costs.
Rocketbox info thread !!! Made in the USA with a reasonable pricetag !
- Thread starter WINKDOGG
- Start date
I happen to have an amp here that has 4 of the above mentioned mosfets installed. It is producing the right amount of power and I have checked it on the spectrum analyzer and it has a clean output.
I've still got a bag full of the 2030+ just aging away. Never could get them to work correctly during experiments.
Not the animal of this topic but this thread just brought those to mind.
Not the animal of this topic but this thread just brought those to mind.
Haha someone got that from me. I am the one who originally put the FDA24N40F in a 4x amp back in like 2010. I only told a few people. Yes they do work. Within 5-10% of the correct power output and they are like $3 each. $1 each if you buy 1000.
I think I may even have some pictures to prove it. Let me look for them. That's been a decade ago though LOL.
I think I may even have some pictures to prove it. Let me look for them. That's been a decade ago though LOL.
I completely appreciate the behind the scenes logistics involved in low level production. 10,000 units or less a year.
Even though it appears LDMOS is the real way to go now. There definitely is a market for amplifiers that operate on 12-14vdc without DC to DC converters.
With that said.
Take the latest version HG components. Are they still slightly different the Toshiba parts. Yup. But Toshiba's are gone. Done. Have nothing to do with current production or future component support.
Why not just manufacturer amplifiers with HG rf transistors. The 2879 and 454 parts are reliable, produce power and readily available.
If people were smart, they'd buy a complete matching set of finals with their new amp. What's another 100-120 bucks for a 4 pill amp knowing that if even in 10 years, you're a drunken idiot one night and burn up your LINEAR.. you have what you need or the hard part anyways. Okay so some 10 ohm 'identifier' base resistors and a balance resistor for the input/output combiners...
Well there ya go!
The market needs a vendor who offers a tried and true, efficient and conservatively designed range of products for the average radio user. Most people struggle to supply 100 amps at just 13 volts in their vehicle let alone supply that at home. So basically 2 and 4 pill Class B biased amps using stable bi-polar rf output transistors.
The nice thing about 30mhz capable/roll off rf transistors being used in CB amps is they're not capable of producing meaningful energy at 2nd and 3rd harmonics.
Anyhow. The PP100s were turds, so we're the DEI's and even early HG's.
But HG parts made today work well. For 25-30 bucks a piece in low quantity at that.
Just my .02
Even though it appears LDMOS is the real way to go now. There definitely is a market for amplifiers that operate on 12-14vdc without DC to DC converters.
With that said.
Take the latest version HG components. Are they still slightly different the Toshiba parts. Yup. But Toshiba's are gone. Done. Have nothing to do with current production or future component support.
Why not just manufacturer amplifiers with HG rf transistors. The 2879 and 454 parts are reliable, produce power and readily available.
If people were smart, they'd buy a complete matching set of finals with their new amp. What's another 100-120 bucks for a 4 pill amp knowing that if even in 10 years, you're a drunken idiot one night and burn up your LINEAR.. you have what you need or the hard part anyways. Okay so some 10 ohm 'identifier' base resistors and a balance resistor for the input/output combiners...
Well there ya go!
The market needs a vendor who offers a tried and true, efficient and conservatively designed range of products for the average radio user. Most people struggle to supply 100 amps at just 13 volts in their vehicle let alone supply that at home. So basically 2 and 4 pill Class B biased amps using stable bi-polar rf output transistors.
The nice thing about 30mhz capable/roll off rf transistors being used in CB amps is they're not capable of producing meaningful energy at 2nd and 3rd harmonics.
Anyhow. The PP100s were turds, so we're the DEI's and even early HG's.
But HG parts made today work well. For 25-30 bucks a piece in low quantity at that.
Just my .02
Rocketbox amps all have automatic Sideband but if you build a RB kit you will have to enable it. There is a YouTube video showing how that's done.
Commando,
If you have the schematic with p/n's for the fet box I'd appreciate a copy? I'm competent with a solder station but am not a component level design engineer. Dave 148
If you have the schematic with p/n's for the fet box I'd appreciate a copy? I'm competent with a solder station but am not a component level design engineer. Dave 148

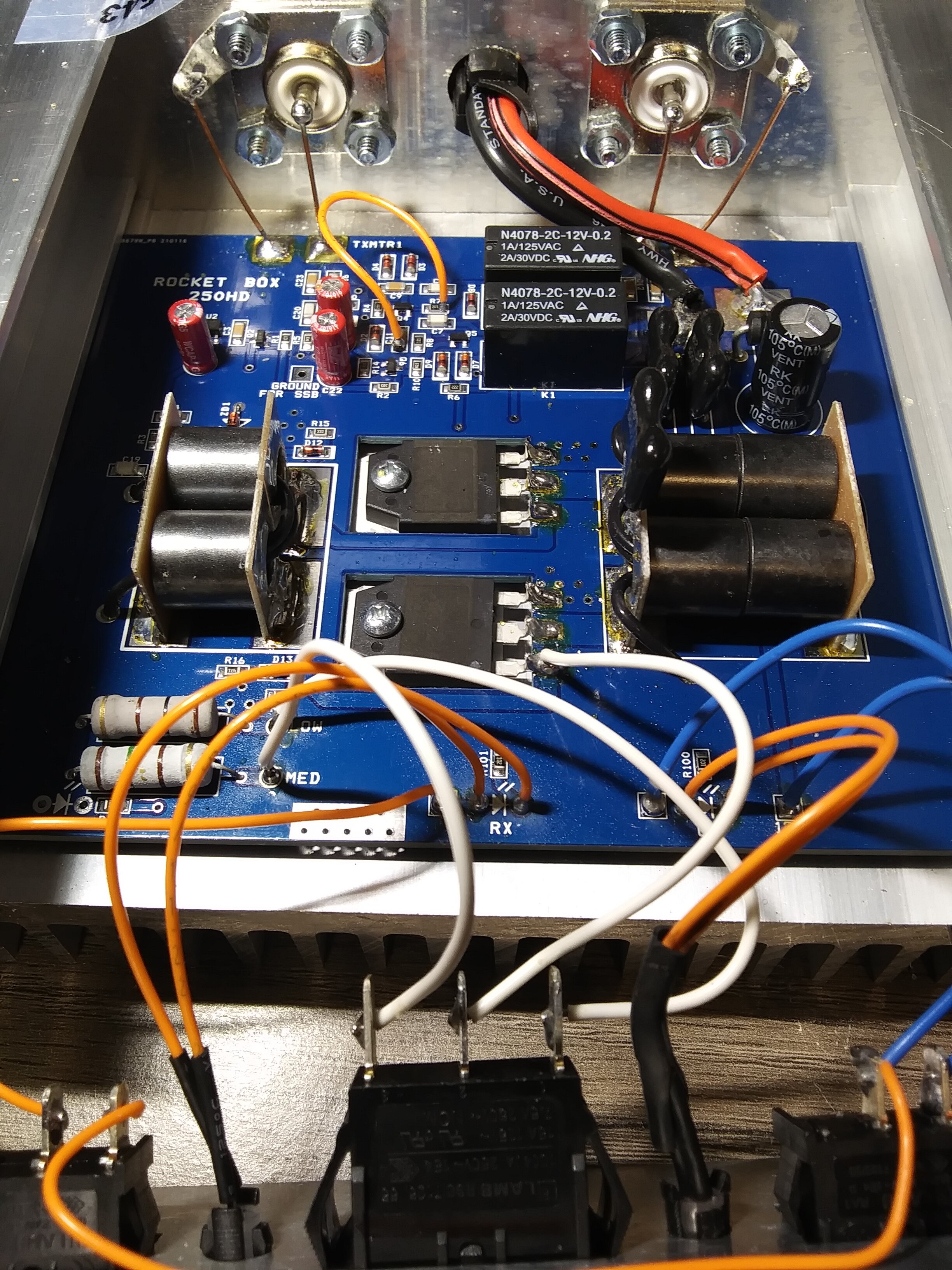

Here is a pic of the Rocketbox HD250 that was assembled at Rocketbox.
The Palomar ERF9530 is what the Rocketbox website says is used. IDK for sure but Whatever they are they work quite well & have very low amperage draw. The amp pictured above has been through Hell & back for the past year & still works as well as the first time I hooked it up. The Sound Quality is much better than the bipolar two pill mrf455 amp it replaced.
