Yaesu FT-857D FT-897D 857 897 Frequency modification expansion

[Happy_Hamer]

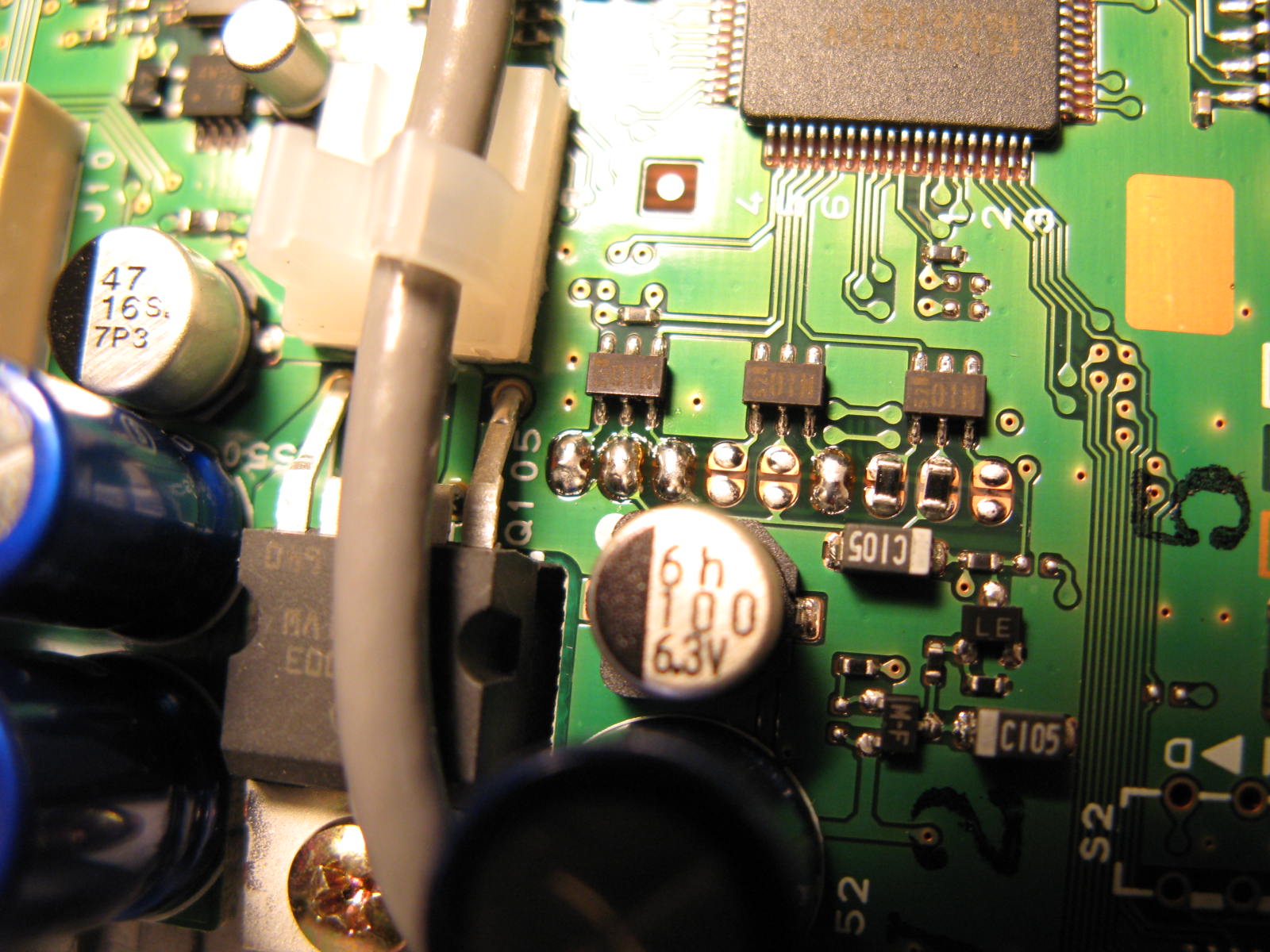

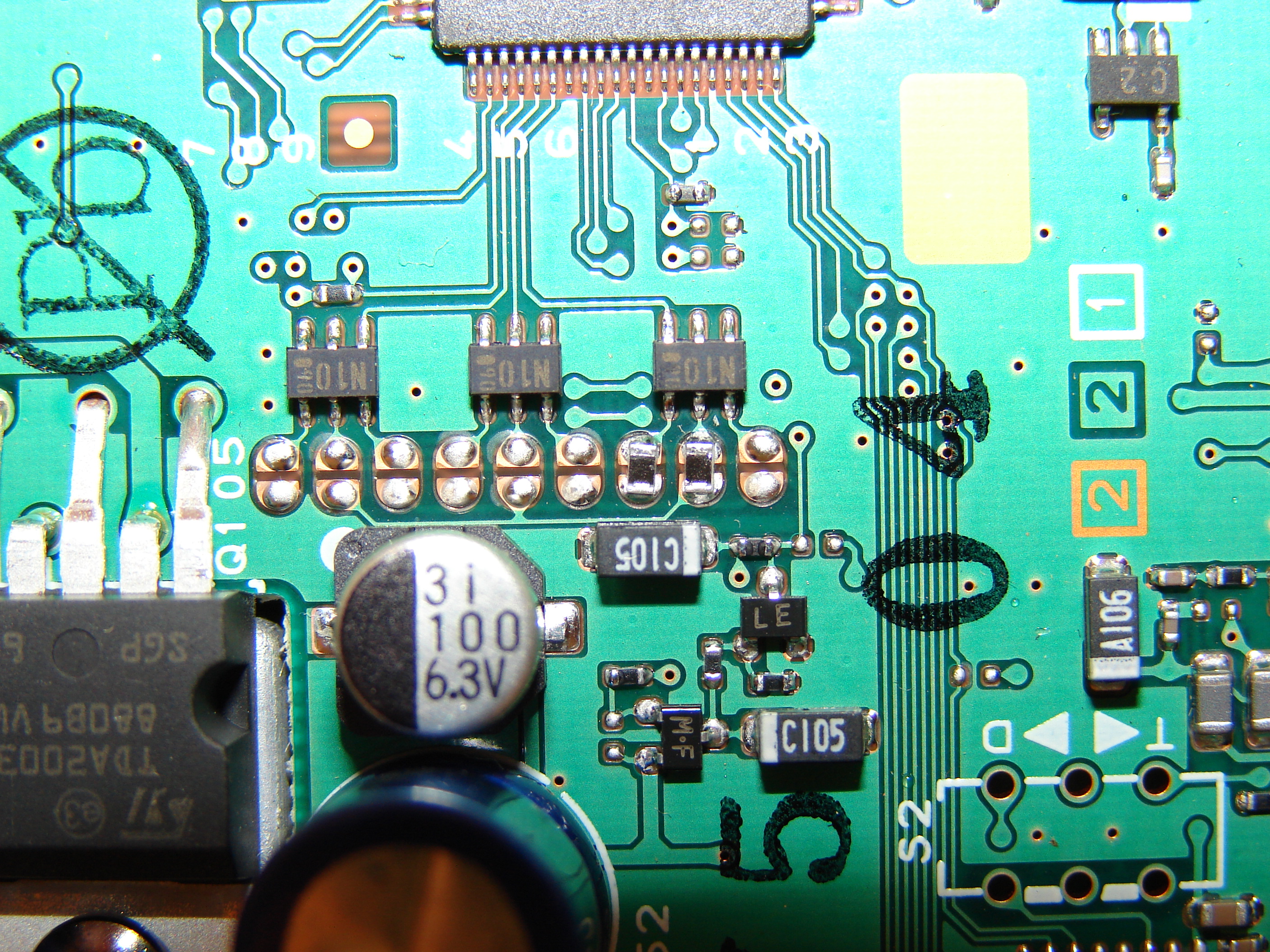

Before and after pictures for the USA 857 897 D frequency conversion.

MODIFY AT YOUR OWN RISK!

Solder jumper 7 8 9 and 6, then reset the radio by holding the F and VM keys down while turning the radio back on



[novakor]

Great job hamer,pics are great........enlarge even better Who soldered that anyway:tongue:........This is the type of post i like.

73



[rfoverlord]

Hamer that was most excellent!! great job and detail.



[Happy_Hamer]

Thanks, I took the before picture and Moleculo took the after.



[Moleculo]

Hamer's too scared to modify his own radio.



[AudioShockwav]

Hamer's too scared to modify his own radio.

HAHAHAHAHAHAHAHAHA
:tongue::tongue::tongue::tongue:


73
Jeff



[dudmuck]

The switch position on the stock mic set to 1, and operating on AM seems to give muffled transmit audio.
Japanese needs better bass response compared to english. English speaking needs switch position 2.

In the configuration menus, there are individual settings for mic gains on AM, SSB and FM.
In function row "c" there is PROC speech processor.
You need to adjust all these settings for what gives the best audio for your voice.



[Happy_Hamer]

I have no reason to modify the radio, it makes me the elite since it is not modified. :drool:

Now Moleculo is in Navy/Marine M.A.R.S. so it makes sense for him



[116sd019]

Hi I Have European version FT-857 its work this operation my rig ? or dengerous ?



[Moleculo]

Here's the 40m mod for the U.K. version. I'm not sure if this helps you, or not:

http://www.ham.dmz.ro/yaesu/ft-897-40-meters-tx-mod-uk-model.php



[AudioShockwav]

Here is some more info on the FT 897......


73
Jeff



[SR385]

I did this mod to my 857D before it was even ever plugged in. Be careful and use an iron with a very fine tip. I actually bought a Hakko 936 soldering station just to do this mod.

It's a lot smaller than those pictures make it look ;-). Use a fine tip, nice and hot and get in and out quickly on the pads.



[JK_RUBICON]

I did this mod to my 857D before it was even ever plugged in. Be careful and use an iron with a very fine tip. I actually bought a Hakko 936 soldering station just to do this mod.

It's a lot smaller than those pictures make it look ;-). Use a fine tip, nice and hot and get in and out quickly on the pads.

Scary part about that,,,,, I was going to mod a TS-480HX for a guy, but i always run the radio first to make sure it works, well after about 5 minutes it just locked up and could not be reset, AES took it back and sent a new one, it worked perfect



[flashmojo]

Thanks

Thanks Happy Hamer! I almost messed my radio up by doing the FT-857 mod without the diodes. Wanna see a grown man cry?



[viking]

Hi! Glad to have found your forum.

Does this work on the current run of new 857D?

I have been searching high and low for the newer mod.

Is this the complete tx/rx mod or the MARS mod?
