D104m6 mic Lincoln 2 +

[jerry S]

Anybody has the wiring schematic for this?



[999]

The radio provides power to the stock mic on pin 6. I don't know if not connecting that would allow the use of an Astatic mic or not.
Otherwise the wiring would be:
1. White
2. Black
3. Red
4. Not Used
5. Blue/Shield
6. Power from radio (not used for aftermarket mic)
The mic may also not be compatible with the radio. I don't know if it requires an electret mic or not.



[jerry S]

Thank you I will try this.



[Eldorado828]

It's the same pinout as the uniden 980 or anytone. That info is somewhere in the wwdx forum.



[Eldorado828]

Here you go.

Just don't connect the pins 3 and 6.

Anytone At-6666 Microphone plug wiring

Well folks I had been looking for the wiring (plug) info for this radio for quite some time and finally found what I was looking for. So for those who have also wanted to use a different mic here's what I found. This info is for the the CRT SS-9900 which is simply another rebadged at-6666...

www.worldwidedx.com



[Crawdad]

I don't know if it requires an electret mic or not.

It doesn't require one but they seem to have better audio with an electret cartridge. The stock mics usually do a great job with Lincoln IIs. An amplified mic may just overdrive the audio without improving your sound or SSB signal strength at all. Those radios have pretty good audio for an "Export" right out of the box.

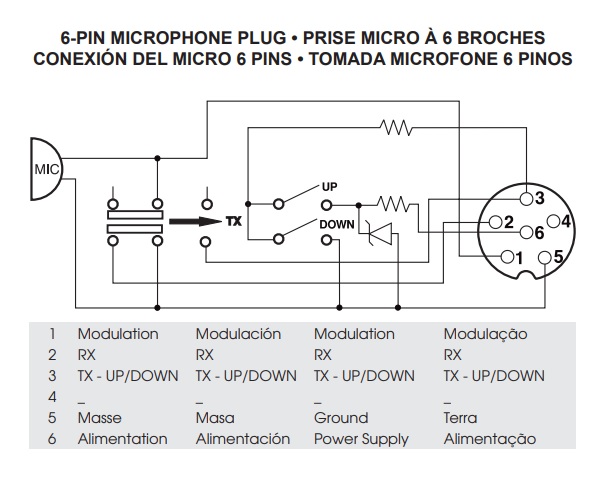

7 3



[Shadetree Mechanic]

The stock mic does use an electret element, crisp and clear, just not much bass. I like to use the elements from a telephone handset, not in place of, but in addition to. The best way to tell what a microphone sounds like, is to listen to your transmit signals using another radio with headphones and no antenna.

President Electret Microphone Upgrade

The stock electret microphone that comes with the President radios now days is hard to beat. Changing to a dynamic mic will usually give a lower tone that sounds good, but it lacks the punch of the stock mic and consequently is not as loud. A power mic will bring up the audio level, making the...

www.worldwidedx.com



[jerry S]

Here you go.

Just don't connect the pins 3 and 6.

Anytone At-6666 Microphone plug wiring

Well folks I had been looking for the wiring (plug) info for this radio for quite some time and finally found what I was looking for. So for those who have also wanted to use a different mic here's what I found. This info is for the the CRT SS-9900 which is simply another rebadged at-6666...

www.worldwidedx.com

Thank you
