Digging through boxes of goodies I ran across in the garage, the neat items listed below are now for sale:
(All prices will include CONUS shipping with tracking & insurance, unless noted otherwise)
Prefer USPS Money Orders, Paypal will be considered on items less than $100.
------------------------------------------------------------------------------
Used COMET CFX-4310 Tri-plexer with N connectors
1.3~150 mHz/350~500 mHz/840~1400 mHz
$45.00 Shipped
------------------------------------------------------------------------------
Radio Shack DSP-40 Digital Signal Processor
Really good processor, just as good as the JPS NIR-10 I used to use
Like new in box, audio DSP with built in speaker.
1/8" phone jack for running an external speaker of your choice
Power cable, audio cable, mounting bracket & OP manual included
$60.00 Shipped
------------------------------------------------------------------------------
Three Used and One Brand New (In Box) AEA IsoPole Base Station Omni Antennas:
As over 70,000 IsoPole owners around the world will attest, the AEA IsoPoles offer the broadest frequency coverage of any comparable VHF base station antennas, as well as providing unmatched performance in the VHF/UHF bands. The IsoPole is available in 2M, 220, or 450 MHz versions, each yielding the maximum gain attainable for their respective lengths, as well as providing zero-degree angles of radiation.
#1
Used AEA IsoPole 2M (144~174 mHz) Base Antenna
Deployed for several years, but still in good condition, works great
You need your own mast 1"~1 1/4" diameter EMT required
Impedance - 50 ohms
Nominal power rating - 1.0 KW
2:1 VSWR bandwidth - 10 MHz @ 150 MHz
Length - 125.5 in. ( 3.2 m )
Minimum mast length - 8 ft. ( 2.4 m )
Coax connector - SO-239
Gain ( on horizon ) - 3dbd
$60.00 Shipped
#2
Used AEA IsoPole 2M (144~174 mHz) Base Antenna
Only deployed for 6 months Very Good condition, works great
You need your own mast 1"~1 1/4" diameter EMT required
Impedance - 50 ohms
Nominal power rating - 1.0 KW
2:1 VSWR bandwidth - 10 MHz @ 150 MHz
Length - 125.5 in. ( 3.2 m )
Minimum mast length - 8 ft. ( 2.4 m )
Coax connector - SO-239
Gain ( on horizon ) - 3dbd
$90.00 Shipped
------------------------------------------------------------------------------
#3
Used AEA IsoPole 1.25M (210-230 mHz) Base antenna
Deployed for several years, but still in good condition, works great
You need your own mast 1"~1 1/4" diameter EMT required
Impedance - 50 ohms
Nominal power rating - 1.0 KW
2:1 VSWR bandwidth - 15 MHz @ 220 MHz
Length - 79.25 in. ( 2 m )
Minimum mast length - 5.25 ft. ( 1.6 m )
Coax connector - SO-239
Gain ( on horizon ) - 3dbd
$60.00
#4
NEW AEA IsoPole 1.25M (210-230 mHz) Base antenna
Brand New In Box !!!
You need your own mast 1"~1 1/4" diameter EMT required
Impedance - 50 ohms
Nominal power rating - 1.0 KW
2:1 VSWR bandwidth - 15 MHz @ 220 MHz
Length - 79.25 in. ( 2 m )
Minimum mast length - 5.25 ft. ( 1.6 m )
Coax connector - SO-239
Gain ( on horizon ) - 3dbd
$120.00
------------------------------------------------------------------------------

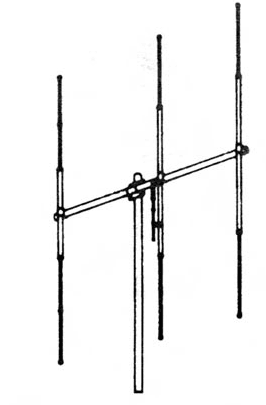

Used MACO M-103 10/11M, 3 Element Yagi Antenna
Good condition, works great
In the classic directional Yagi design, the 11.5' long, 3 element M103 base station antenna can be mounted either vertically or horizontally for best base-to-mobile or base-to-base communications. The M103 features a Maco 2kW adjustable
gamma match for high performance. Ruggedly built, using swaged & slotted tubing for maximum strength with minimum wind loading. Stack with VQSK for an extra 3 dB gain.
Boom Length (ft) 11.5
Boom OD (inches) 1.5
Number of Elements 3
Longest Elements (ft) 19
Turn Radius (ft) 10
Surface Radius (sq. ft.) 4.5
Wind Survival (mph) 90
Tuning (Meters) 10-11
Gain (db) 11
Power Multiplication 20x
Frnt-to-Back Sep. (db) 25
VSWR (adjustable) 1.5 or <
Weight (lbs) 14
$90. + Shipping
------------------------------------------------------------------------------

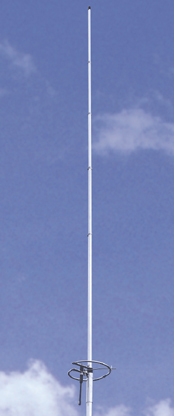

Used CUSHCRAFT AR-10 Omni Vertical, Mono-band,10m, Ringo Ranger Base Antenna
Very good condition, works great
Frequency - 28-29.7 MHz
Gain - 3db
Radiation Angle - 16º
Horizontal Radiation Pattern - 360º
SWR 1.2:1 Typical 2:1 Bandwidth - 1.5 MHz
Ring Diameter - 13 in / 33 cm
Radiator Base Diameter - 1 in / 2.5 cm
Height - 17.6 ft / 5.36 m
Mast Size Range - 1.0-1.25 in / 2.54-3.1 cm
Wind Load - 1.68 ft² / .16m²
Max Power - 500 Watts
Weight - 4 lb / 1.8 kg
$70.00
------------------------------------------------------------------------------
Diamond SX-1000 SWR/POWER Meter
Like New, but no OEM box
Frequency Range - 1.8~160 mHz & 430~1300 mHz
Measurement Range - 5W/20W/200W
Accuracy of full scale - +/- 10%
Minimum Power In 1W (1.8~160), 2W (430~1300)
SWR Measurement - 1.0 ~ oo (infinity)
Insertion Loss - Less than 0.2db (1.8~160), Less than 0.15db (430~1300)
Impedance - 50 ohms
Connectors - (S1) UHF SO-239 Female (1.8~160), (S2) 'N' Female (430~1300)
Dimensions (W/H/D) 6.1"x2.7"x5.3" ... Weight - 1.96 lbs.
$175.00
