Sams PhotoFacts Collection

[Smokinone]

I have these files on the Grant XL from the Grant XL owners site when it was around.
I don't know if they're useful or already posted, but here goes.



[danmcclain]

Yes, it's 1k Ohm. Good luck on the extra exam. Although as I proved earlier today I am an idiot and I passed, so you should have no trouble.

Dan, thanks for posting this. I've also got a Grant XL around here that I haven't got to yet and the alignment instructions will come in handy when I finally do.

Thanks for the assist and you are welcome... Dan



[sunbulls]

This is my enhanced President Grant PDF with separate JPG schematic. It has been spliced together for viewing on a large monitor.



[sunbulls]

@danmcclain - * sigh *.... your little pest is back......

How about CB-91..... looking for the Sears Radio that is in that volume.
Just for completeness... the model number is: 934.36710500.

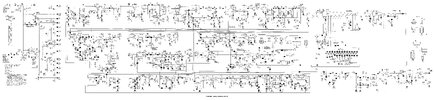

This is my enhanced PDF version of this Sears radio, and the almost complete spliced version of the schematic. As you can see, only a few connections and components are missing in the gutter area of the book that didn’t get scanned.



[guitar_199]

This is my enhanced PDF version of this Sears radio, and the almost complete spliced version of the schematic. As you can see, only a few connections and components are missing in the gutter area of the book that didn’t get scanned.
View attachment 68142

Sunbulls, thank you so much! This one is still in transit to me. Now, thanks to you... I will be ready!!!!!! I appreciate it.
Bob



[danmcclain]

This is my enhanced President Grant PDF with separate JPG schematic. It has been spliced together for viewing on a large monitor.
View attachment 68140

Thank you for the info... Dan



[SuperLid]

Thank you for the info... Dan

Hi,

Any chance you have CB-222? I am in need of the data for the Uniden Washington.

73,

SL



[SuperLid]

Hi,

Any chance you have CB-222? I am in need of the data for the Uniden Washington.

73,

SL

Disregard....I found it on here.

Thanks,


SL



[danmcclain]

Hi,

Any chance you have CB-222? I am in need of the data for the Uniden Washington.

73,

SL

Let me check... Dan



[danmcclain]

Let me check... Dan

Sorry I'm missing that one... Dan



[SuperLid]

Sorry I'm missing that one... Dan

I found it in this thread.

Thanks,

SL



[guitar_199]

Dan, I am back again........

It looks like a radio .... GRAND PRIX D-1325RF

Should be in CB-132.

Can you check and see if you have that?

Another member here has suggested that this could be a match for this "Smokey 23" that I just bought cheap.

Thanks,
Bob



[AudioShockwav]

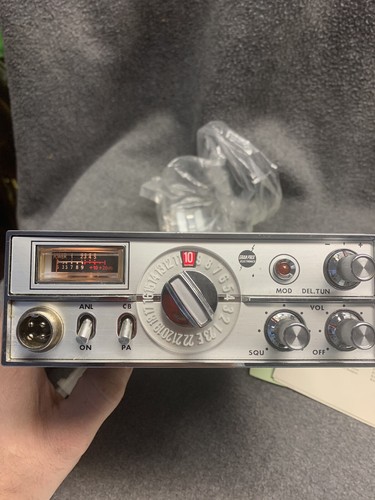

Look at this radio on flea bay and see if it looks similar

Vintage Grand Prix Electronics Model D1325RF 23 Channel CB Radio | eBay

<p>Vintage Grand Price Electronics Model D1325RF 23 Channel CB Radio. </p><p>The item appears like the box was opened but never used. It does turn on and light up. Has the manual and schematic part sheet. However I do not know anymore than that that is why it is being sold as parts. With people...

www.ebay.com

73
Jeff



[AudioShockwav]

If it is, service manual.

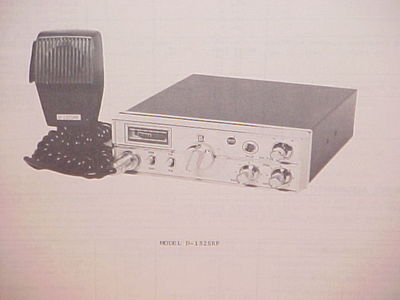

1977 GRAND PRIX CB RADIO SERVICE SHOP MANUAL MODEL D-1325RF | eBay

Description: Original Howard W. Sams & Co. INC. Photofact CB Radio Series service manual pages for the 1977 Grand Prix model D-1325RF. It has 22 pages and is dated 8/1977. Pages are loose. Includes alignment instructions, synthesizer information, receiver information, receiver adjustments...

www.ebay.com

73
Jeff



[sunbulls]

Another model "Delta Tronix D1325RF" was listed in CB Tricks, but that page is blank of any info, and I didn't find any other reference to that particular model on the web. If I get a copy of the manual at some point, I'll list all the models with photos on the cover page. Of course I'm hoping they're all a close match...
