Ranger RCI-2970
Documentation Project

CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.



SPECIFICATIONS
    Controls and Connections
    Basic Programming Procedures
    Owners Manual
    Factory Service Manual
    Page 1-1 to 5-4
    Page 7-1 to 7-13
    Page 8-1 to 8-13
    Page 10-1 to 11-8

ALIGNMENT PROCEDURES
     PLL Alignment
     Transmitter Alignment
     Receiver Alignment

SEMICONDUCTOR INFORMATION
     Transistors Voltage Chart

DIAGRAMS

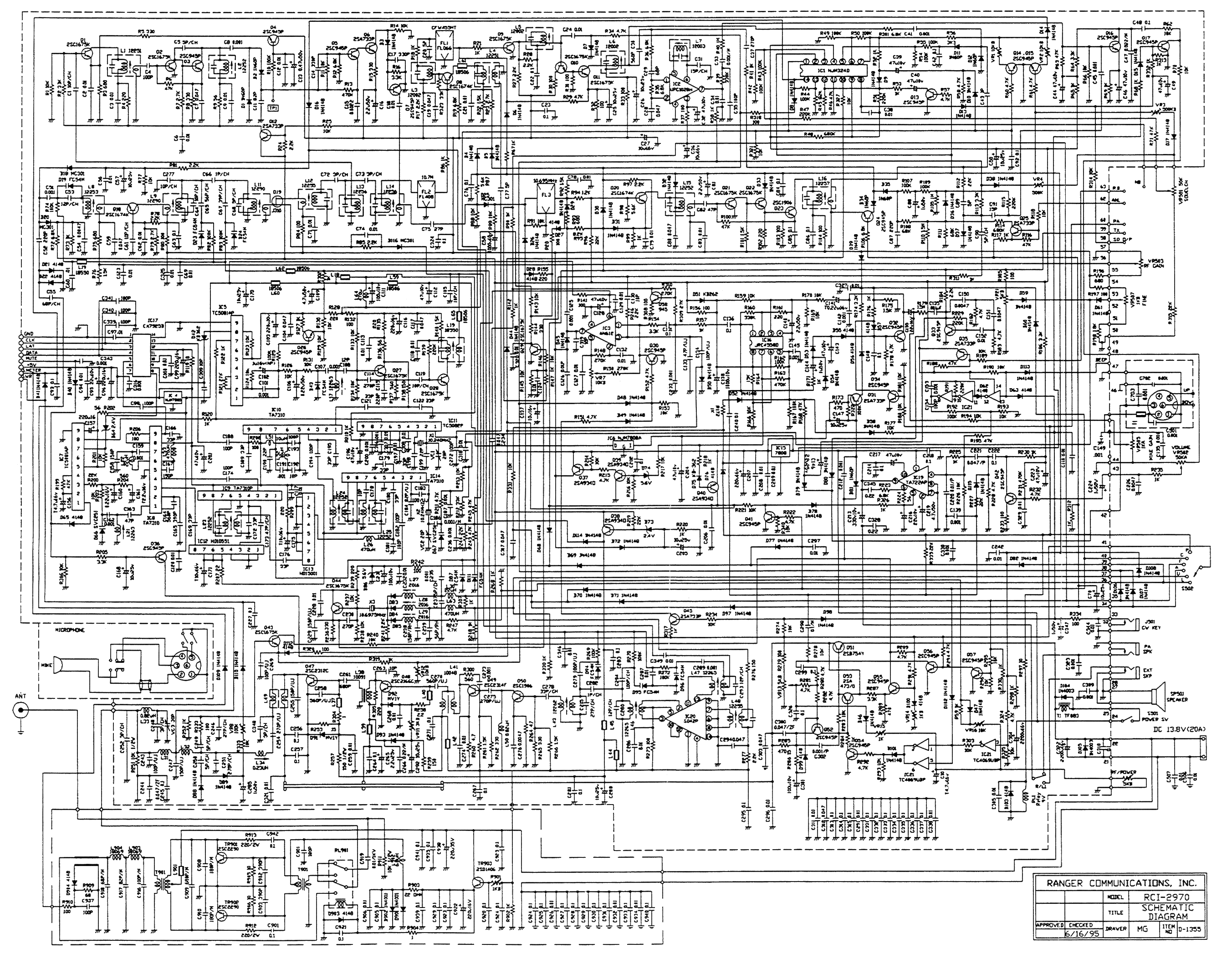

    Main PCB Schematic Diagram
    CPU PCB Schematic Diagram

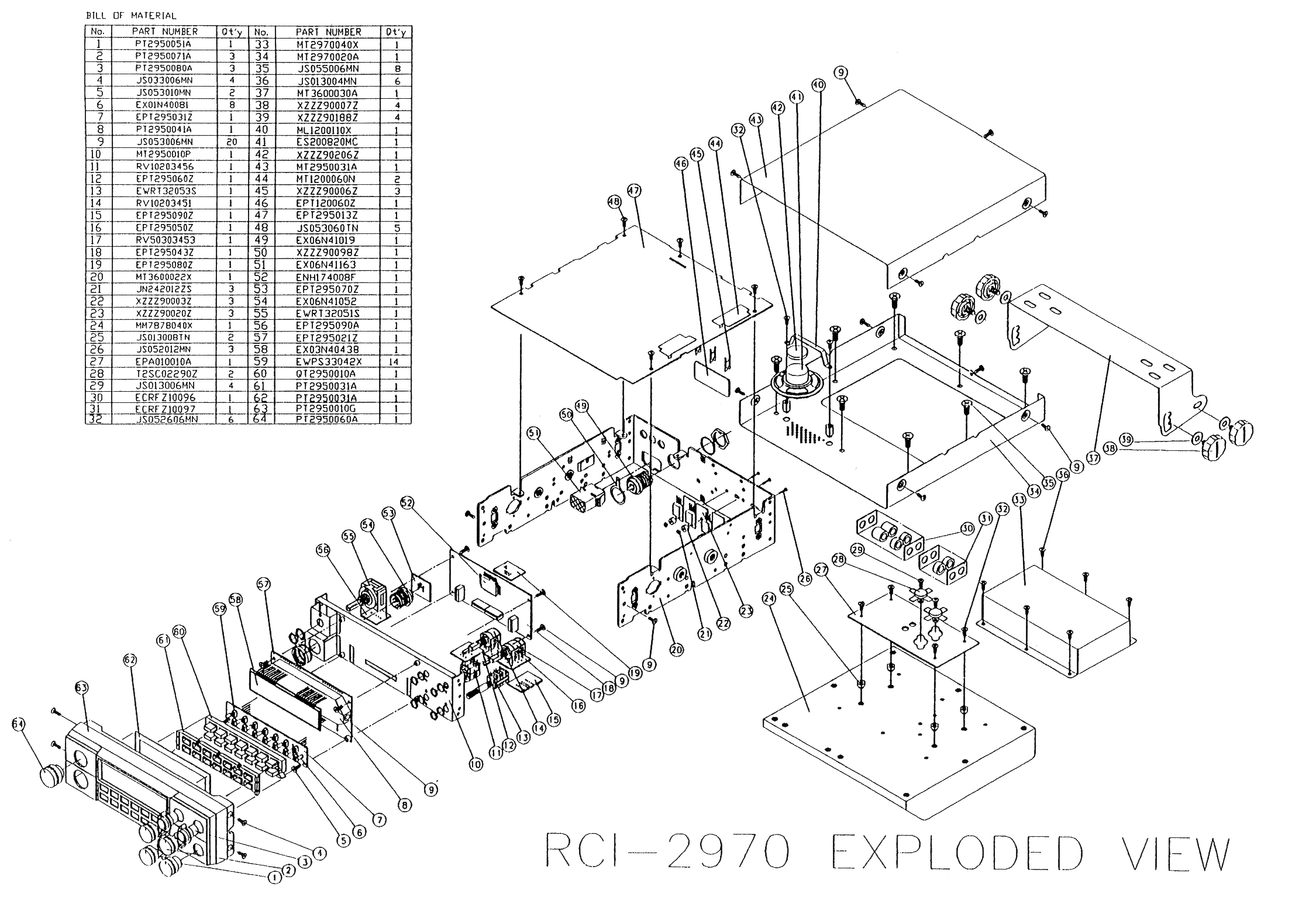

    Chassis Exploded View Drawing

PCB Layouts and Parts
    Main PCB Layout (EPT295013Z)
    RF Power Amp PCB (EA010010A)
    LCD PCB (EPT295021Z)
    CPU PCB (EPT295043Z)
    MIC UP/DW (EPT295080Z)

    MIC Jack PCB (EPT295070Z)
    VR (A) PCB RF/MIC VOL/SQ (EPT295050Z)
    VR (B) PCB RF/CAL (EPT295060Z)
    CH / Switch PCB (EPT295090A)
    MODE PCB (EPT295090Z)
    Push Button Switch PCB (EPT295031Z)

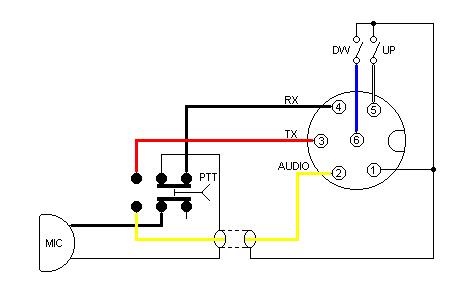

Mic Wiring

Mic Wiring

1. Ground Shield
2. Audio Yellow
3. Transmit Red
4. Receive Black
5. CH. Up White
6. CH. Down Blue

TURNER 4-WIRE MIC. WIRING
1. Ground Shield
2. Audio White
3. Transmit Black
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

TURNER 6-WIRE MIC. WIRING
1. Ground Shield & Red
2. Audio White
3. Transmit Blue
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

ASTATIC 4-WIRE MIC. WIRING
1. Ground Shield
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C

ASTATIC 6-WIRE MIC. WIRING
1. Ground Shield & Blue
2. Audio White
3. Transmit Red
4. Receive N/C
5. CH. UP N/C
6. CH. Down N/C
