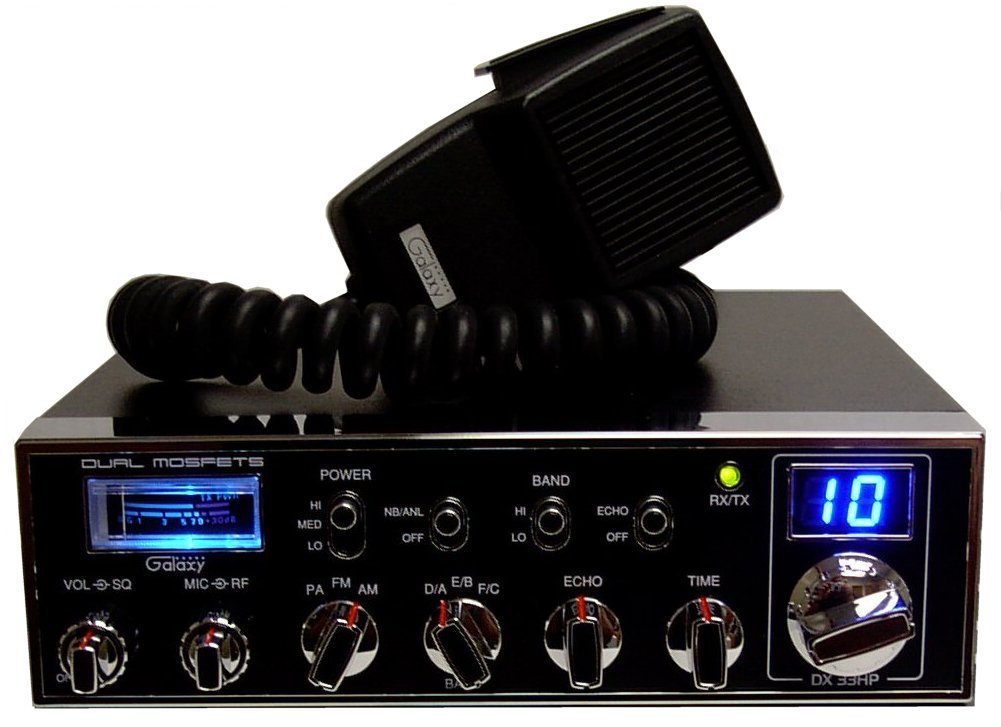

Tour Of Radio

SPECIFICATIONS
    Owner's Manual

RADIO MODIFICATIONS
      DX33HP Frequency Conversion
      Channel Chart (After Modification)
      Disabling Talkback
      10kc switch Mod

ALIGNMENT PROCEDURES
     PLL Alignment
     Transmitter Alignment
     Receiver Alignment
     Alignment Locations
     VCO Frequency Generation Chart Bands A-C and Bands D-F

SEMICONDUCTOR INFORMATION
     Transistor Voltage Chart
     Integrated Circuits Voltage Chart
     Semiconductor Datasheets

DIAGRAMS
    DX33HP Schematic Diagram (EPT3600-14B)
    Active Device Location Diagram

PCB Layouts and Parts
    Main PCB Layout (EPT360014B)
    MODULAR 005A RCI-6130A (EPT613010Z)
    Mic Jack PCB (EPT360050Z)
    Channel Selector PCB (EPT360022Z)
    Display PCB (EPT360032A)
    Echo PCB Layout (EPT0SSB51J)

Chassis, Miscellaneous & Mechanical Parts
    Miscellaneous & Mechanical Parts

Mic Wiring Diagram

Stock
1- Shield  (Ground)
2- Yellow  (Audio)
3- Red      (Transmit)
4- White   (Receive)

Astatic (4 wire)
1- Shield
2- White
3- Red
4- Black

Astatic (6 wire)
1- Shield & Blue
2- White
3- Red
4- Black
Yellow NC

Daiwa EM-500
Cobra CA Series
1- Shield & Black
2- Red
3- White
4- Blue

Galaxy DC-521S (4 wire)
1- Shield
2- Yellow
3- Red
4- Black

Galaxy CB-660EI
1- Shield & Black
2- White
3- Red
4- Blue

Sadelta
1- Shield
2- White
3- Brown
4- Green

Turner
1- Shield & Red
2- White
3- Blue
4- Black
Yellow NC
