X-Force 600HD Smoked

The photo shows the one on bottom transistor in your photo...left bank of viewing from the input end. Each transistor will have one to ground. A transistor blown will usually smoke them...hence the saying, “try not to choke on that 10ohm smoke”.

I can’t see the one on the top transistor well - but it looks like it could be blown apart?

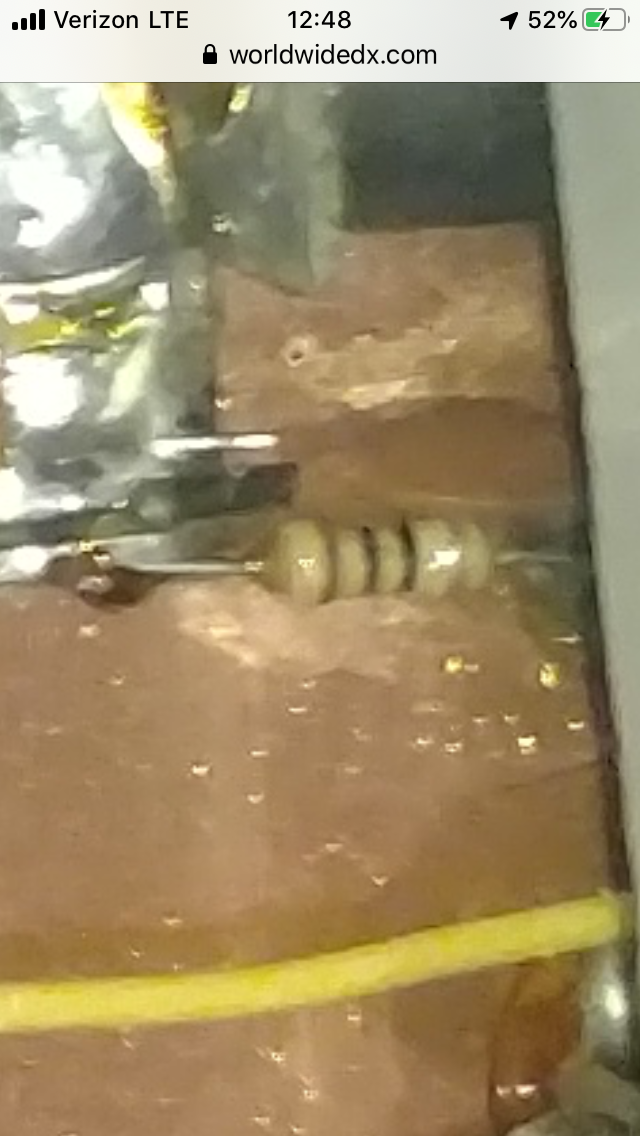

View attachment 32438

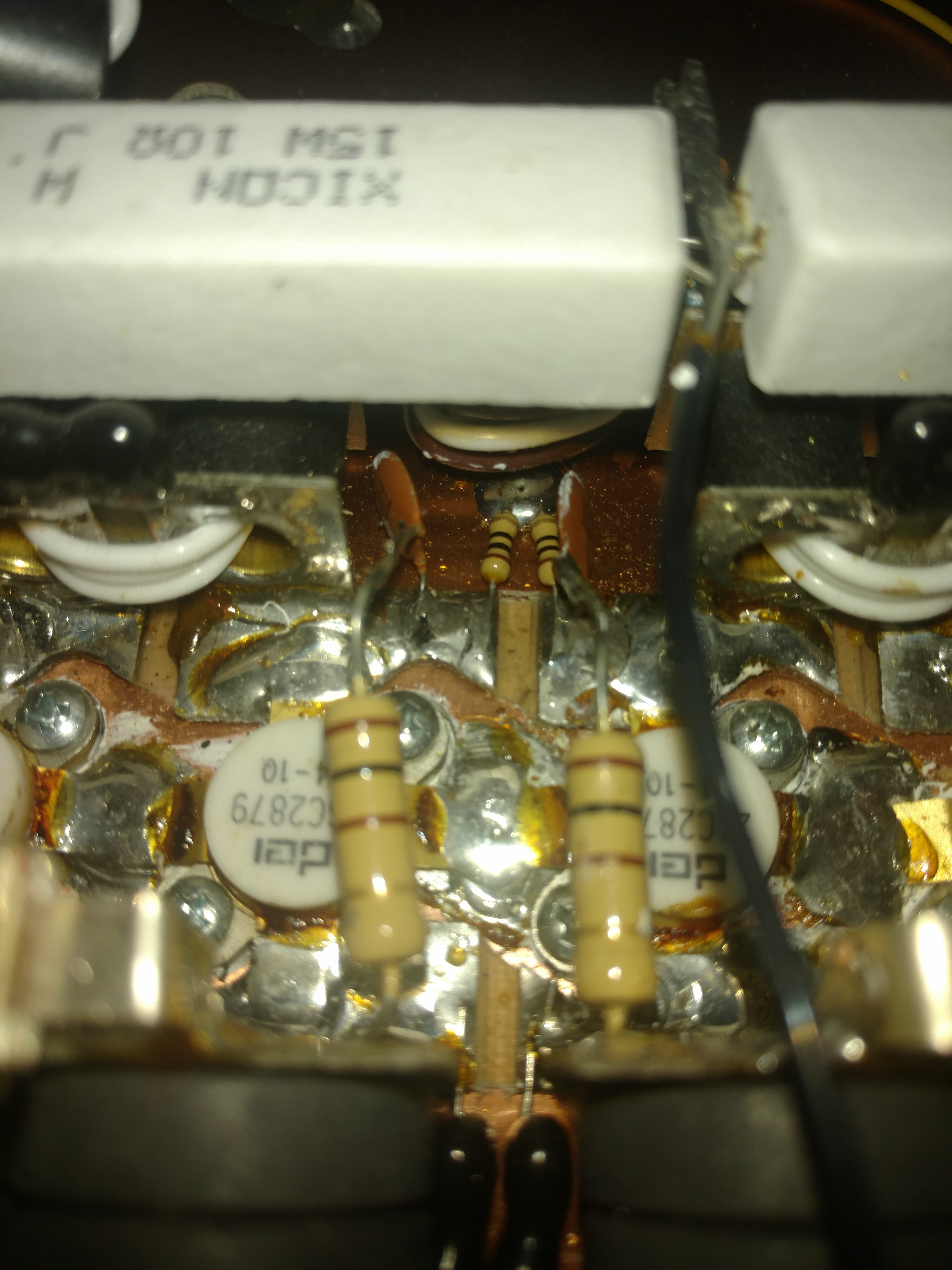

Ok I see what you mean. They appear to be ok. I have heard of the ten ohm smoke but didn't know what it was. Haha.

  • Like
Reactions: 2NC995
Gotcha - not meaning to send you on a wild goose chase, lol. I’ve managed to blow up a couple amps (doing stuff I shouldn’t have been) and the little 10ohm was a tattle-tale every time.
Haha, no problem at all on the goose chase. I appreciate you taking a look and giving your input. I wonder if the transistor can go open without burning the 10 ohm?

I like posting pictures because I hate reading stuff without them and the pictures help to put everybody on the same page. Looking for a set of HG and will probably change all 4. Do all 4 need to be matched or just the pairs?

My opinion on that won’t go far...haha.

Back in the Toshiba days, I never replaced anything but the offending transistor and I didn’t have any issues.

I don’t believe I’ve ever owned an amplifier with an all matched set...and I highly doubt my DX500 has them.

That said, DEIs and HGs probably aren’t as consistent as the Toshibas were. If you were going to do any matching, I suppose a matched quad is what you’d really want...any difference in the two sections would be felt across that combiner resistor.

  • Like
Reactions: Shadetree Mechanic
Being selfish again...but what kind of power does the amp show with ~60w pep input on SSB?
It was doing about 450 average and 600 peak on my Autek WM-1. I think someone built a 16 pill from those plans and he had to do some more work to get it going. I don't remember if it was the combiners or transformers or what. There was a thread on it but I didn't think to link it to the plans thread.

Shadetree, typically when that combiner resistor fails its due to output issue or SWR. Considering that you antenna SWR is likely fine, I would look into not replacing the 2w with a 5w resistor , but more likely your issue is that ceramic disc capacitor failed creating a matching issue on output. You will likely have to replace that and preferably tune the output with a capacitance tube that offers variable Capacitance. Not sure what Voltage rating is on that cap but, my guess that's the culprit . I wouldn't cover underlying issue with bigger resistor . GL

Shadetree, typically when that combiner resistor fails its due to output issue or SWR. Considering that you antenna SWR is likely fine, I would look into not replacing the 2w with a 5w resistor , but more likely your issue is that ceramic disc capacitor failed creating a matching issue on output. You will likely have to replace that and preferably tune the output with a capacitance tube that offers variable Capacitance. Not sure what Voltage rating is on that cap but, my guess that's the culprit . I wouldn't cover underlying issue with bigger resistor . GL

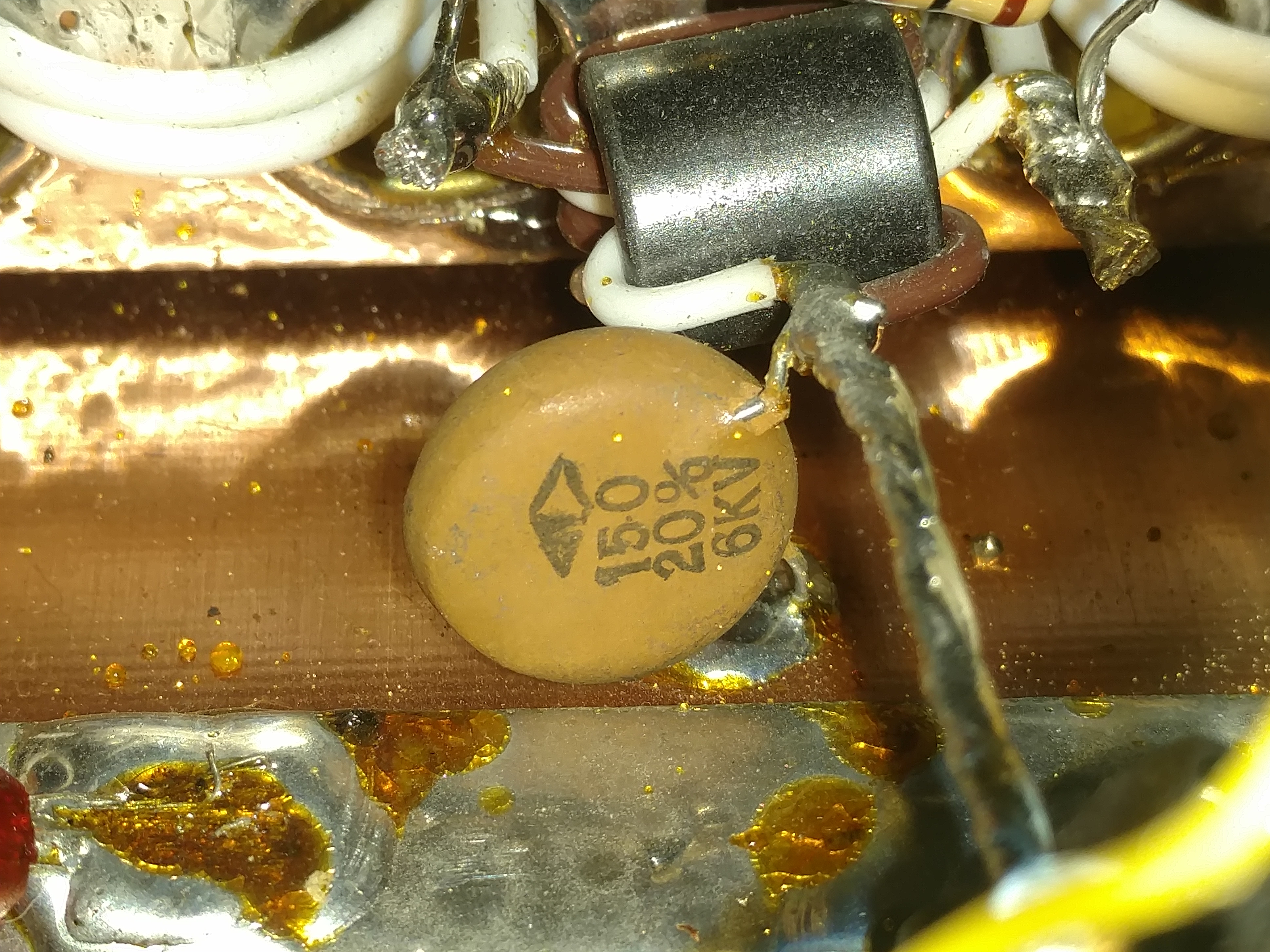

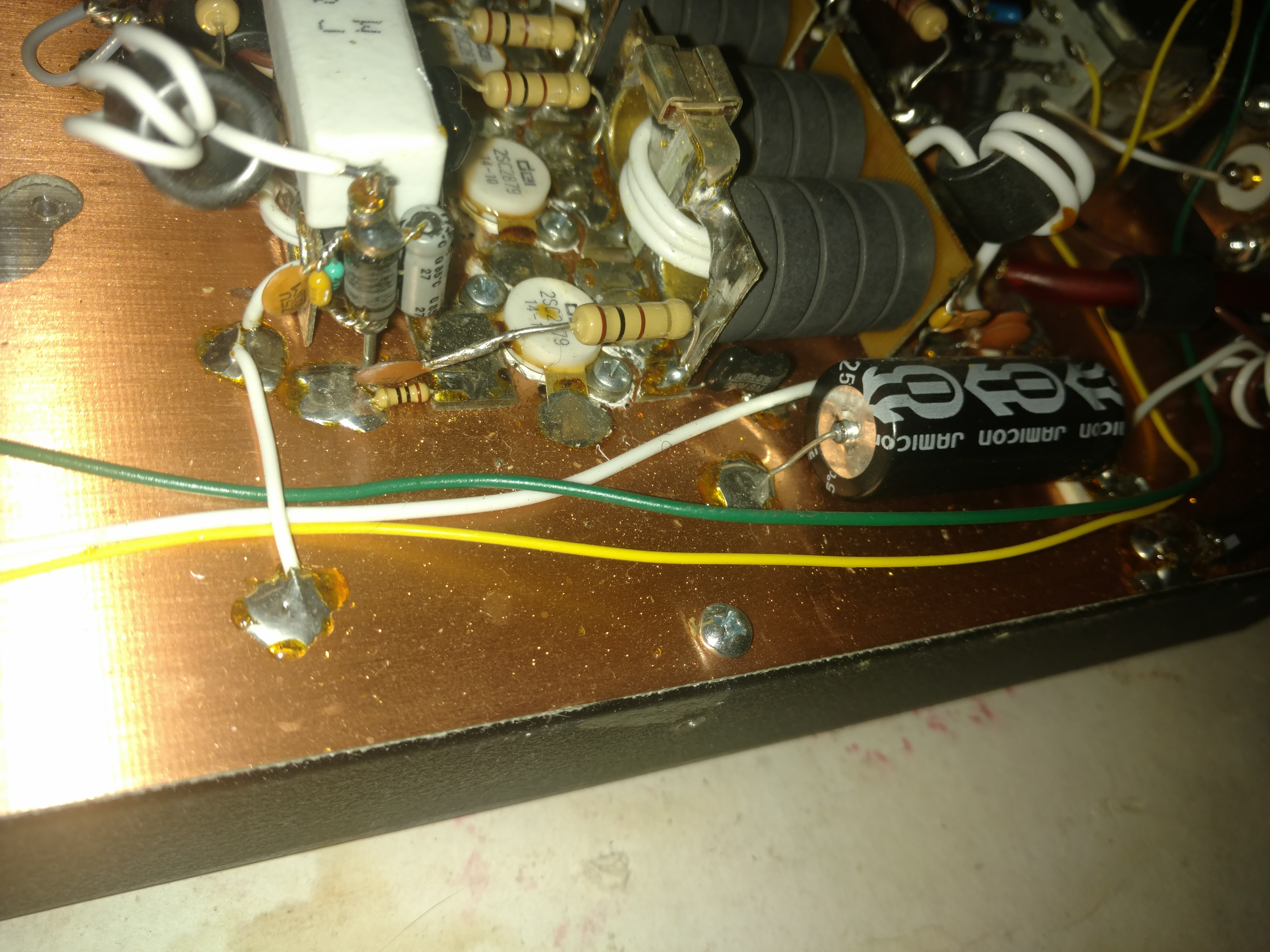

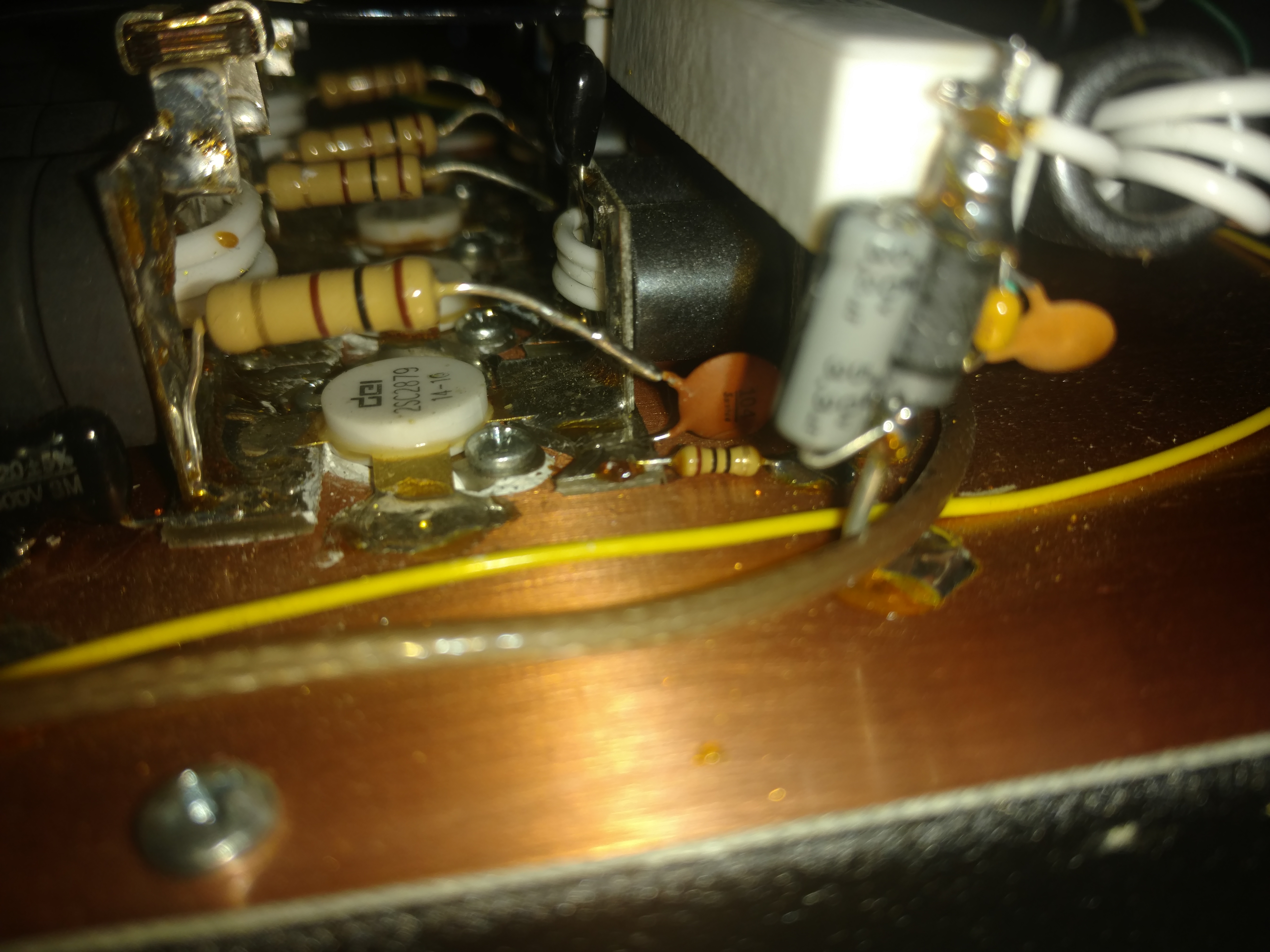

Thanks for your input 44, I thought that I would see the trombone tube capacitor when I took the lid off and was surprised that it didn't have one. I will have to pull the disk capacitor out and check it. Would the output be tuned for peak output like a tube amp?

  • Like
Reactions: 2NC995
The brass trombone cap is generally used on 6 pills and larger. It is part of the LC circuit that tunes the combined 2 or 4 pill sections.

I have saw some dud pills not burn the 10 ohm resistors from collector to ground. I would lift the tabs on each one and test them. I would also check the caps as 44 mentioned.

Those big sandbar resistors are part of the bias circuit.

You are correct about the balancing resistors. They should not heat up. If they do, there is an imbalance. A 5w resistor might make it run. When I reworked my 16 pill I used half watt resistors and hammered if for a few minutes. Then touched each resistor with a dab of heatsink compound on my finger to make sure they weren't. After that I put the 2 watts back on.

I am anal about balance. Matched pills and hand picked caps that test the same. With the price of Toshiba 2879s we have to be less picky or move on. Fortunately I have all the pill amps I'll ever need.

I've also heard the non Toshiba's tune differently and most builders just keep connecting the dots and use the same value caps. I haven't played with any so I can't say.
