RADIO
MODIFICATIONS
DX45MP
Frequency Conversion
Channel
Chart (After Modification)
Extended
10-Meter Frequency Conversion (28.000 - 29.655MHz)
FC347
Frequency Counter Wiring Diagram to a DX45MP
ALIGNMENT
PROCEDURES
PLL
Alignment
Transmitter
Alignment
Receiver
Alignment
Alignment Locations
SEMICONDUCTOR
INFORMATION
Semiconductor
Datasheets
DIAGRAMS
Schematic
Diagram Main
(Feb. 23, 2006)
EL
Driver Schematic (EPT91V130Z)
ECHO
PCB Schematic (EPT0SSB51J)

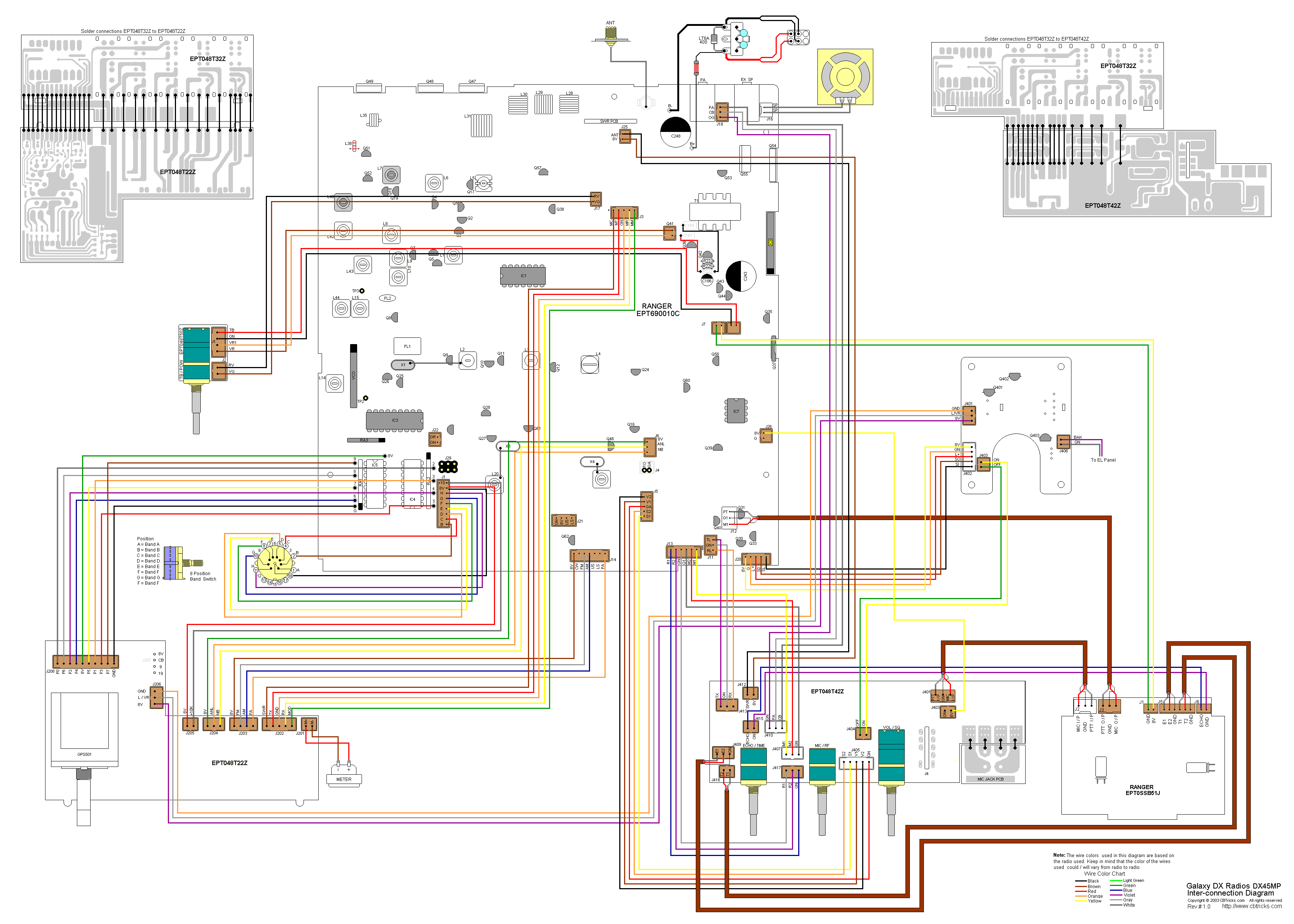

DX45MP
Inter-connection Diagram
DX45MP
Inter-connection Diagram
PCB Layouts and
Parts
Main PCB Layout
(EPT690010C)
VCO
PCB (EPF000210Z)
Dimmer PCB
(EPT091V40A) Early Production
Dimmer PCB
(EPT091V41A) Current Production
EL Driver
PCB (EPT91V130Z)
ECHO PCB (EPT0SSB51J)
SWR PCB (EPT360042Z)
Channel Selector
PCB (EPT48T20Z) Early Production
Channel
Selector PCB (EPT48T22Z) Current Production
Display / Switch
PCB (EPT048T31Z) Early Production
Display
/ Switch PCB (EPT048T32Z) Current Production
VR PCB (VOL
/ SQ, MIC / RF, ECHO / TIME) (EPT048T40Z) Early Production
VR PCB
(VOL / SQ, MIC / RF, ECHO / TIME) (EPT048T42Z) Current Production
VR PCB (TALKBACK
/ POWER) (EPT048T50Z)
Chassis, Miscellaneous
& Mechanical Parts
Miscellaneous
& Mechanical Parts
Mic Wiring Diagram
|
Stock
1- Shield
(Ground)
2- Yellow (Audio)
3- Red (Transmit)
4- White (Receive)
Astatic (4
wire)
1- Shield
2- White
3- Red
4- Black
Astatic (6
wire)
1- Shield & Blue
2- White
3- Red
4- Black
Yellow NC
Daiwa EM-500
Cobra CA Series
1- Shield & Black
2- Red
3- White
4- Blue
Galaxy DC-521S
(4 wire)
1- Shield
2- Yellow
3- Red
4- Black
Galaxy CB-660EI
1- Shield & Black
2- White
3- Red
4- Blue
Sadelta
1- Shield
2- White
3- Brown
4- Green
Turner
1- Shield & Red
2- White
3- Blue
4- Black
Yellow NC
|
or
